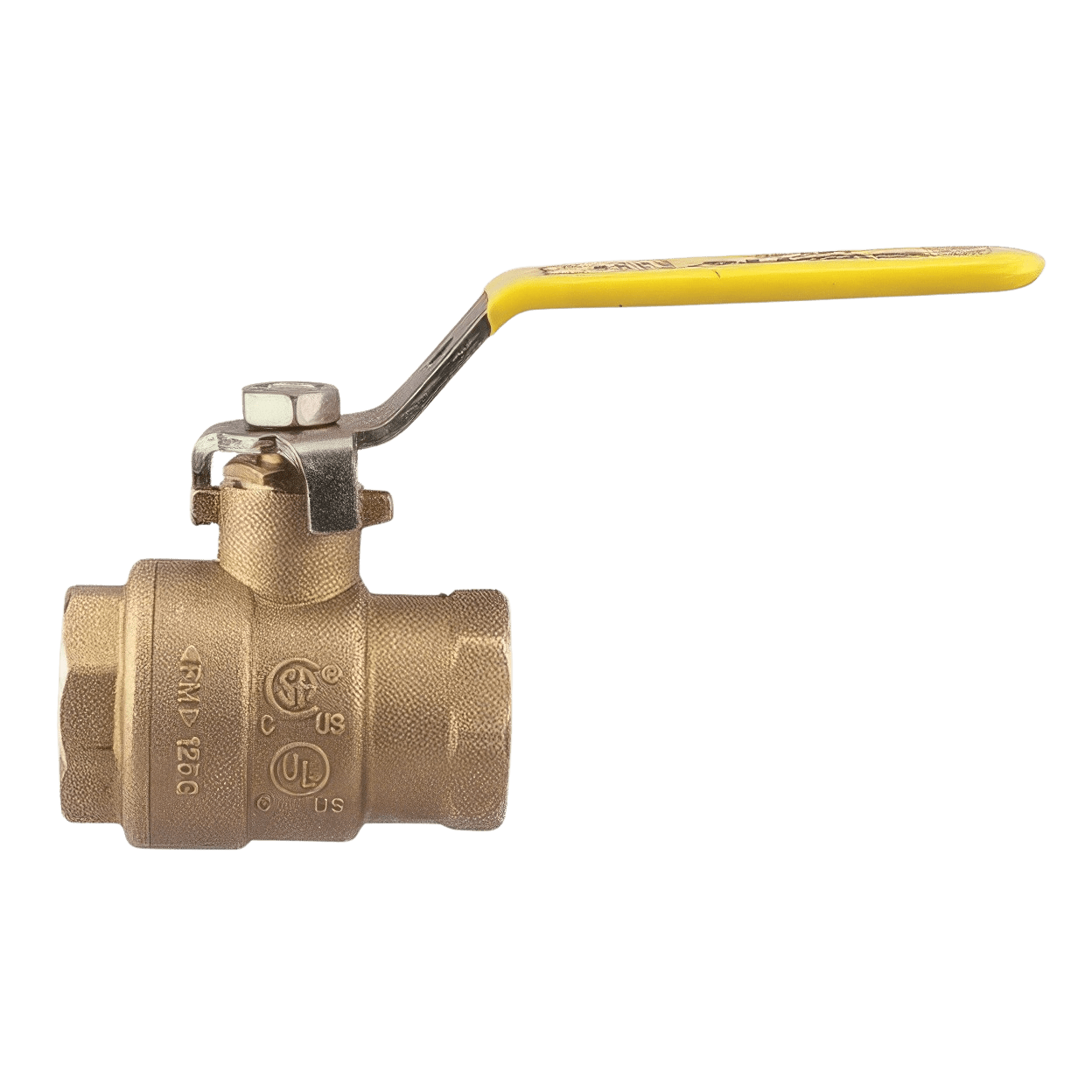

Watts 0555104 LFFBV-3C Full Port Brass Ball Valve, 1 inch, FIP x FIP

Product Description

The Watts Water Technologies LFFBV-3C Full Port Brass Ball Valve is designed for various plumbing applications. This valve features a nominal size of one inch with FIP x FIP connections. It can handle a maximum pressure of six hundred psi for non-shocking conditions and one hundred fifty psi for steam. This valve is compatible with water, oil, and gas media, providing versatility in different settings.

• Lead-free brass construction
• Temperature rating ranges from negative forty to four hundred degrees Fahrenheit
• Standard lever handle for easy operation

Product Highlights

This valve offers reliability and safety for commercial and industrial uses, ensuring compliance with standard plumbing codes.

Product Information

Standard Information

• Brand: Watts Water Technologies
• Part Number: 0555104

Technical Specifications

• Type: Full Port, Lead Free
• Nominal Size: 1 inch
• Connection Type: FIP x FIP
• Media: Water, Oil, and Gas
• Opening Size: 1 inch
• Body Material: Brass
• Seat: Virgin PTFE
• Ball Material: Chrome Plated Lead Free Brass
• Stem: Brass
• Packing: Virgin PTFE
• Construction: 2-Piece
• Actuation/Operator: Standard Lever Handle
• Temperature Rating: -40 to 400 Deg F
• Max. Steam Pressure: 150 psi WSP
