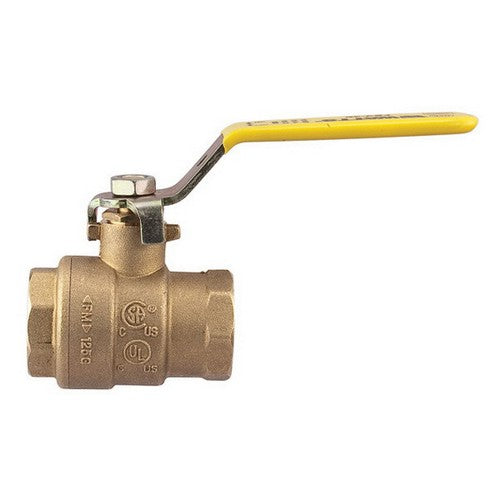

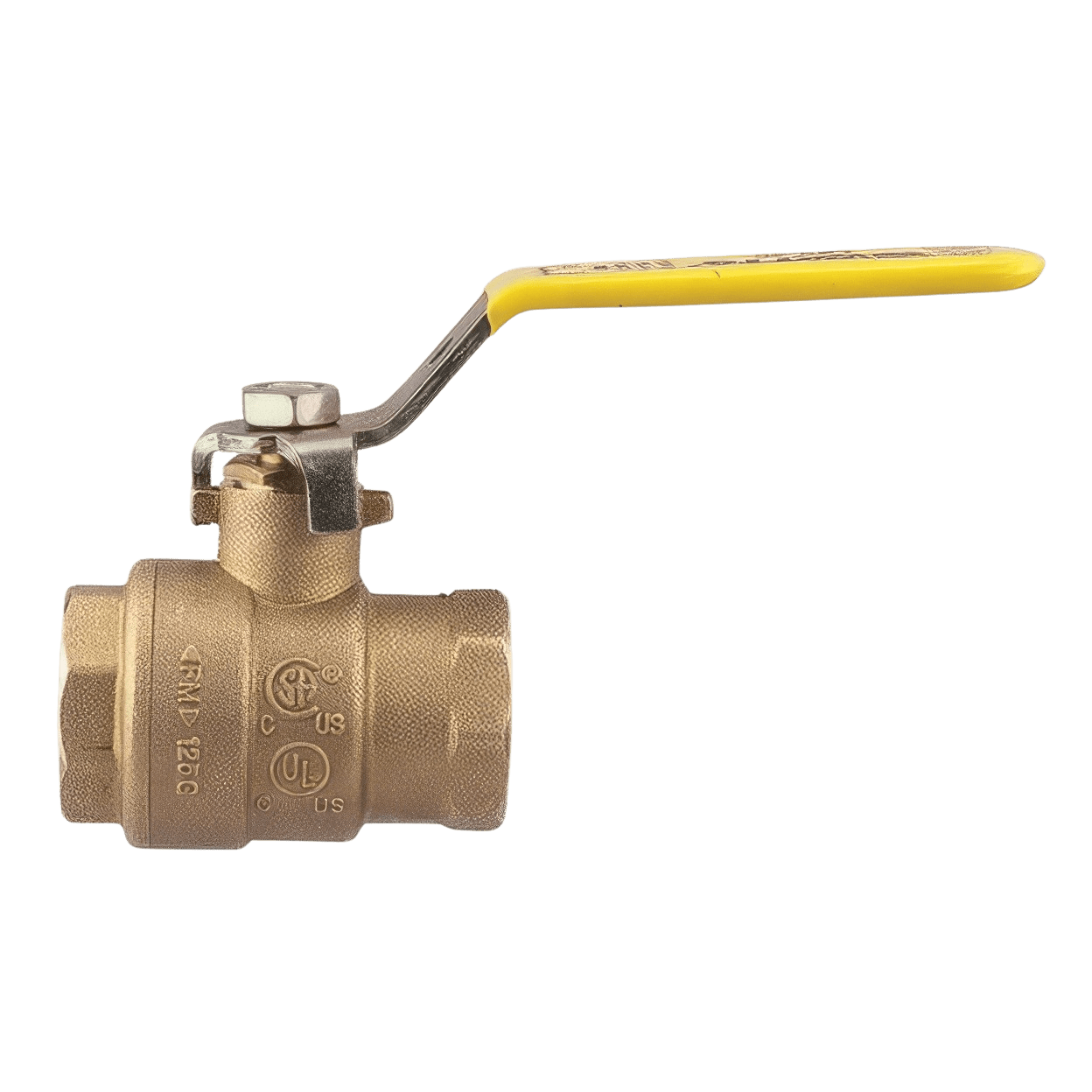

Watts 0555101 Full Port Brass Ball Valve, 3/8 inch, FIP x FIP

Product Description

The Watts LFFBV-3C Full Port Brass Ball Valve, MPN 0555101, is designed for use in various plumbing applications. This valve features a three-eighths inch nominal size with FIP x FIP connections. It is suitable for water, oil, and gas media and can withstand a maximum pressure of six hundred psi for CWP and one hundred fifty psi for steam.

• Lead-free construction for safety and compliance.
• Standard lever handle for easy operation.
• Temperature rated from minus forty to four hundred degrees Fahrenheit.

Product Highlights

This ball valve is ideal for commercial and industrial applications, ensuring reliable performance in controlling liquid and gas flow.

Product Information

Standard Information

• Brand: Watts Water Technologies
• MPN: 0555101

Technical Specifications

• Type: Full Port, Lead Free
• Nominal Size: 3/8 inch
• Connection Type: FIP x FIP
• Media: Water, Oil, and Gas
• Opening Size: 0.5 inch
• Body Material: Brass
• Seat: Virgin PTFE
• Ball Material: Chrome Plated Lead Free Brass
• Stem: Brass
• Packing: Virgin PTFE
• Construction: 2-Piece
• Actuation/Operator: Standard Lever Handle
• Temperature Rating: -40 to 400 Deg F
