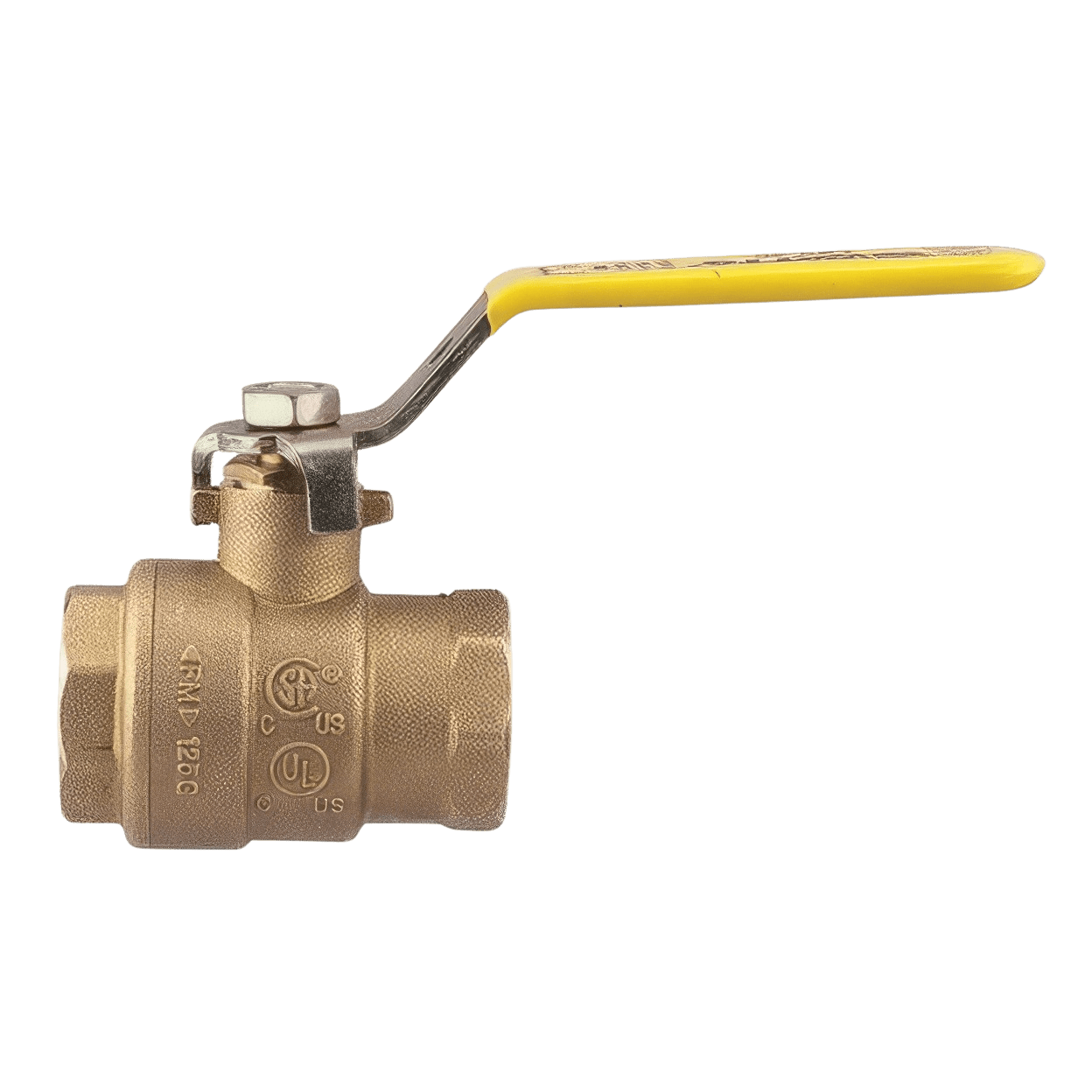

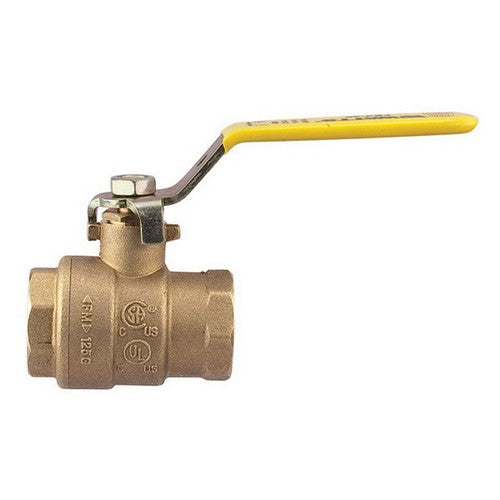

Watts 0555100 LFFBV-3C Full Port Brass Ball Valve 1/4 inch FIP x FIP

Product Description

The Watts 0555100 is a full port brass ball valve designed for reliable use in commercial and industrial settings. This valve features a nominal size of one-fourth inch and provides FIP x FIP connections. It can handle a maximum pressure of six hundred psi for cold water and one hundred fifty psi for steam applications. This valve is suitable for various media, including water, oil, and gas.

• Constructed from lead-free brass for safety
• Equipped with a standard lever handle for easy operation
• Temperature rating ranges from minus forty to four hundred degrees Fahrenheit

Product Highlights

This valve is part of the LFFBV-3C series, ensuring high performance for your plumbing needs. With its two-piece construction and adjustable stem packing gland, this valve is a reliable choice for effective shut-off capabilities.

Product Information

Standard Information

• Brand: Watts Water Technologies
• Part Number: 0555100

Technical Specifications

• Series: LFFBV-3C
• Type: Full Port, Lead Free
• Nominal Size: 1/4 inch
• Connection Type: FIP x FIP
• Media: Water, Oil and Gas
• Opening Size: 0.5 inch
• Body Material: Brass
• Seat: Virgin PTFE
• Ball Material: Chrome Plated Lead Free Brass
• Stem: Brass
• Packing: Virgin PTFE
• Construction: 2-Piece
• Actuation/Operator: Standard Lever Handle
• Temperature Rating: -40 to 400 Deg F
