Watts 0547116 Fbvs-3c 2 1/2

Product Description

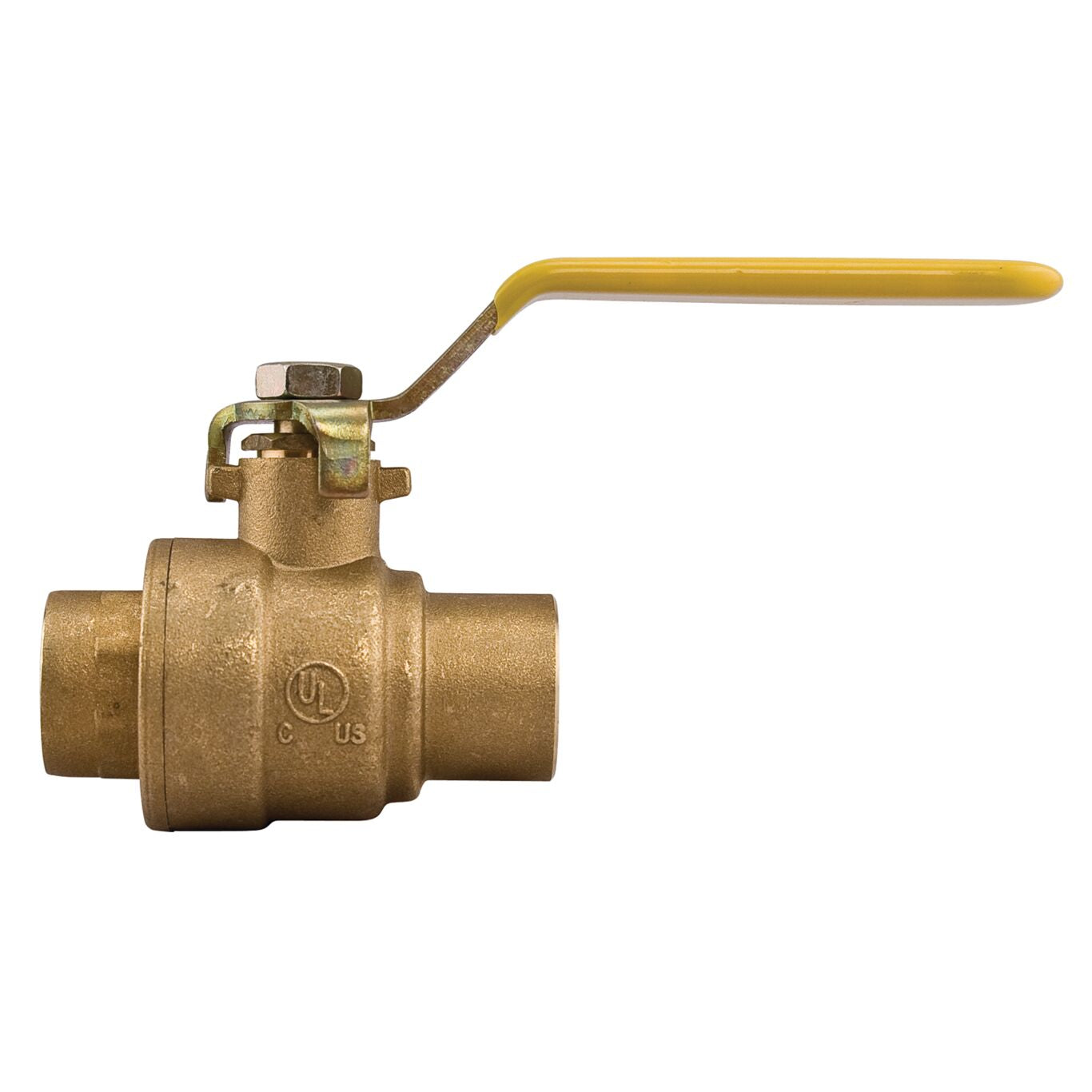

The WATTS 0547116 FBVS-3C is a 2-piece, full port, brass ball valve with a stainless steel ball and stem, designed for commercial and industrial applications involving a full range of liquids and gases. It features a bottom-loaded blowout-proof stem and virgin PTFE seats. The valve has a pressure rating of 600psi WOG and 150psi WSP.

• Used in commercial and industrial applications for a full range of liquids and gases
• Recommended for open/close applications
• Fluorocarbon elastomer stem O-ring prevents stem leaks

Product Highlights

This brass ball valve is suitable for various applications, offering durability and reliable performance with its full port design and robust construction.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0547116
• Country of Origin: Mexico

Technical Specifications

• Pressure Rating: 600psi WOG and 150psi WSP
• End Connections: Solder (FBVS-3C-SS), Female NPT (FBV-3C-SS)
• Ball & Stem Material: 304 Stainless Steel
• Seats: Virgin PTFE
• Product Type: Ball Valve
• Finish: Brass
• Width: 6.4"
• Height: 4.9"
• Depth: 12.8"
• Material: Brass
• Prop65 Warning: Lead
• Inlet Connection Size: 2-1/2 in
• Outlet Connection Size: 2-1/2 in
• Actuation: No
• Assembled Dry: No
• Balance Stop Plate: No
• Ball Material: Chrome Plated Brass
• Body Finish: Brass
• Body Material: Brass
• Brand: Watts
• Buy American Act Compliant: NO
• Control Type: Lever Handle
• Inlet Connection Type: Socket
• Inlet Thread Type: Does Not Apply To Product
• Lead Free: NO
• Maximum Temperature-Fahrenheit: 400
• Minimum Temperature - Celsius: -18.00
• Minimum Temperature-Fahrenheit: 0
• Operating Torque: Does Not Apply To Product
• Outlet Connection Type: Socket
• Outlet Thread Type: Does Not Apply To Product
• Part Number: 0547116
• Port Type: Full
• Seat Material: Virgin PTFE
• Series: FBV-3C
• Stem Packing Material: Virgin PTFE
• Stem Shaft Material: Brass
• Stem Type: Bottom Loaded Blowout Proof
• Thrust Washer Material: Virgin PTFE
• Valve Style: 2-piece
• WOG Rating: 600 PSI
• Inlet Size: 2 1/2"
• Inlet Type: Socket
• Lead: Present
• Max. Temp.: 400°F
• Mfr. Series: FBV-3C Series
• Min. Temp.: -40°F
• Minimum Temp.: 0°F
• Outlet Connection Thread Type: Socket
• Outlet Size: 2 1/2"
• Outlet Type: Socket
• Valve Design: Two Piece
• Washer Material: Virgin PTFE
