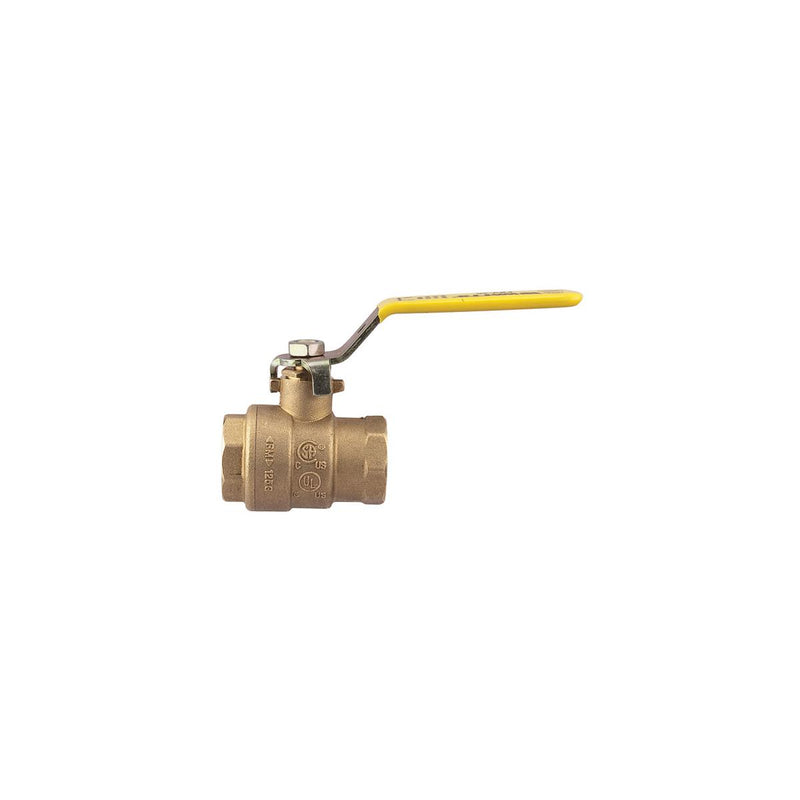

Watts 0547114 1 1/2 FBVS-3C Ball Valve

Product Description

Watts 0547114 Ball Valve is a durable two-piece valve designed for various applications. This valve features a solder end style and is ideal for controlling gas and liquid flow. It can handle a pressure rating of up to six hundred psi and operates effectively within a temperature range of negative forty to four hundred degrees Fahrenheit.

• Full port design
• Chrome plated brass ball
• Forged brass body

Product Highlights

This ball valve is suitable for both commercial and industrial applications, providing reliable operation.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• MPN: 0547114

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Material: Forged Brass
• End Style: Solder
• Nominal Size: 1-1/2 in
• Inlet to Outlet Length: 4-1/4 in
• Top to Inlet Center: 3-3/16 in
• Media: Gas/Liquids
• Pressure Rating: 600 psi
• Temperature Rating: -40 to 400 deg F
• Series: FBVS-3C
• Trim Material: Brass Stem and PTFE Seat
• Softgoods Material: Fluorocarbon/Virgin PTFE
• Domestic/Import: Import
• Port Type: Full
• Type: 2-Piece
