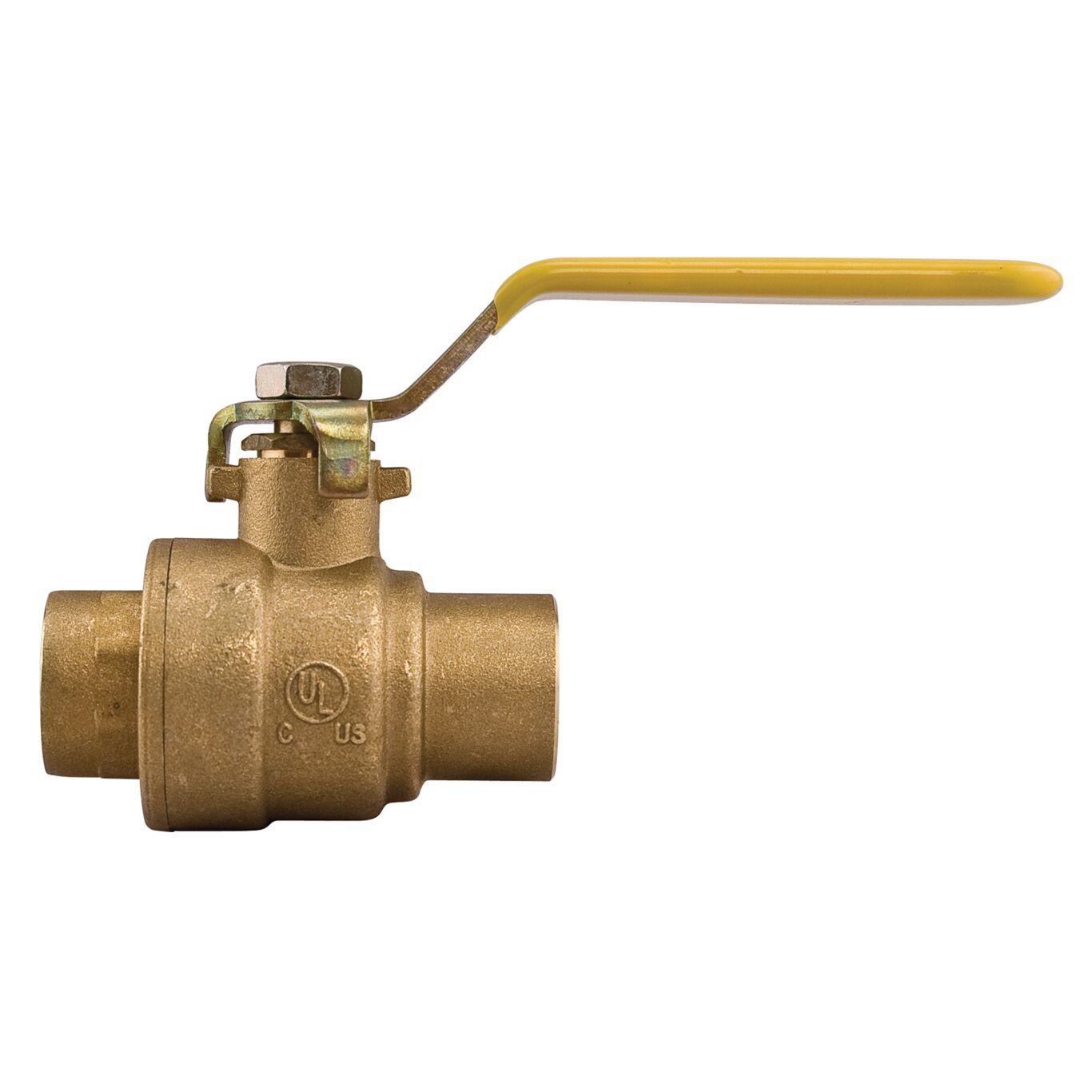

Watts 0547111 fbvs-3c 3/4 sweat br ball valve

Product Description

The Watts 0547111 FBVS-3C is a 3/4 inch 2-piece solder full port brass ball valve used in commercial and industrial applications for a full range of liquids and gases. It features a bottom-loaded blowout-proof stem and adjustable stem packing gland. Suitable for open/close applications.

• Fluorocarbon elastomer stem O-ring prevents stem leaks
• Adjustable stem packing gland
• PTFE stem packing seal, thrust washer, and seats

Product Highlights

This Watts ball valve has a chrome plated brass ball, a forged brass body, and a zinc plated carbon steel handle with vinyl insulator.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0547111

Technical Specifications

• Actuation Type: Lever Handle
• Applicable Standard: UL, MSS-SP-110, ISO 9001
• Application: Commercial, Industrial
• Ball Material: Chrome Plated Brass
• Body Material: Forged Brass
• End Connection: Soldered x Soldered
• End To End Distance: 2-11/16 Inch
• Handle Material: Zinc Plated Carbon Steel with Vinyl Insulator
• Inclusions Features: Bottom Loaded Blowoutproof Stem, Thrust Washer, Adjustable Stem Packing Gland, Brass Adapter, Fluorocarbon Elastomer Stem O-Ring
• Nominal Size: 3/4 Inch x 3/4 Inch
• Port Type: Full
• Pressure Rating: 150 PSI Non-Shock WSP, 600 PSI WOG
• Seal Material: PTFE
• Seat Material: Virgin PTFE
• Series/Model: FBVS-3C
• Stem Material: Machined Brass
• Temperature Rating: -40 to 400 Deg F
• Type: 2-Piece
• Inlet Connection Size: 3/4"
• Inlet Size: 3/4"
• Inlet Type: Socket
• Lead: Present
• Lead Free: No
• Max. Temp.: 400°F
• Outlet Size: 3/4"
• Outlet Type: Socket
• Stem Type: Bottom Loaded Blowout Proof
• Thrust Washer Material: Virgin PTFE
• Valve Design: Two Piece
• Wog (psi): 600 psi
