Product Description

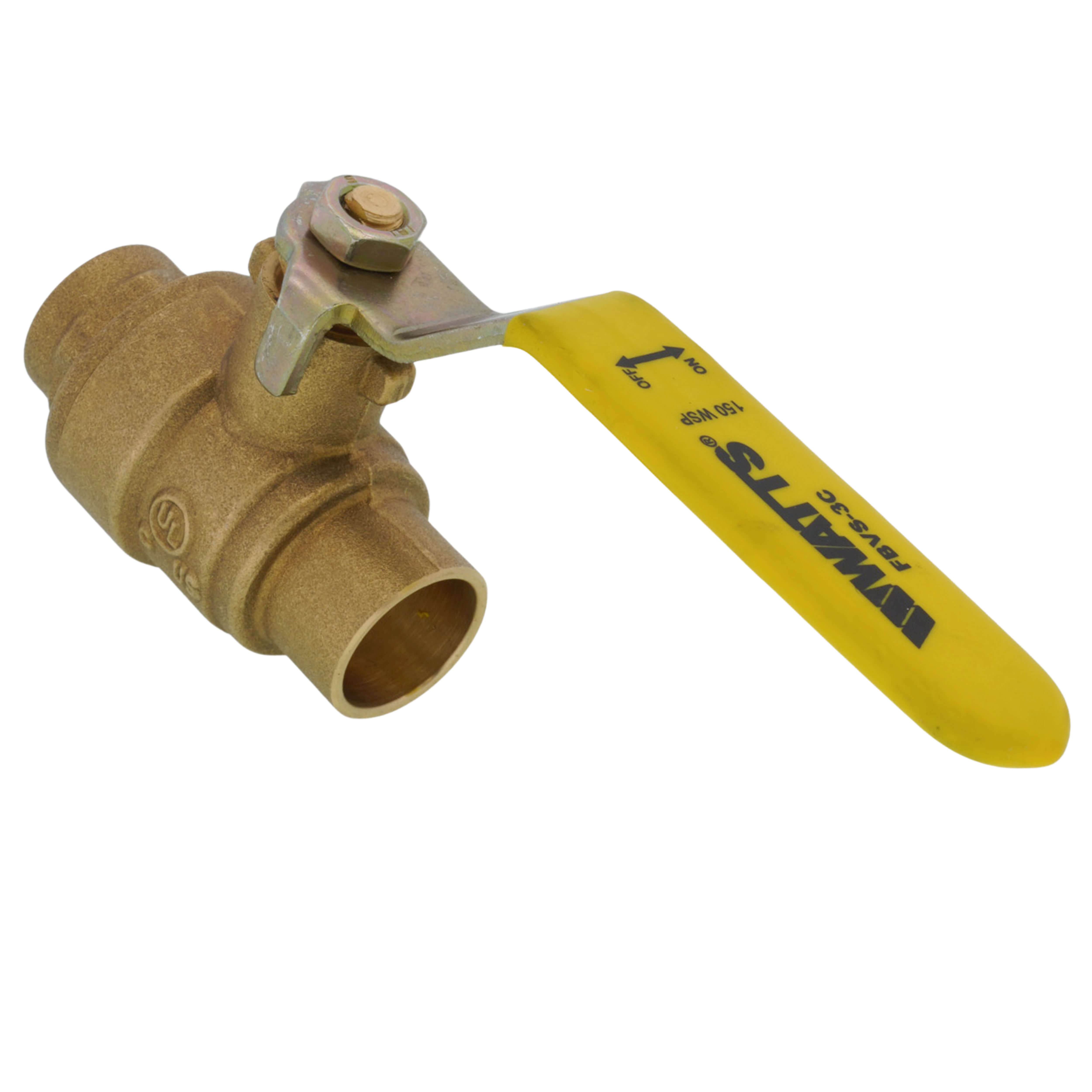

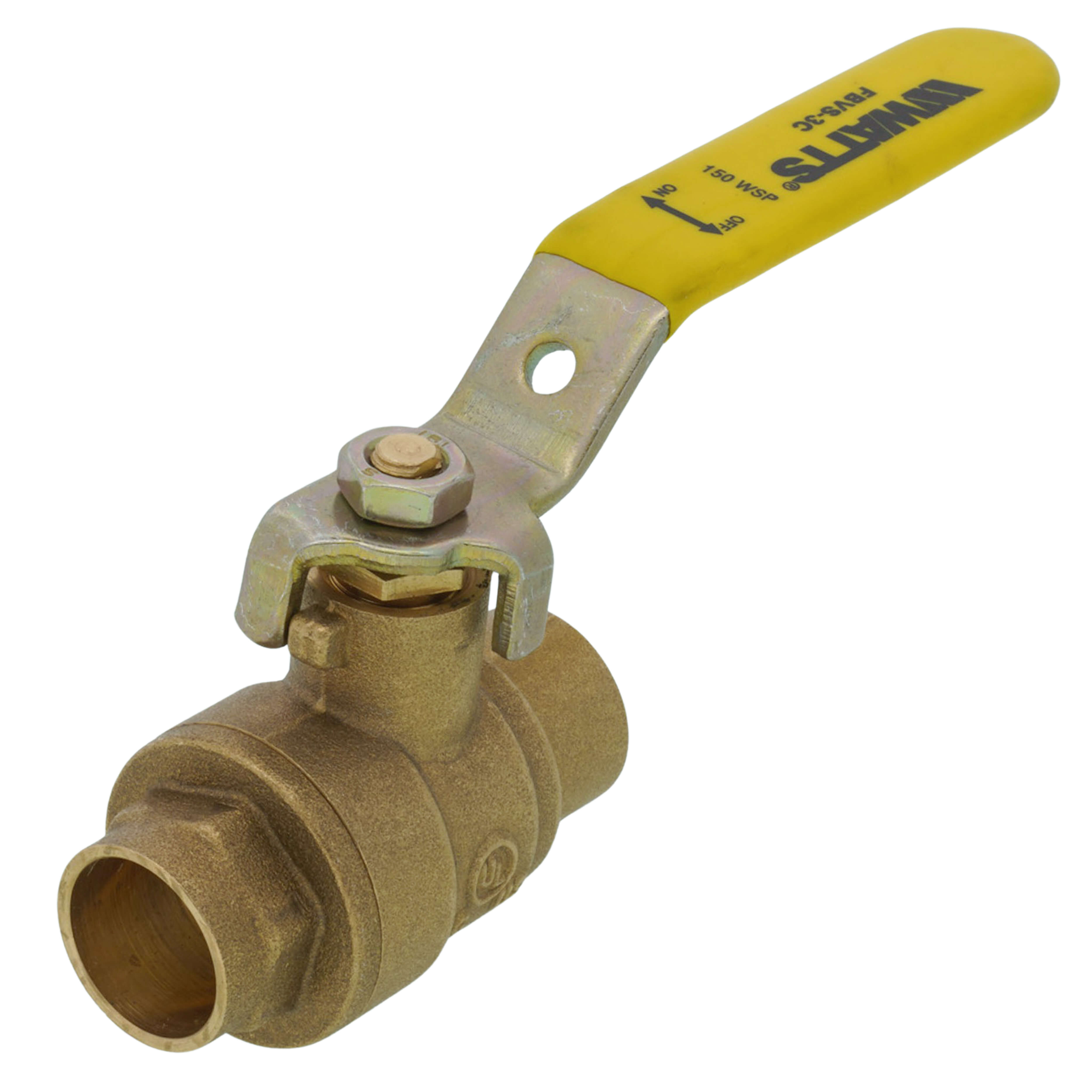

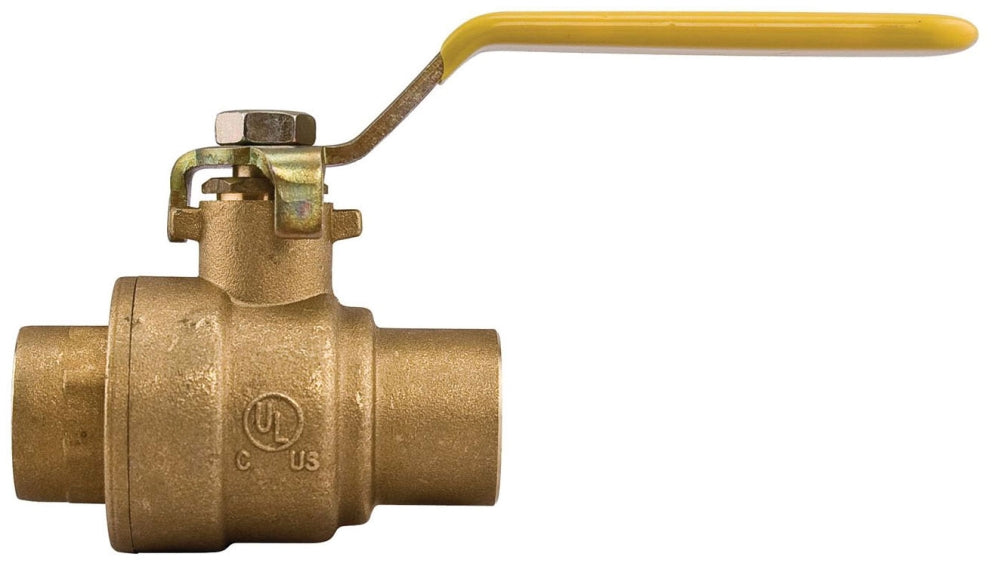

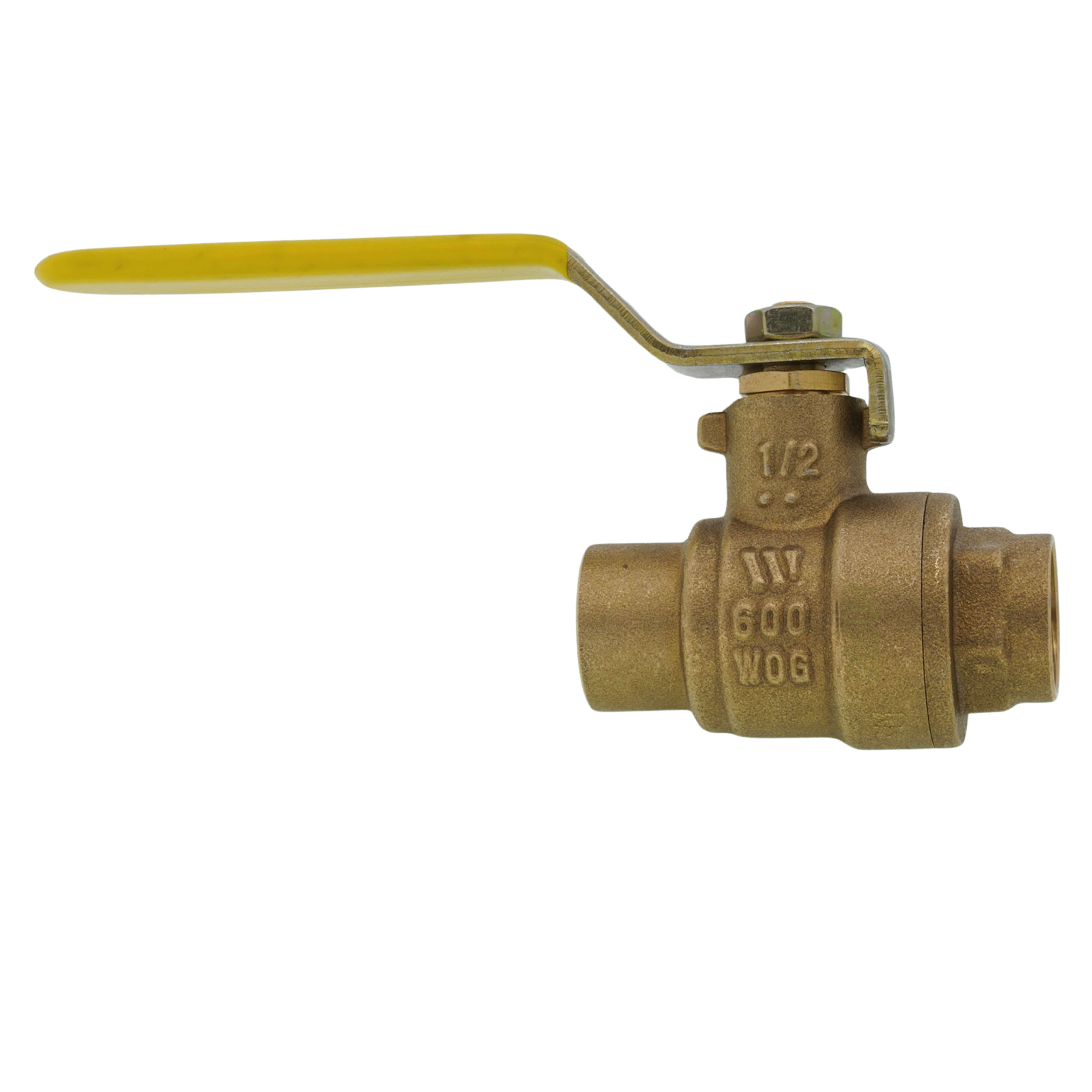

The Watts 0547110 Fbvs-3c is a 1/2 inch sweat brass ball valve designed for non-potable use only. This 2-piece ball valve features a lever handle for actuation and soldered end connections. Constructed with a forged brass body and a chrome-plated brass ball, it is suitable for commercial and industrial applications involving liquids and gases.
- Features a bottom-loaded blowout-proof stem.
- Equipped with virgin PTFE seats and seals.
- Temperature rating of -40 to 400 Deg F.
Product Highlights
This Watts ball valve is ideal for open/close applications, offering durability and reliable performance in various industrial settings.
Product Information
Standard Information
-
Brand: WATTS
-
Manufacturer Part Number: 0547110
-
Country of Origin: China
Technical Specifications
-
Actuation Type: Lever Handle
-
Applicable Standard: UL, MSS-SP-110, ISO 9001
-
Application: Commercial, Industrial, Liquid, Gas
-
Ball Material: Chrome Plated Brass
-
Body Material: Forged Brass
-
End Connection: Soldered x Soldered
-
End To End Distance: 2-1/16 Inch
-
Handle Material: Zinc Plated Carbon Steel with Vinyl Insulator
-
Inclusions Features: Bottom Loaded Blowoutproof Stem, Thrust Washer, Adjustable Stem Packing Gland, Brass Adapter, Fluorocarbon Elastomer Stem O-Ring
-
Nominal Size: 1/2 Inch x 1/2 Inch
-
Port Type: Full
-
Pressure Rating: 150 PSI Non-Shock WSP, 600 PSI WOG
-
Seal Material: PTFE
-
Seat Material: Virgin PTFE
-
Stem Material: Machined Brass
-
Temperature Rating: -40 to 400 Deg F
-
Type: 2-Piece
-
WOG: 600
-
Max Pressure (PSI): 150
-
Connection Method: Sweat
-
Valve Construction: 2 piece
-
Lead Free: No
-
Inlet Connection Size: 1/2 IN
-
Outlet Connection Size: 1/2 IN
-
Outlet Connection Type: Socket
-
Stem Type: Bottom Loaded Blowout Proof
-
Valve Style: 2-piece
-
Length: 2-1/16"
-
Connection Size: 1/2"
-
Water Connection: 1/2"
-
Water Connection Type: Sweat
-
Series: FBVS-3C
-
Opening Size: 0.5 inch
-
Packing: Virgin PTFE
-
Handle Type: Lever Handle
-
Construction: 2-Piece
-
Size: 1/2" x 1/2"
