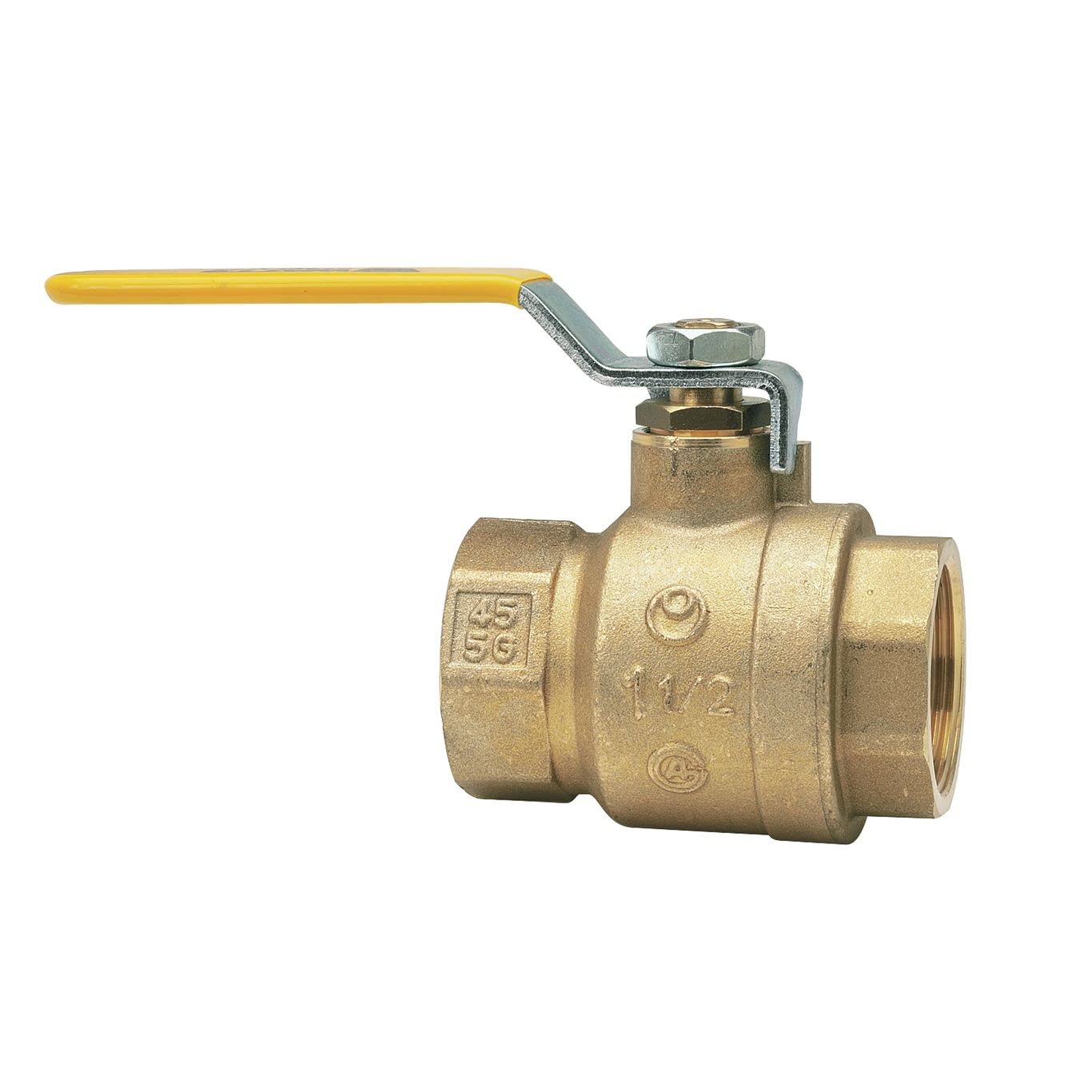

Watts 0547106 FBV-3C 2-Piece Full-Port Ball Valve 1-1/2 inches

Product Description

The WATTS 0547106 FBV-3C is a 1 1/2" 2-piece threaded full port brass ball valve used in commercial and industrial applications for a full range of liquids and gases. It features a bottom-loaded blowout-proof stem and adjustable stem packing gland. The valve also includes a chrome plated brass ball and steel handle. NSF approved.

• Full port design for optimal flow.
• Bottom-loaded blowout-proof stem for safety.
• Suitable for a full range of liquids and gases.

Product Highlights

This brass ball valve is ideal for commercial and industrial applications requiring a reliable shutoff.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0547106

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Finish: Brass
• Body Material: Brass
• Brand: Watts
• Buy American Act Compliant: NO
• Control Type: Lever Handle
• EAN: 098268335880
• Inlet Connection Size: 1 1/2 IN
• Inlet Connection Size-Metric: 40 MM
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Lead Free: NO
• Maximum Temperature-Fahrenheit: 400
• Minimum Temperature-Fahrenheit: -40
• Outlet Connection Size: 1 1/2 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPT
• Part Number: 0547106
• Port Type: Full
• Seat Material: Virgin PTFE
• Series: FBV-3C
• Stem Packing Material: Virgin PTFE
• Stem Shaft Material: Brass
• Stem Type: Bottom Loaded Blowout Proof
• Thrust Washer Material: Virgin PTFE
• Valve Style: 2-piece
• WOG Rating: 600 PSI
• Nominal Size: 1-1/2 inch
• End Style: Thread
• Media: Gas/Liquids
• Pressure Rating: 600 psi
• Softgoods Material: Fluorocarbon/Virgin PTFE
• Temperature Rating: -40 to 400 deg F
• Trim Material: Brass Stem and PTFE Seat
• Type: 2-Piece
• Connection Type: FIP x FIP
• Opening Size: 1.5 inch
• Seat: Virgin PTFE
• Stem: Machined Brass
• Construction: 2-Piece
• Packing: Virgin PTFE
• Inlet to Outlet Length: 3-1/2 in
• Top to Inlet Center: 3-3/16 in
• Domestic/Import: Import
