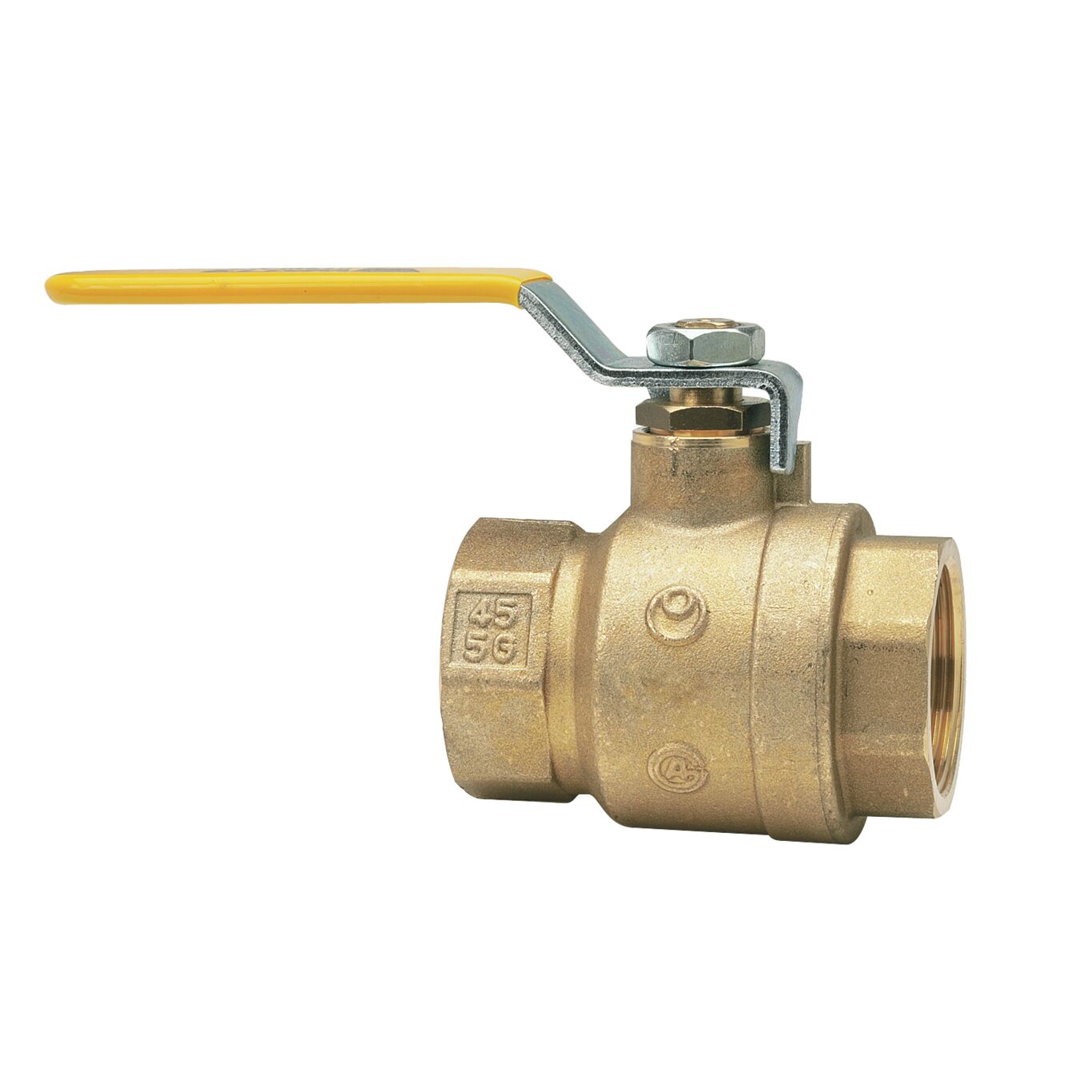

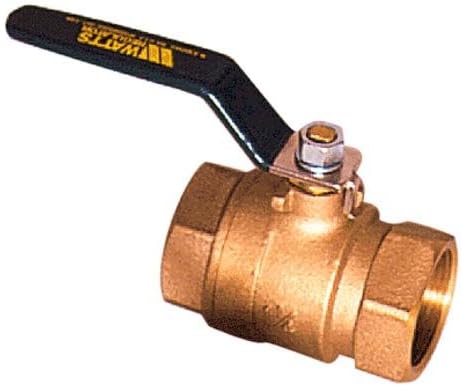

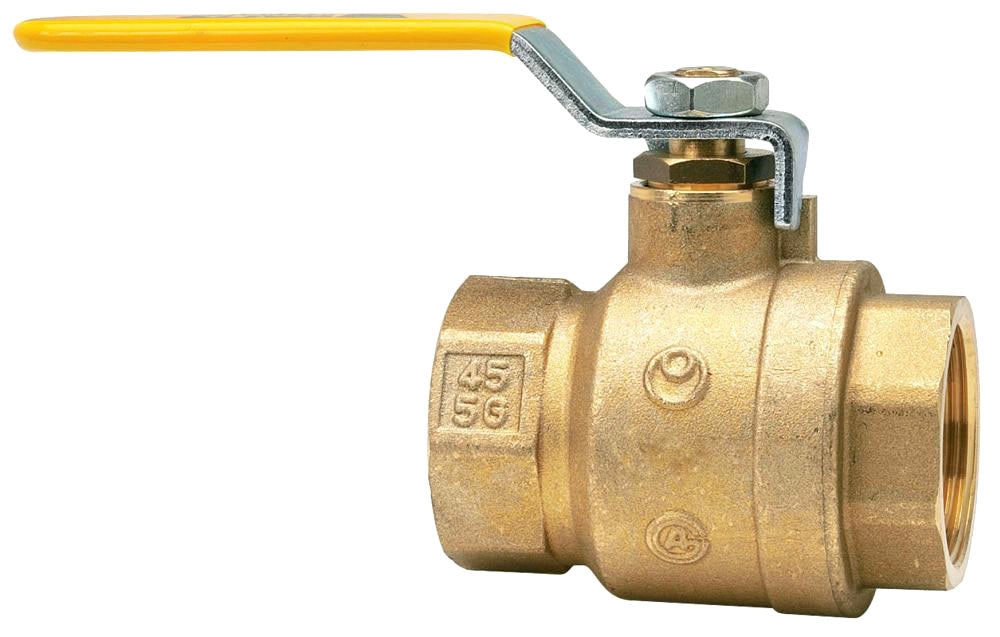

Watts 0547105 FBV-3C Ball Valve 1-1/4 inches

Product Description

The Watts 0547105 FBV-3C is a 1-1/4 inch 2-piece threaded full port brass ball valve used in commercial and industrial applications for a full range of liquids and gases. It features a bottom-loaded blowout-proof stem and virgin PTFE seat. This valve is suitable for gas, oil, and water applications.

• NSF approved
• Bottom loaded blowout proof stem
• Full port

Product Highlights

Durable brass ball valve with a full port design, ideal for various applications. Features a bottom-loaded blowout-proof stem and virgin PTFE seat.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0547105
• Country of Origin: MEXICO

Technical Specifications

• Shape: Inline
• Material: Brass
• Valve Type: Ball Valve
• Exterior Finish: Brass
• Inlet Connection Type: Full port
• Actuation: No
• Ball Material: Chrome Plated Brass
• Body Finish: Brass
• Brand: Watts
• Buy American Act Compliant: NO
• Control Type: Lever Handle
• Inlet Connection Size: 1 1/4 IN
• Inlet Connection Size-Metric: 32 MM
• Inlet Thread Type: NPT
• Lead Free: NO
• Maximum Temperature-Fahrenheit: 400
• Minimum Temperature - Celsius: -40.00
• Minimum Temperature-Fahrenheit: -40
• Outlet Connection Size: 1 1/4 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPT
• Part Number: 0547105
• Port Type: Full
• Seat Material: Virgin PTFE
• Series: FBV-3C
• Stem Packing Material: Virgin PTFE
• Stem Shaft Material: Brass
• Stem Type: Bottom Loaded Blowout Proof
• Thrust Washer Material: Virgin PTFE
• Valve Style: 2-piece
• WOG Rating: 600 PSI
• Nominal Size: 1-1/4 inch
• Connection Type: FIP x FIP
• Media: Water Oil and Gas
• Opening Size: 1.25 inch
• Stem: Machined Brass
• Construction: 2-Piece
• Packing: Virgin PTFE
• Actuation/Operator: Lever Handle
• Temperature Rating: -40 to 400 Deg F
• Domestic / Import: Import
• Softgoods Material: PTFE
• Inlet to Outlet Length: 3-3/16
• Manufacturer #: 0547105
• Orifice Size: 1-1/4
• Pressure Rating: 600 psi
• Trim Material: Virgin PTFE Seat
• Type: 2-Piece
• Ball/Stem Material: Brass
• Conn. Size: 1-1/4" Threaded
• Model #: FBV-3C
• Compliance/Notes: Harmonize Code 8481.80.1085
• Country of Origin: MEXICO
• Port: Full Port
• Size: 1-1/4 in
