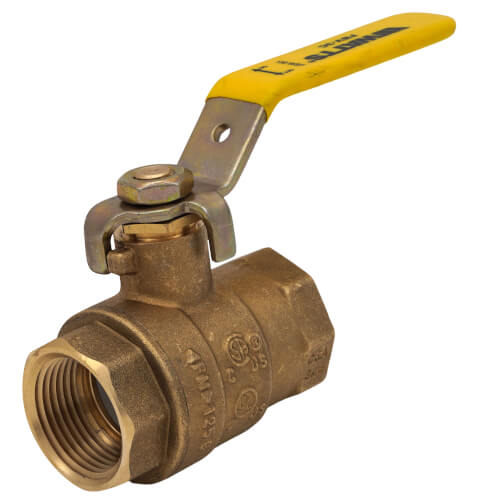

Watts 0547104 FBV-3C 1 in. Brass Full Port Threaded 600# Ball Valve

Product Description

The Watts 0547104 is a 1 inch full port brass ball valve designed for commercial and industrial applications. This valve allows the flow of liquids and gases without restrictions.

• 2-piece design for easy installation and maintenance.
• Threaded end connections compatible with standard fittings.
• Rated for a maximum pressure of six hundred psi.

Product Highlights

This ball valve is suitable for various applications requiring fluid control and is ideal for HVAC systems, plumbing, and other industrial uses.

Product Information

Standard Information

• Brand: Watts
• Manufacturer Part Number: 0547104

Technical Specifications

• Application: Commercial and Industrial Applications
• Body Material: Forged Brass
• End Style: Thread
• Media: Gas/Liquids
• Nominal Size: 1 in
• Pressure Rating: 600 psi
• Temperature Rating: -40 to 400 degrees Fahrenheit
• Series: FBV-3C
• Trim Material: Brass Stem and PTFE Seat
• Inlet to Outlet Length: 2-13/16 in
• Top to Inlet Center: 2-5/8 in
• Standards/Approvals: ASME B16.33/B16.44, CSA Certified, FM Approved, MSS-SP-110 Compliant, UL Listed
