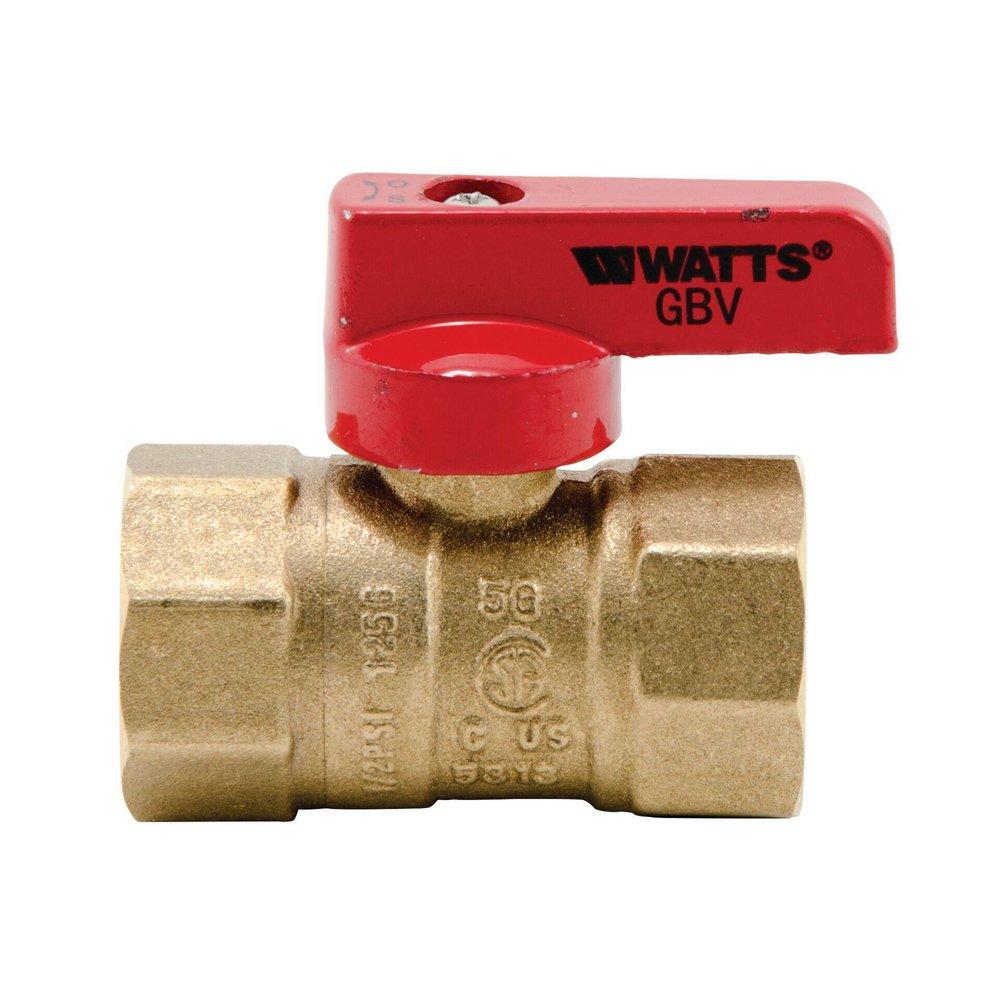

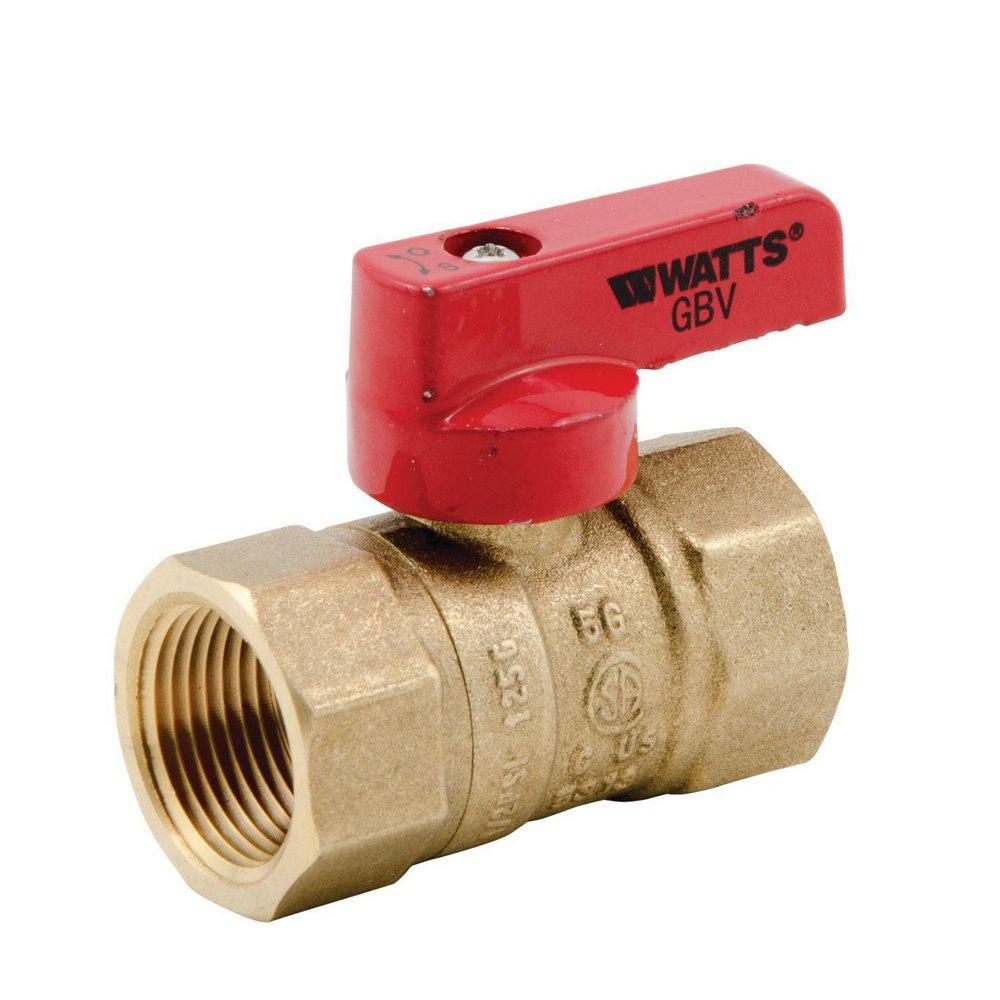

Watts 0545005 Series GBV 3/4 in. Brass FNPT T-Handle Gas Ball Valve

Product Description

The Watts 0545005 Series GBV is a reliable gas ball valve designed for use in residential and commercial applications. It features a three-quarter inch nominal size with female NPT connections. The T-handle actuator allows for easy operation, making it suitable for controlling natural gas and LP gas flow.

• Two-piece brass body construction
• UL approved for use with gas at a pressure rating of up to five PSI
• Temperature range from negative twenty to one hundred twenty-five degrees Fahrenheit

Product Highlights

This valve provides a durable solution for various gas applications.

Product Information

Standard Information

• Brand: Watts Regulator Company
• MPN: 0545005

Technical Specifications

• Nominal Size: 3/4 inches
• Pressure Rating: 5 psi
• Temperature Rating: -20 to 125 degrees F
• Flow Rate: 790 cfh
• Inlet to Outlet Length: 2-7/16 inches
• Top to Inlet Center: 1-7/16 inches
• Ball Material: Brass
• Body Material: Brass
• Softgoods Material: PTFE
