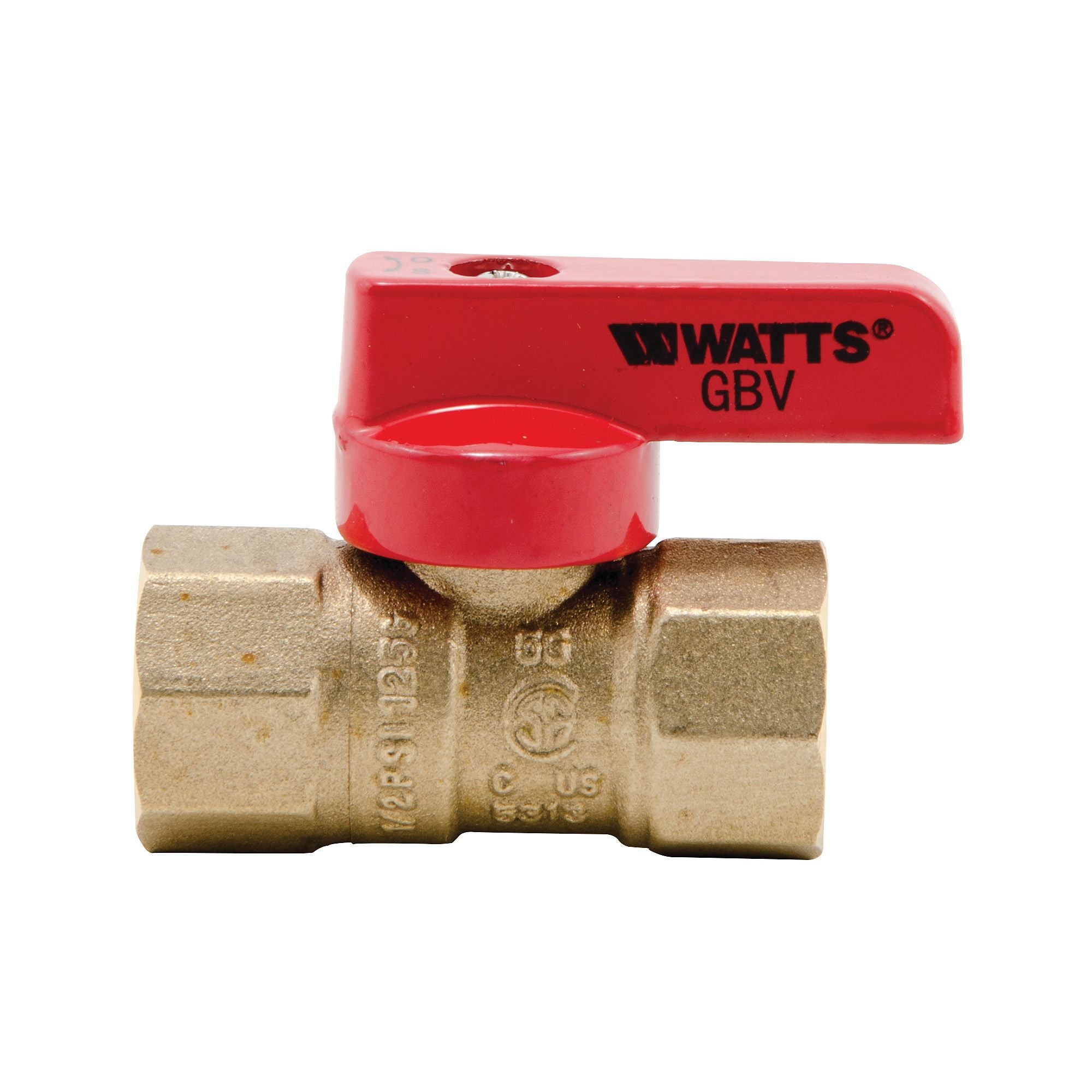

Watts 0545003 1/2 GBV 2-Piece Gas Ball Valve

Product Description

The Watts 0545003 is a 1/2 inch two-piece gas ball valve made of brass. This valve is designed specifically for natural gas and LP gas applications in both residential and commercial settings.

• Brass body construction ensures reliability and durability.
• Features NPT female connections and a T-handle for easy operation.
• Can handle a maximum working pressure of 5 PSI and a temperature range from -20 to 125 degrees Fahrenheit.

Product Highlights

This valve is suitable for a variety of applications, including in-house and indoor piping systems. It offers a flow rate of 295 cubic feet per hour, making it efficient for gas delivery.

Product Information

Standard Information

• Brand: Watts Regulator Company
• Part Number: 0545003

Technical Specifications

• Type: 2-Piece
• Nominal Size: 1/2 inch
• Media: Gas
• Actuator Type: T-Handle
• Flow Rate: 295 cubic feet per hour
• Pressure Rating: 5 PSI
• Temperature Rating: -20 to 125 degrees Fahrenheit
• Inlet to Outlet Length: 2-3/16 inches
• Top to Inlet Center: 1-3/8 inches
• Body Material: Brass
• Trim Material: Brass Stem and PTFE Seat
