Watts 0472034 Push-to-connect Tube Fitting 1/2 in Female Npt

Product Description

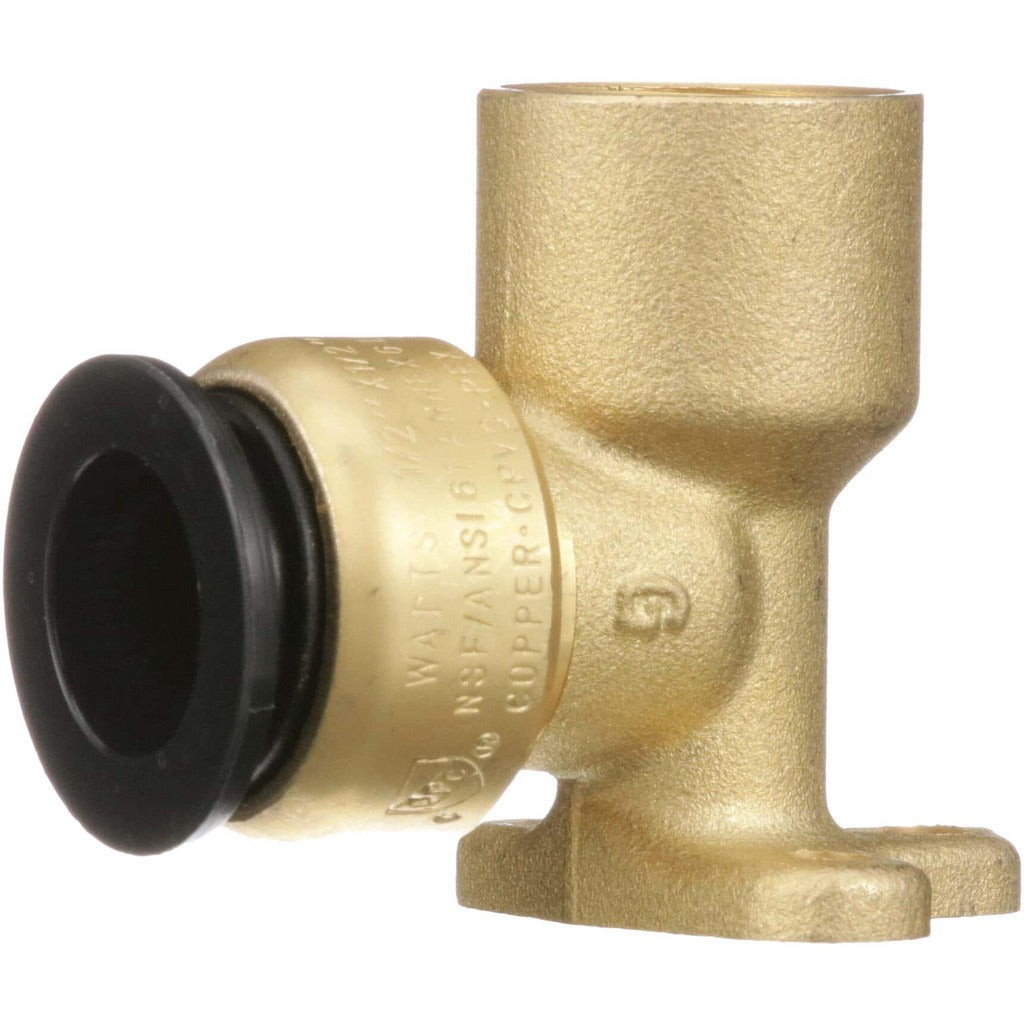

The WATTS 0472034 is a push-to-connect tube-to-female NPT tube fitting designed for fast, tool-free connections in plumbing and fluid distribution systems. Constructed from lead-free brass with an EPDM O-ring seal, this fitting accepts 1/2 inch OD tubing and transitions to a 1/2 inch female NPT thread. It is rated to 250 psi working pressure, making it suitable for demanding residential and light commercial water supply applications. Licensed plumbers and pipefitters install this fitting where quick, reliable connections are required without soldering or compression tools. It meets a broad range of industry standards for potable water service.

This fitting is suited for general-purpose potable water plumbing in residential and commercial applications. It is commonly used in water supply lines, fixture connections, and retrofit installations where push-to-connect speed is an advantage. The female NPT end accommodates standard threaded pipe and valve connections. Its compact dimensions and lead-free brass construction make it a practical choice for installations governed by low-lead compliance requirements.

Key Features

• Push-to-connect design allows tool-free tube insertion for faster installations
• Lead-free brass construction meets low-lead potable water requirements
• Rated to 250 psi maximum working pressure
• EPDM O-ring provides a reliable, long-lasting seal
• 1/2 inch OD tube inlet with 1/2 inch female NPT outlet
• Certified to NSF/ANSI 61-G, NSF/ANSI 14, IAPMO ASSE 1061, ASTM F877, and FDA standards

Compatibility

Designed for general-purpose potable water plumbing systems using 1/2 inch OD tubing with 1/2 inch female NPT threaded connections. Compatible with systems requiring NSF/ANSI 61-G and low-lead compliance.

Installation Notes

Installation should be performed by a licensed plumber in accordance with applicable local plumbing codes and the International Plumbing Code (IPC). Shut off the water supply and relieve system pressure before making or breaking any connection. Ensure tubing ends are cut cleanly and squarely and are free of burrs before insertion into the push-to-connect fitting. Do not exceed the rated working pressure of 250 psi.
