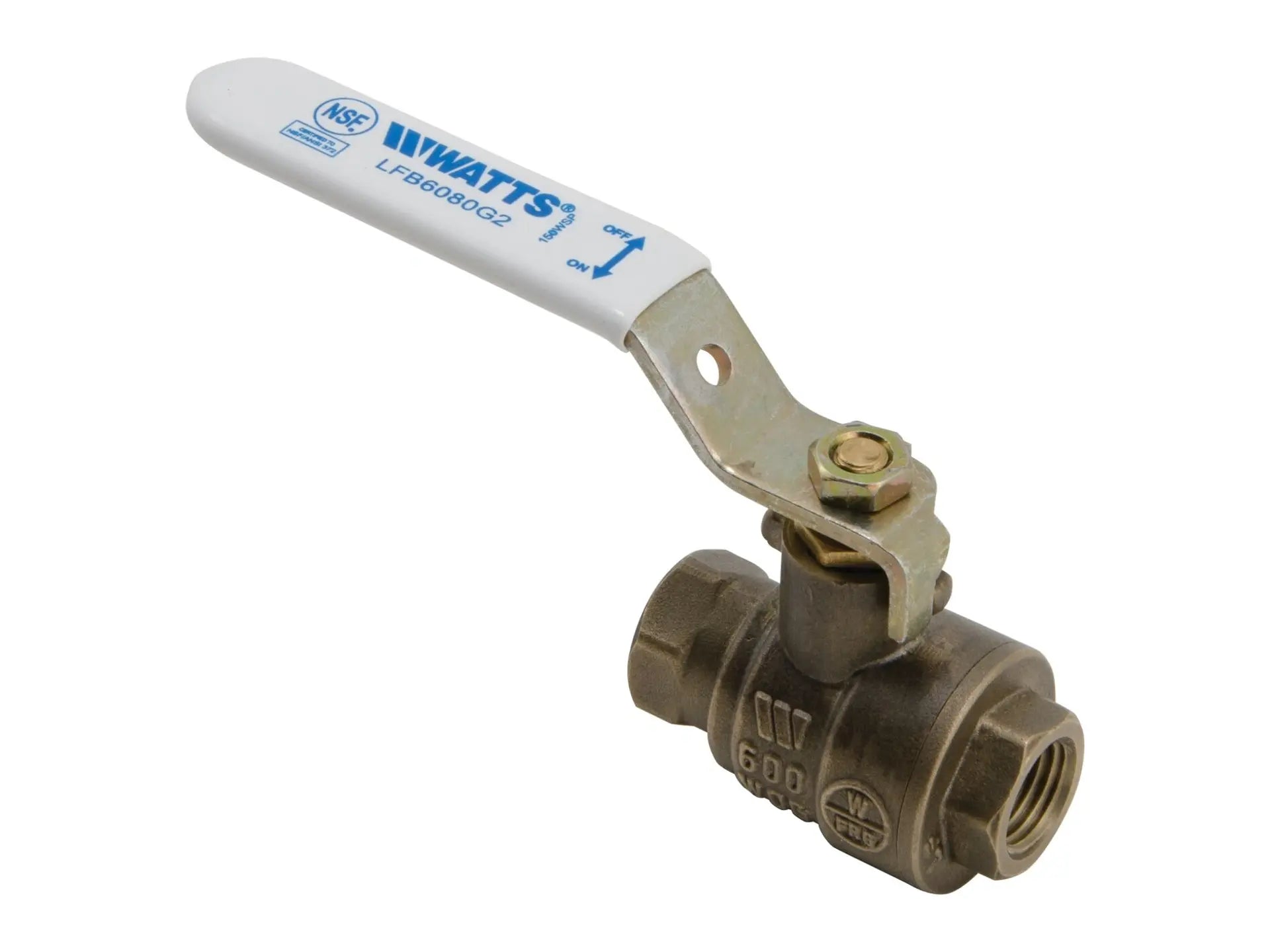

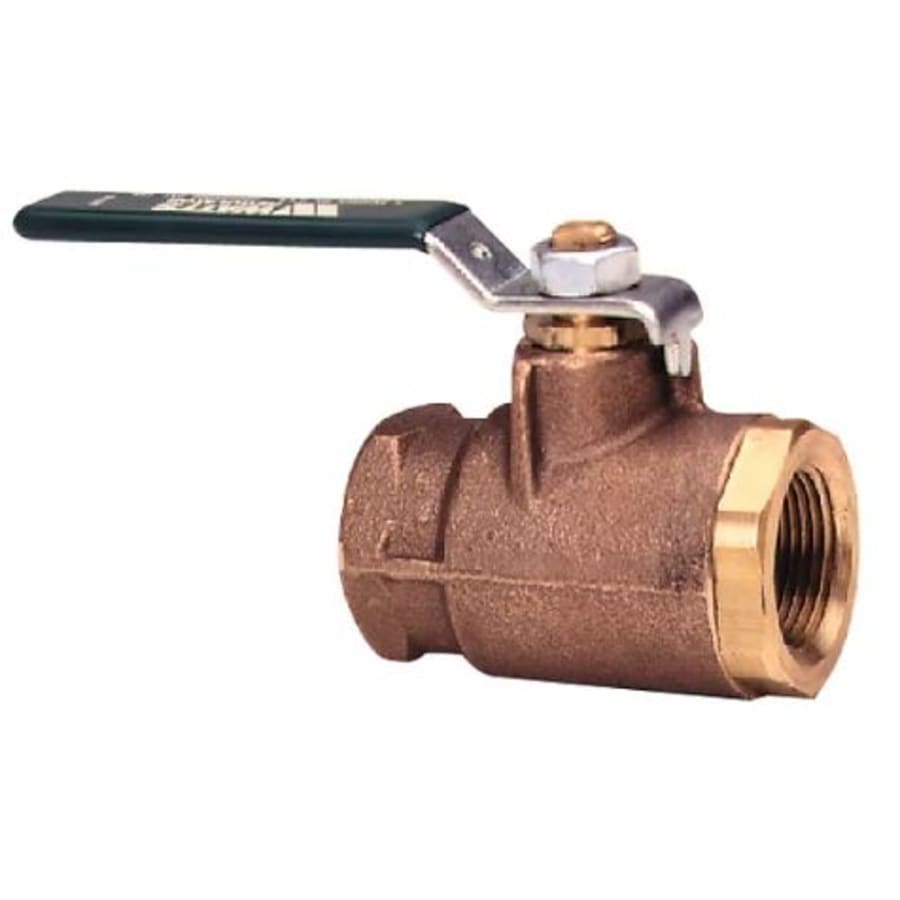

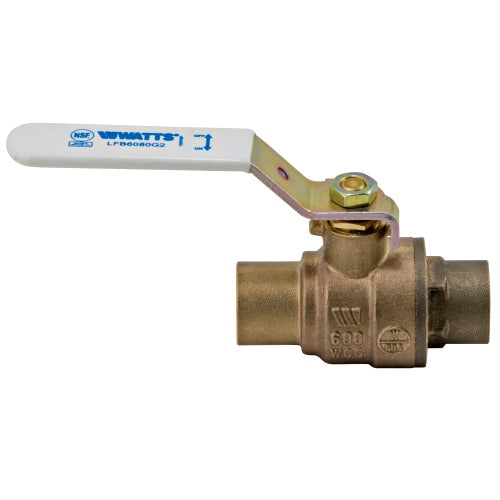

Watts 0450105 1-1/4 inches 2-Piece Ball Valve with Threaded Connections

Product Description

The Watts 0450105 is a 1-1/4" 2-Piece Ball Valve with Threaded Connections. It features Uniseal (enhanced PTFE) seats for lasting service with liquids and gases. The chrome-plated brass ball is wiped clean during each valve operation, ensuring minimal pressure drop due to large ports. It has a blowout-proof, pressure-retaining stem and a high cycle life reinforced PTFE stem packing seal and thrust washer.

• Uniseal (enhanced PTFE) seats for lasting service for a wide range of liquids and gases
• Chrome plated brass ball is wiped clean during each operation of the valve
• Minimal pressure drop due to large ports

Product Highlights

This Watts ball valve is ideal for commercial and industrial applications, offering a full port design and robust construction for lasting performance.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0450105

Technical Specifications

• Adapter Length: 3-3/8"
• Material: Bronze
• Connection Size: 1-1/4"
• Connection Type: NPT
• Water Connection: 1-1/4"
• Ball Material: Chrome Plated Brass
• Body Finish: Bronze
• Body Material: Bronze
• Brand: Watts
• Inlet Connection Size: 1 1/4 IN
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Lead Free: YES
• Maximum Temperature-Fahrenheit: 400
• Minimum Temperature - Celsius: -18.00
• Minimum Temperature-Fahrenheit: 0
• Outlet Connection Size: 1 1/4 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: FPT
• Part Number: 0450105
• Port Type: Full
• Seat Material: Virgin PTFE
• Series: LFB6080G2
• Stem Packing Material: Virgin PTFE
• Stem Shaft Material: Brass
• Stem Type: Blowout Proof
• Thrust Washer Material: Virgin PTFE
• Valve Style: 2-piece
• WOG Rating: 600 PSI
• Temperature Range: 0°F - 400°F (-18°C – 205°C) @ 50psi (3.4 bar)
• Pressure Range: 600psi (41 bar) WOG, non-shock; 150psi (10.3 bar) WSP
• Manufacturer: Watts
• UPC: 098268763461
• Model: LFB6080G2 1 1/4
• Serie: LFB6080G2
• CA Prop 65 In Scope: Yes
