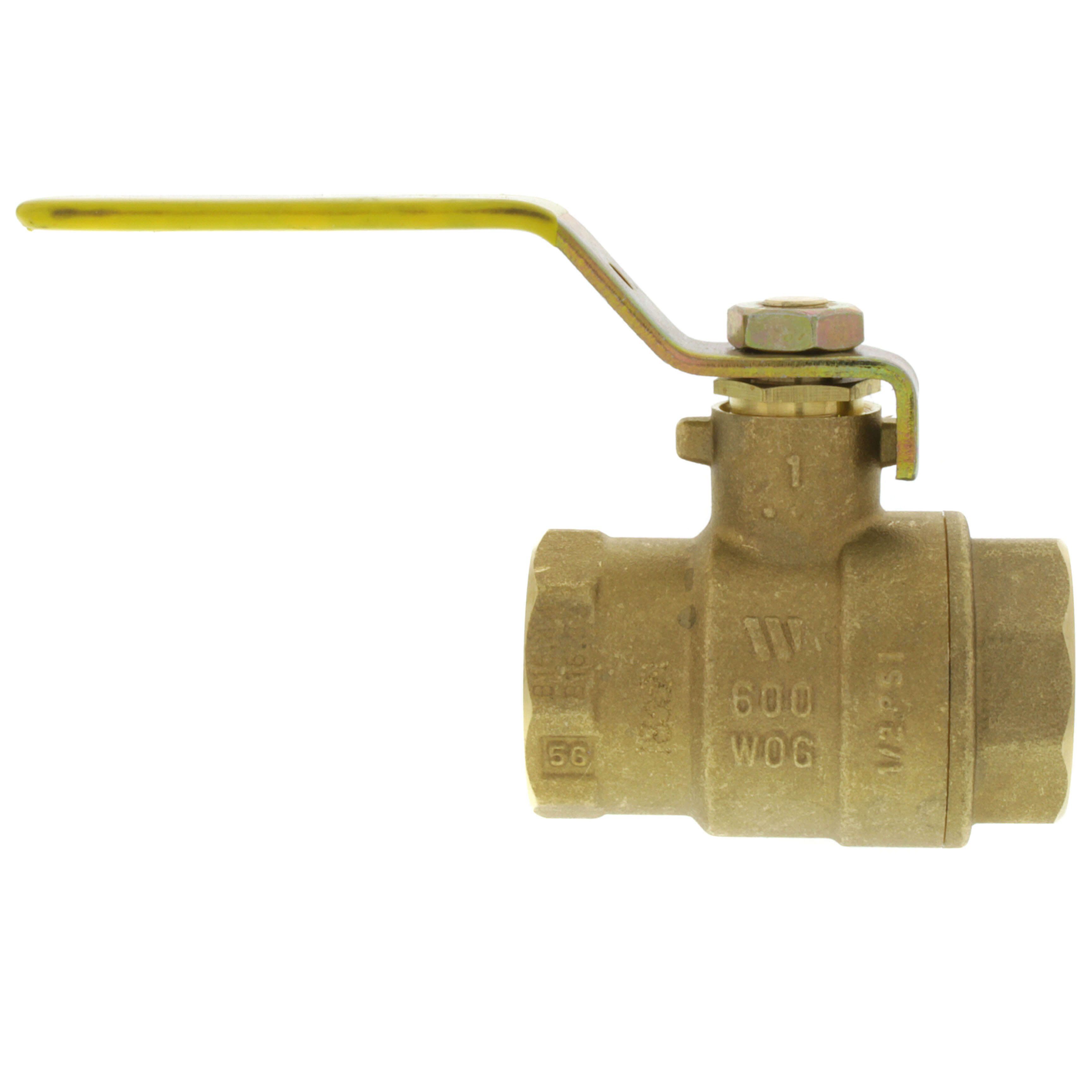

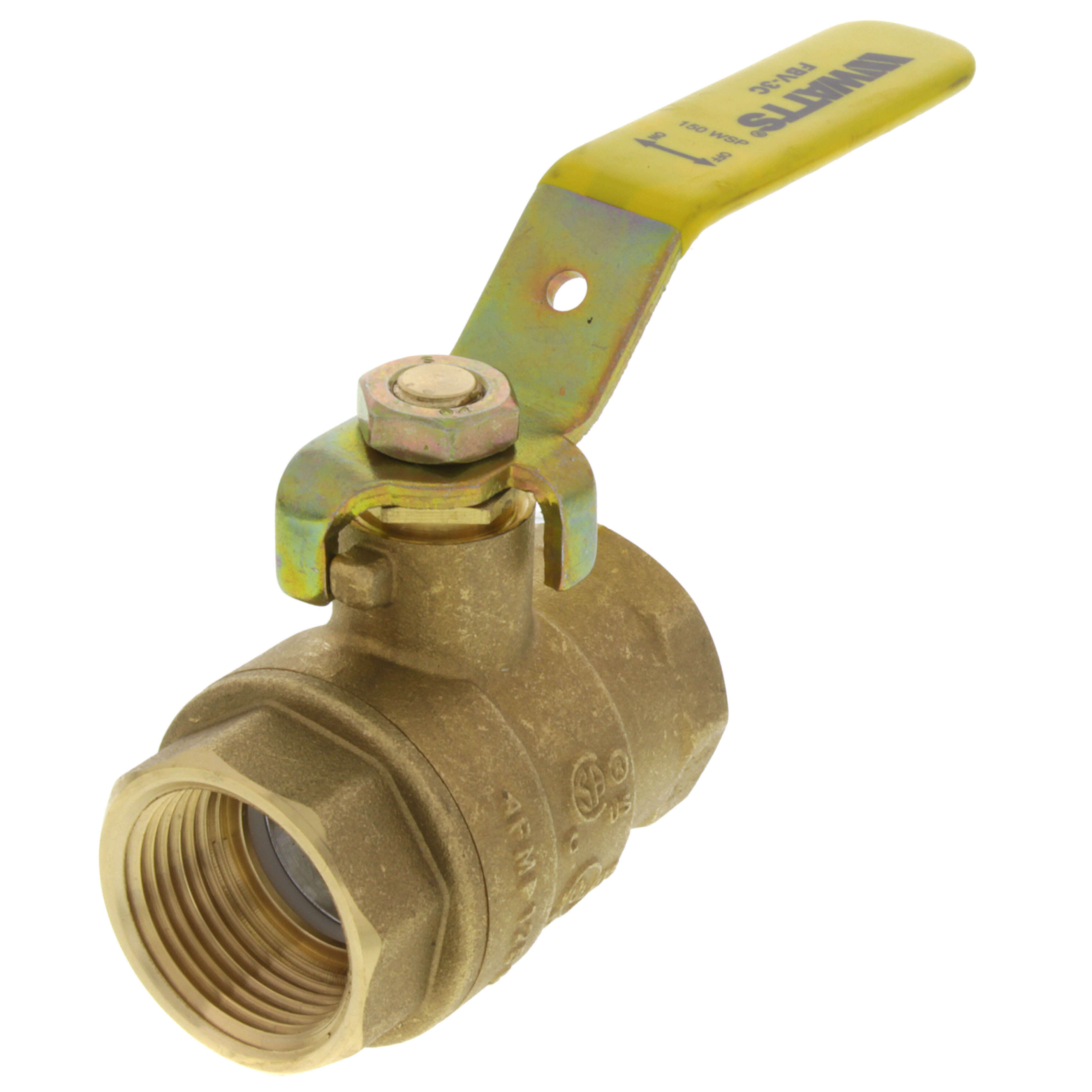

Watts 0450104 LFB6080G2 1 inches Full Port Threaded Bronze Ball Valve (Lead Free)

Product Description

The WATTS 0450104 LFB6080G2 is a 1" full port, lead-free bronze ball valve with threaded NPT end connections, designed for commercial and industrial applications involving a full range of liquids and gases. It features a blowout-proof, pressure-retaining stem and a full-port orifice to ensure minimal pressure drop. Rated to 600psi WOG (non-shock) and 150psi WSP.

• Lead Free forged bronze body and adapter.
• Full port design ensures minimal pressure drop.
• Blowout proof, pressure retaining stem.

Product Highlights

This lead-free bronze ball valve is ideal for industrial applications requiring a reliable shutoff with minimal flow restriction.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0450104

Technical Specifications

• WOG: 600
• Size: 1"
• Features: Standard
• Lead Free: Yes
• Port Type: Full Port
• Handle Style: Lever
• Connection Type: FNPT x FNPT
• Connection Method: Threaded
• Valve Construction: 2 piece
• Actuation: No
• Balance Stop Plate: No
• Ball Material: Brass
• Body Finish: Bronze
• Body Material: Bronze
• Brand: Watts
• Buy American Act Compliant: YES
• Class Rating: 600 WOG
• Control Type: Lever Handle
• Inlet Connection Size: 1 IN
• Inlet Connection Size-Metric: 25 MM
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Maximum Temperature-Fahrenheit: 400
• Minimum Temperature - Celsius: -18.00
• Minimum Temperature-Fahrenheit: 0
• Outlet Connection Size: 1 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPT
• Part Number: 0450104
• Seat Material: Virgin PTFE
• Series: LFB6080G2
• Stem Packing Material: Virgin PTFE
• Stem Shaft Material: Brass
• Stem Type: Blowout Proof
• Thrust Washer Material: Virgin PTFE
• Type: Kit
• Valve Style: 2-piece
• WOG Rating: 600 PSI
• Feature: Blowout proof, pressure retaining stem
• Certification: Lead Free* NSF-372 certification
• Inlet/Outlet Connection Size: 1 IN
• Inlet/Outlet Connection Type: Female Threaded
• Inlet/Outlet Thread Type: NPT
• Temperature Range: 0°F - 400°F (-18°C – 205°C) @ 50psi (3.4 bar
• Pressure Range: 600psi (41 bar) WOG, non-shock; 150psi (10.3 bar) WSP
