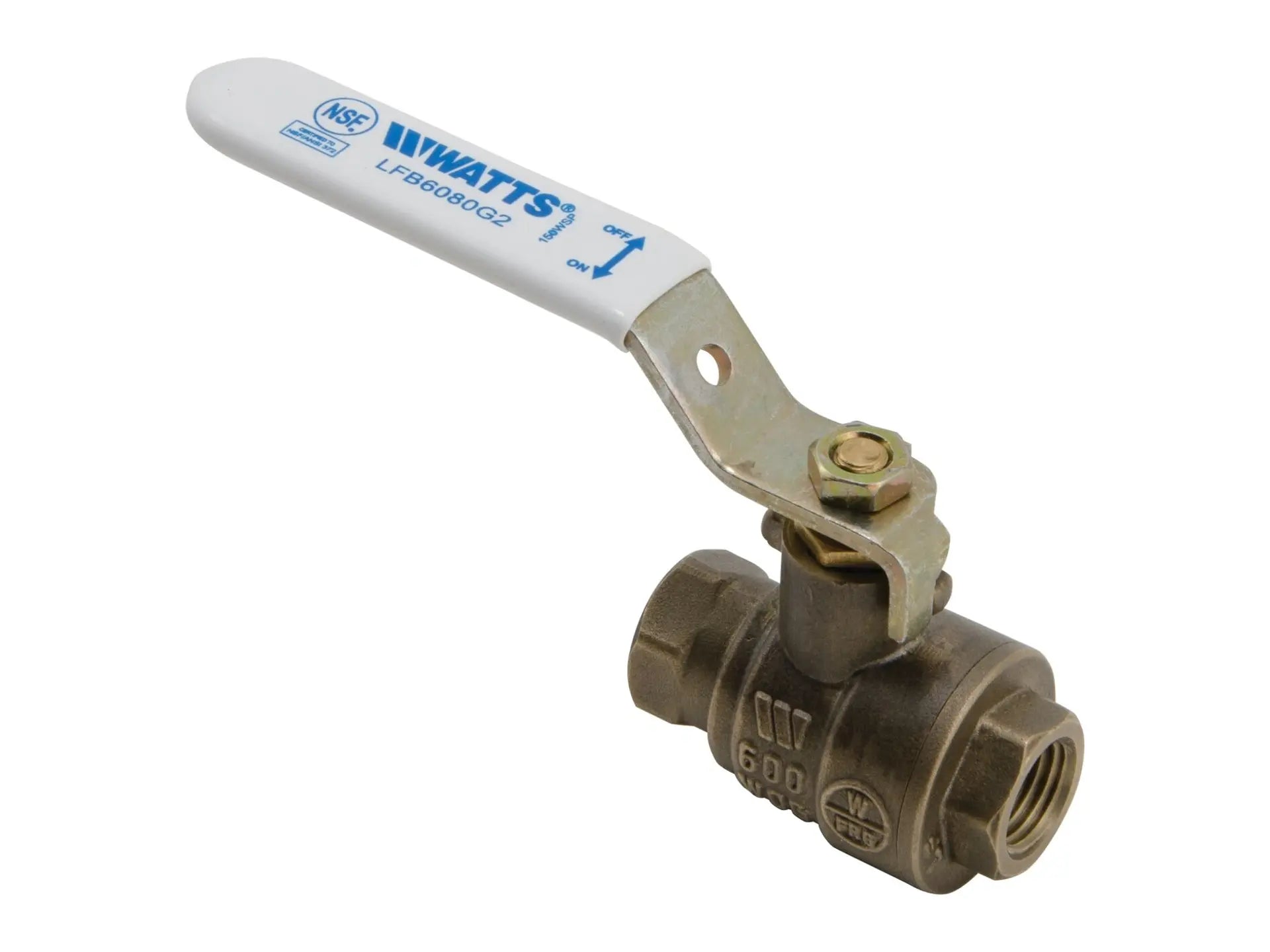

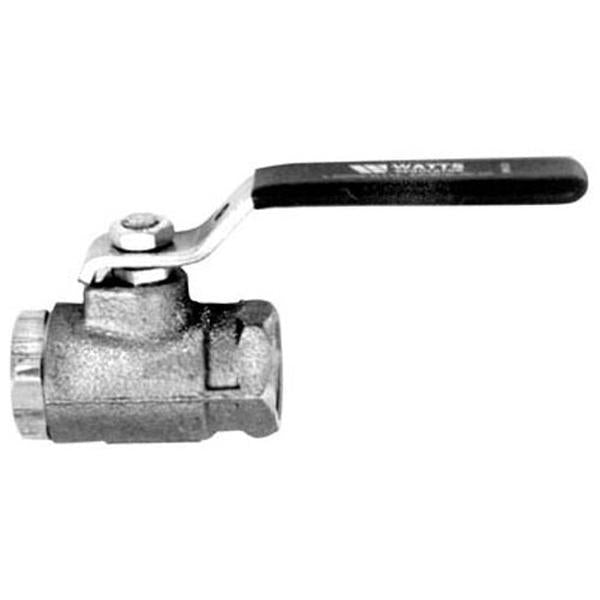

Watts 0450101 lfb6080g2 3/8 ball valve

Product Description

The WATTS 0450101 LFB6080G2 3/8 inch lead free 2-piece full port bronze ball valve with a threaded end connection is used in commercial and industrial applications for a full range of liquids and gases. A full port orifice ensures minimal pressure drop and the robust design provides lasting service. This ball valve is rated for 600 WOG/150 WSP.

• Full port design
• NSF 61-G certification
• 600 psi WOG rating

Product Highlights

This Watts ball valve features a 3/8" NPT connection and is designed for lead-free applications. The valve controls the flow of fluids.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0450101

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Finish: Bronze
• Body Material: Bronze
• Brand: Watts
• Buy American Act Compliant: YES
• Control Type: Tee Handle
• Inlet Connection Size: 3/8 IN
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Lead Free: YES
• Maximum Temperature-Fahrenheit: 400
• Minimum Temperature-Fahrenheit: 0
• Outlet Connection Size: 3/8 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: FPT
• Part Number: 0450101
• Port Type: Full
• Seat Material: Virgin PTFE
• Series: LFB6080G2
• Stem Packing Material: Virgin PTFE
• Stem Shaft Material: Brass
• Stem Type: Blowout Proof
• Thrust Washer Material: Virgin PTFE
• Valve Style: 2-piece
• WOG Rating: 600 PSI
• Material: Bronze
• Connection Size: 3/8"
• Connection Type: NPT
• Water Connection: 3/8"
• Water Connection Type: NPT
• Manufacturer: Watts
• UPC: 098268763355
• Model: LFB6080G2 3/8
• CA Prop 65 In Scope: Yes
• Manufacturer part number: 0450101
• Adapter Length: 1-7/8"
