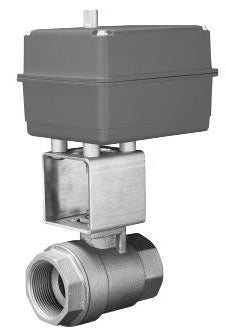

Watts 0431105 2, FPT x FPT, 600 PSI WOG, 316 Stainless Steel Ball, Bronze Body, Standard Port, 2-Piece, Ball Valve

Product Description

The Watts 0431105 is a two-piece ball valve designed for reliable operation in various plumbing applications. This valve features female threaded connections and operates with a pressure rating of six hundred PSI WOG. Made with a body of bronze and a ball of 316 stainless steel, it provides durability and corrosion resistance. The valve is suited for commercial HVAC zone control and light industrial use.

• Ball valve with two-inch nominal size.
• Standard port design ensures efficient flow.
• Rated for a maximum temperature of one hundred fifty degrees Fahrenheit.

Product Highlights

The Watts 0431105 is built for easy installation and maintenance in commercial settings. Its construction includes a bottom loaded blowout proof stem and adjustable PTFE packing.

Product Information

Standard Information

• Manufacturer: Watts
• UPC: 098268402254

Technical Specifications

• Type: 2-Piece
• Nominal Size: 2 Inch
• End Connection: Female Threaded x Female Threaded
• End to End Distance: 4-7/8 Inch
• Ball Material: 316 Stainless Steel
• Body Material: Bronze
• Stem Material: 316 Stainless Steel
• Seat Material: Durafill PTFE
• Port Type: Standard
• Temperature Rating: 150 Deg F
• Pressure Rating: 600 PSI WOG, 100 PSI WSP
• Inclusions/Features: Standard Position Indicator, Bottom Loaded Blowoutproof Stem, Adjustable PTFE Packing, Manual Override Standard
• Application: Commercial HVAC Zone Control, Light Industrial
• Applicable Standard: UL, CSA (Canada and US), ULC, ASSE, USC, FM, NSF
• Operator Cycle: 8 Second
• Operating Voltage Rating: 115 Volt AC
• Duty Cycle: 75 Percent
• CV Factor: 102
• Current Rating: 0.75 Amp at 5 Second Cycle Time
• Used On Item: Electric Motor
