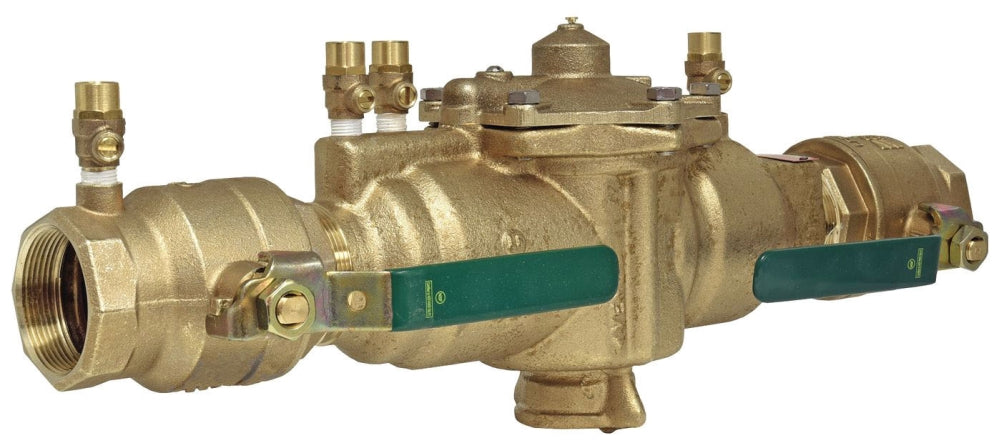

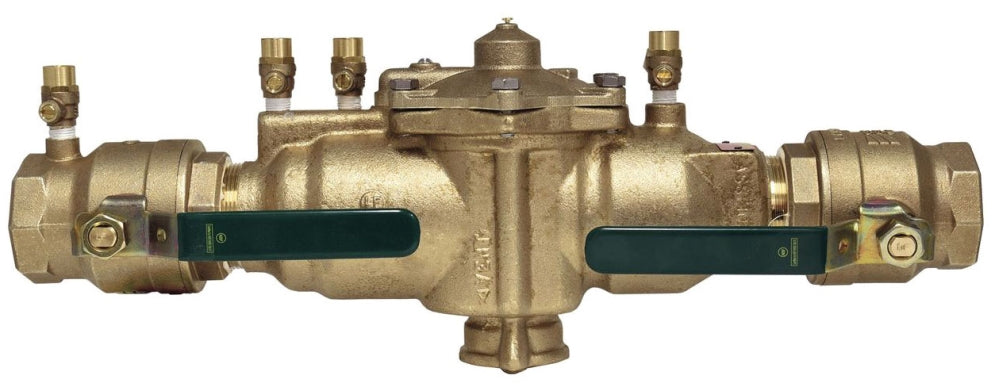

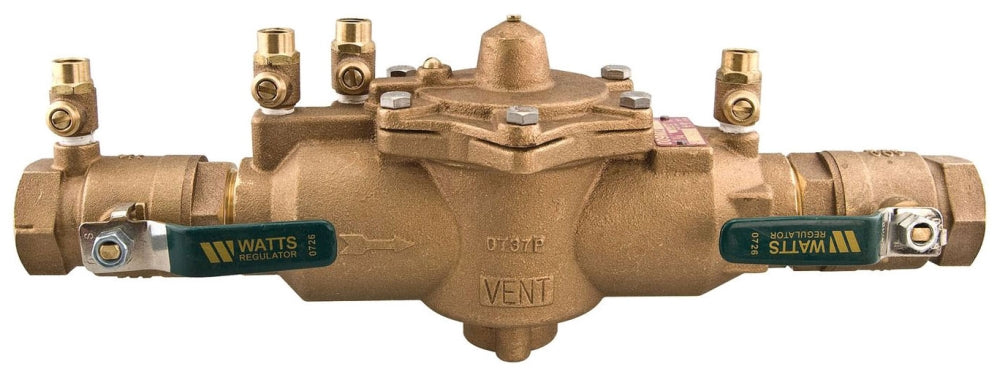

Watts 0391007 Backflow Preventer 2 Inch x 2 Inch

Product Description

The Watts 0391007 is a backflow preventer designed to protect potable water systems from contamination. This device features a reduced pressure zone assembly compression that ensures water flow prevention in both backsiphonage and backpressure conditions. It is ideal for piping systems that require regular maintenance, offering a compact design for easy access and service.

• Nominal Size: 2 inches x 2 inches
• Pressure Rating: 175 PSI
• Temperature Rating: 33 to 180 degrees Fahrenheit

Product Highlights

The Watts 0391007 delivers reliable protection against contaminated water entry. Its modular design allows for simple in-line repairs, ensuring that water systems remain safe and compliant with plumbing standards.

Product Information

Standard Information

• Manufacturer: Watts
• Model Number: LF009

Technical Specifications

• End Connection: Female Threaded x Female Threaded
• End to End Distance: Twenty-One and Three-Eighths inches
• Body Material: Cast Iron
• Disc Material: Silicone Rubber
• Seat Material: Polymer
• Inclusions: Two resilient seated isolation valves, four resilient seated test cocks, air gap drain fitting, quarter-turn ball valve
• Applicable Standard: ASSE 1013, AWWA C511, CSA B64.4, IAPMO 1563, NSF/ANSI 61G, UPC, USC
• Lead-Free : Yes
