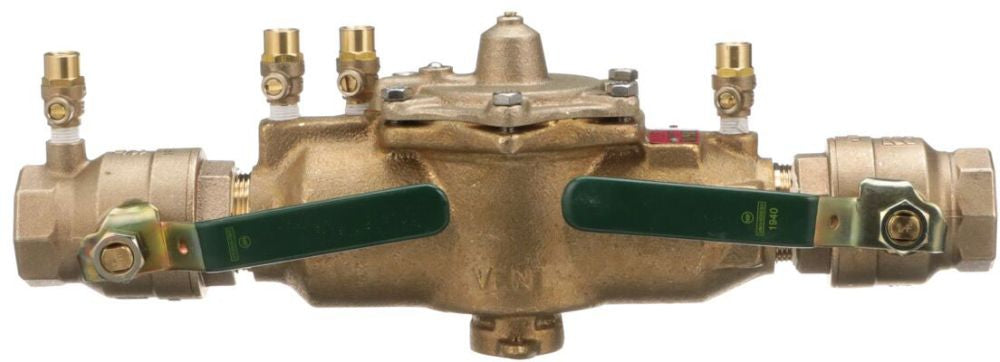

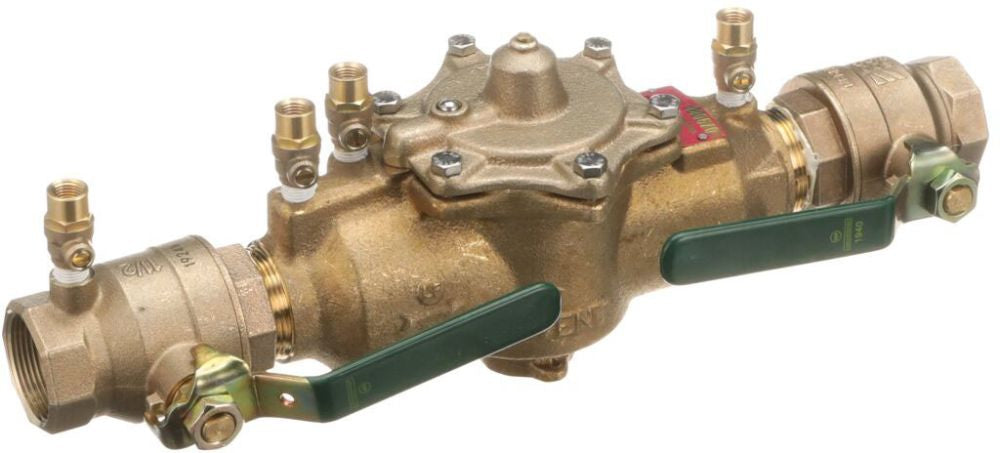

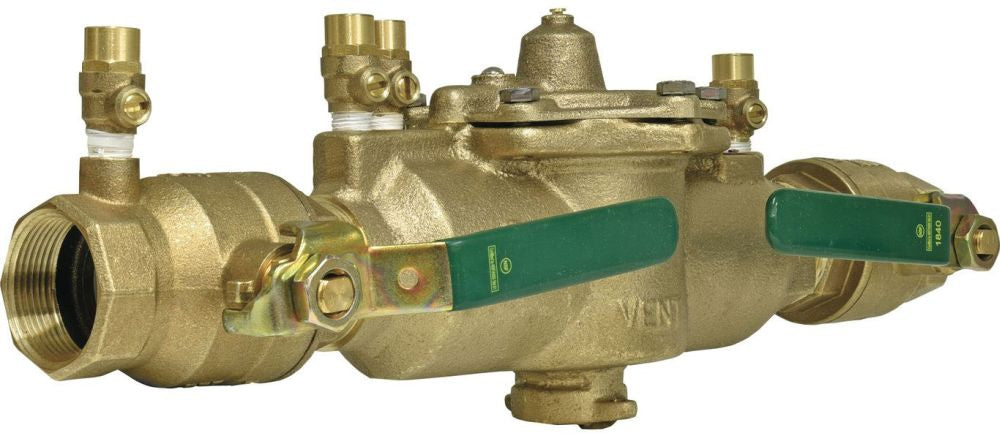

Watts 0391006 Backflow Preventer Assembly 1-1/2 Inch x 1-1/2 Inch Lead-Free

Product Description

The Watts 0391006 is a backflow preventer assembly designed to protect potable water supplies. This product features a nominal size of one and one half inches by one and one half inches. It uses a reduced pressure zone design which is essential for preventing the flow of contaminated water back into clean water systems. This assembly is made with female threaded connections and incorporates a quarter turn ball shut-off valve for easy operation.

• Compact design for easy installation and maintenance
• Durable cast bronze body with lead-free certification
• Included top-mounted test cock for straightforward testing and maintenance

Product Highlights

This assembly is ideal for systems where backpressure or backsiphonage are potential risks. It is compliant with various standards for a reliable installation in health hazard piping systems.

Product Information

Standard Information

• Manufacturer: Watts
• UPC: 09826805110

Technical Specifications

• Connection Size: 1-1/2 inches
• Connection Type: Female threaded
• Overall Length: 17-7/8 inches
• Body Material: Cast bronze
• Disc Material: Silicone rubber
• Flow Rate: 0 to 120 GPM
• Temperature Rating: 33 to 180 degrees Fahrenheit
• Pressure Rating: 175 PSI
