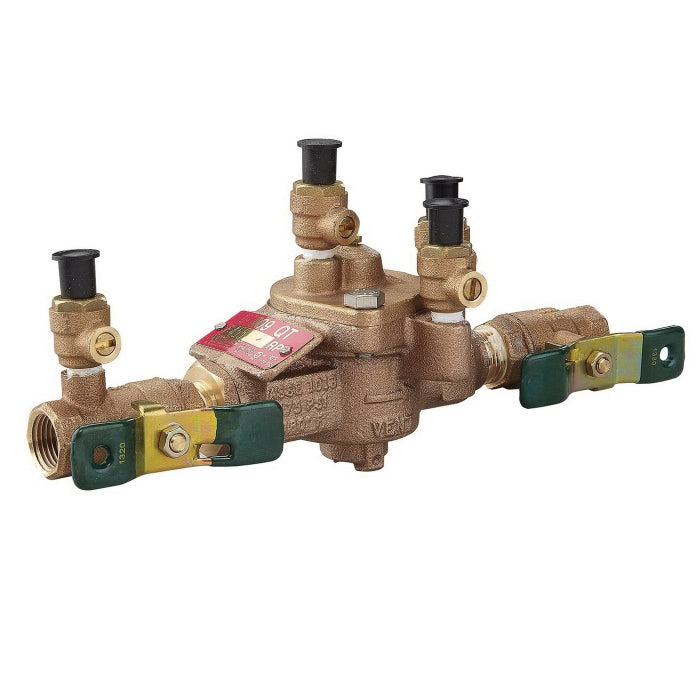

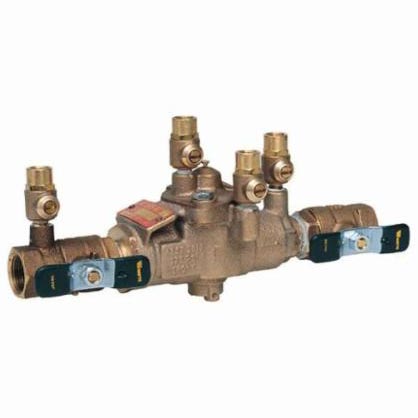

Watts 0391002 LF009, LF009-QT Reduced Pressure Zone Assembly, 1/2 in Nominal, NPT End Style, Quarter-Turn Ball Valve

Product Description

The Watts Regulator 0391002 is a durable lead-free reduced pressure zone assembly. This assembly is designed to prevent contaminated water from entering the potable water supply. It complies with national plumbing codes and is ideal for protecting against backpressure and backsiphonage at potential health hazards.

• Lead-free bronze body construction
• Single access cover for easy maintenance
• Internal relief valve for reduced installation clearances

Product Highlights

This assembly features a compact modular design that allows for quick in-line repairs. The captured springs enhance safety during maintenance, and its large body passages enable low pressure drop across the system.

Product Information

Standard Information

• Brand: Watts Regulator
• MPN: 0391002

Technical Specifications

• Application: Health Hazard
• Body Material: Cast Copper Silicon Alloy
• Connection Size: 1/2 in
• End Style: NPT
• Pressure Rating: 175 psi
• Temperature Rating: 33 to 180 deg F
• Series: LF009
• Warranty: 1 Year Limited
• Dimensions: 10 in L x 4-5/8 in H
• Includes: (4) Resilient Seated Test Cocks and Air Gap Drain Fitting
