Watts 0389175 4 709DCDA-OSY-CFM 3/4

Product Description

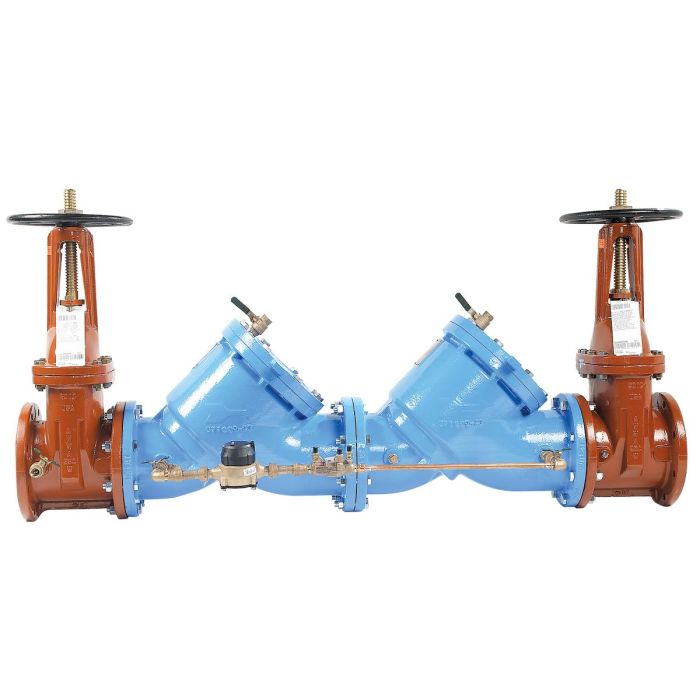

The Watts 0389175 is a double check detector assembly. This assembly is designed to prevent backflow of non-health hazard fire protection system substances. It incorporates a three-fourth inch bypass and a cubic feet meter to identify ground leaks and unauthorized use, significantly lowering water expenses.

• Constructed with a cast iron body coated with ArmorTek to resist corrosion.
• Features modular check design for easy installation and maintenance.
• Operates at a maximum pressure of one hundred seventy-five psi.

Product Highlights

Designed for non-potable applications, this backflow preventer ensures effective water supply management.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• MPN: 0389175

Technical Specifications

• Type: Double Check Detector Assembly
• Material: Cast Iron
• Nominal Size: 4 in
• Pressure Rating: 175 psi
• Temperature Rating: 33 to 110 deg F
• Body Finish: Fused Epoxy Coated
• Dimensions: 52 in L
• Backflow Type: Dual Check
