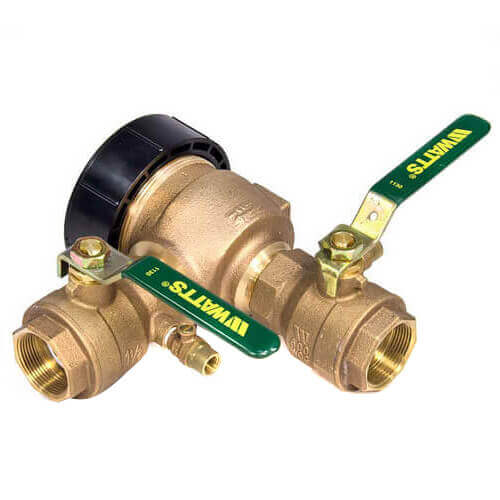

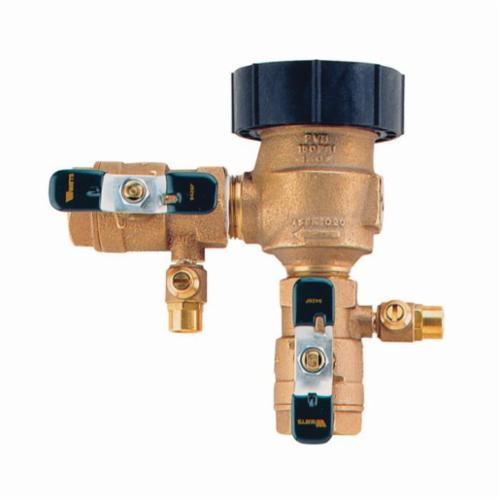

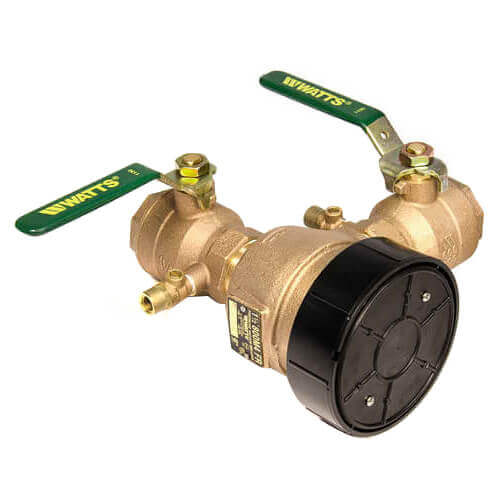

WATTS 0388017 Freeze Resistant Pressure Vacuum Breaker with Lever Handle, 1-1/2 in Nominal, FNPT End Style, 800M4FR

Product Description

The WATTS Pressure Vacuum Breaker, MPN 0388017, is a freeze-resistant device designed to prevent the backflow of contaminated water. This unit features a bronze body and a quarter-turn shutoff valve for ease of use. It is suitable for applications in irrigation systems and other industrial processes susceptible to freezing.

• 1-1/2 inch nominal size with FNPT end
• Maximum pressure rating of 150 psi
• Equipped with a unique built-in relief valve for ice protection

Product Highlights

This vacuum breaker is reliable in health hazard applications and helps maintain the safety of potable water systems.

Product Information

Standard Information

• Manufacturer: WATTS
• Application: Health Hazard

Technical Specifications

• Body Material: Bronze
• Flow Rate: 7.5 fps
• Dimensions: 9-1/4 inches L x 9-1/2 inches H
• Temperature Rating: 33 to 140 degrees F
• Type: Freeze Resistant
• Pressure Rating: 150 psi
• Standards/Approvals: ANSI/ASSE 1020, IAPMO/UPC Listed
