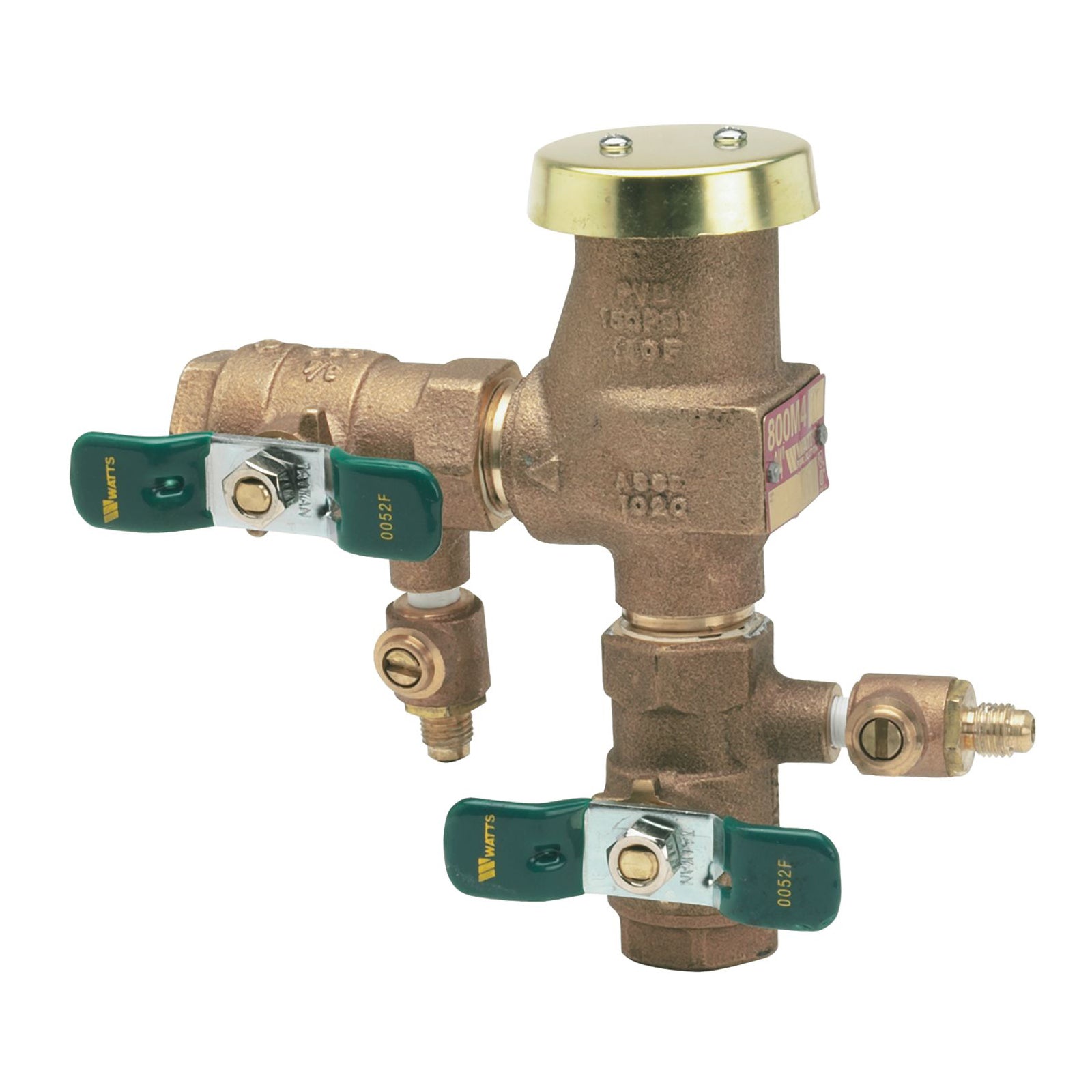

Watts 0388013 Freeze Resistant Pressure Vacuum Breaker With Quarter Turn Ball Valve Shutoff, 1/2 in Nominal, FNPT End Style, Bronze Body

Product Description

The Watts 0388013 pressure vacuum breaker is designed to prevent the reverse flow of polluted water into the potable water supply. This freeze-resistant unit features a bronze body and is built for durability and reliability.

• Freeze-resistant construction for cold environments
• Built-in relief valve to manage pressure from ice formation
• Female NPT inlet and outlet with quarter-turn shutoff

Product Highlights

This vacuum breaker is ideal for health hazard applications, particularly where sudden freezing can occur, such as irrigation systems and industrial water processes.

Product Information

Standard Information

• Manufacturer: Watts
• MPN: 0388013

Technical Specifications

• Application: Health Hazard
• Body Material: Bronze
• Dimensions: 6-1/8 in L x 6-1/4 in H
• End Style: FNPT
• Flow Rate: 7.5 fps
• Pressure Rating: 150 psi
• Temperature Rating: 33 to 140 deg F
• Type: Freeze Resistant
• Series: 800M4FR
• Standards/Approvals: ANSI/ASSE 1020, Approved by USC Foundation for Cross-Connection Control
