Watts 0386473 1/2 B911T-M3 (w/press)

Product Description

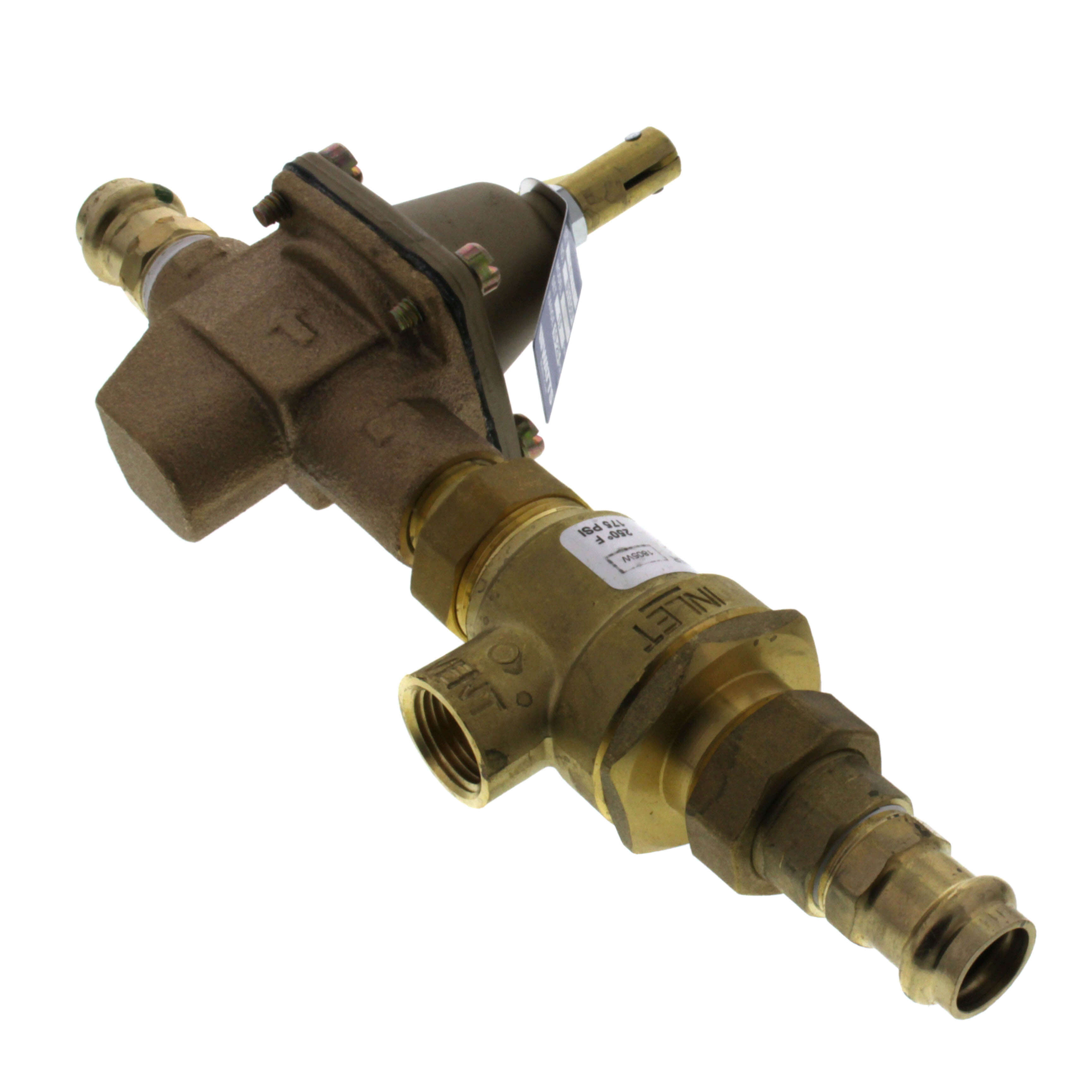

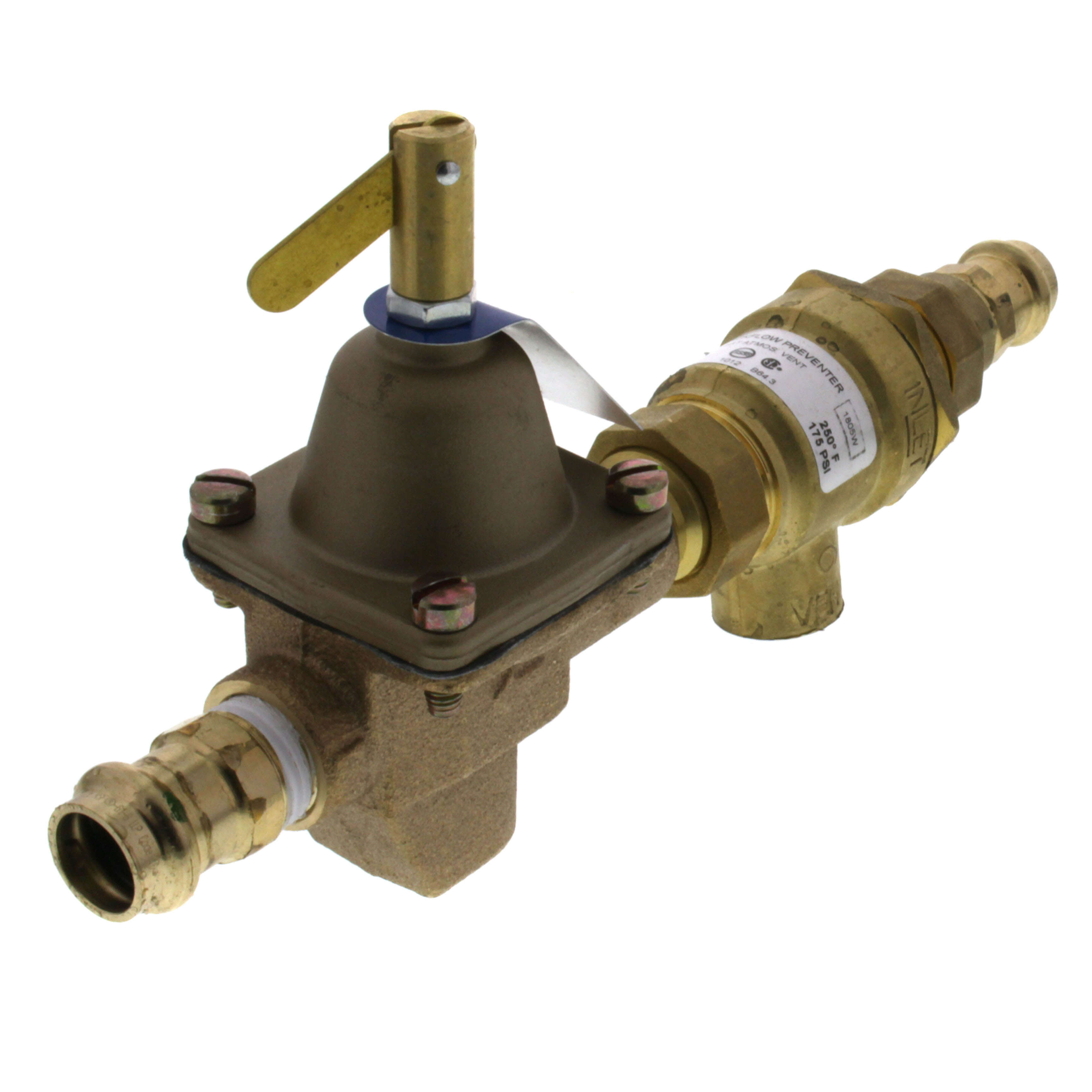

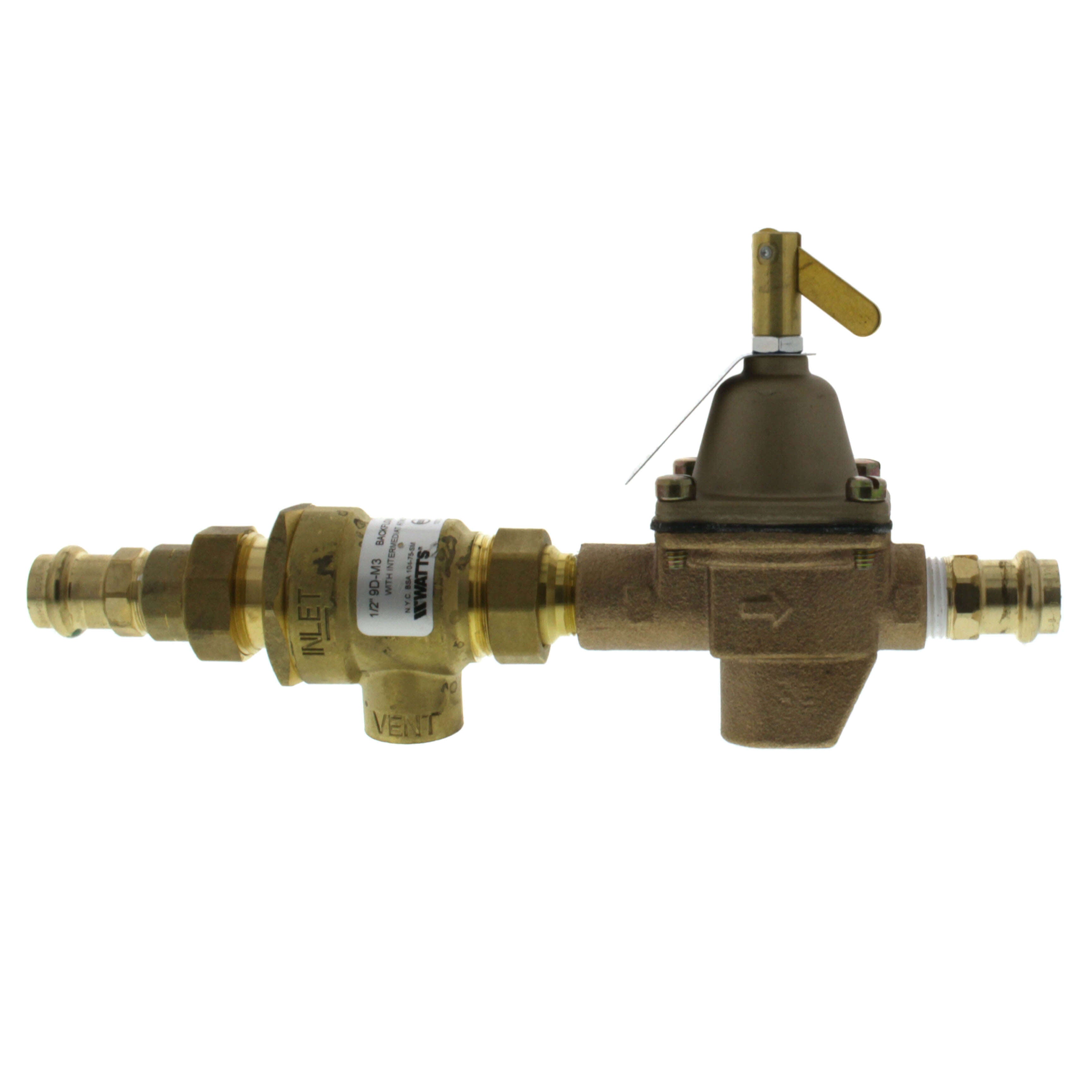

The Watts Regulator Company 0386473 is a combination fill valve and backflow preventer, designed for efficient water system management. This product is ideal for both commercial and residential applications, particularly on boiler feed lines. It features a durable bronze body and a compact design measuring eight and one-half inches in length and five and one-quarter inches in height.

• Combination unit with fill valve and backflow preventer
• Pre-assembled for easy installation
• High capacity for quick system filling and purging

Product Highlights

The 0386473 is designed to provide make-up water to boiler systems while preventing backflow when supply pressure is inadequate. Its construction allows for vertical or horizontal installation and includes a strainer screen to facilitate maintenance.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Series: 911

Technical Specifications

• Body Material: Bronze
• Dimensions: 8-1/2 inches L x 5-1/4 inches H
• End Style: Press
• Nominal Size: 1/2 inches
• Pressure Rating: 100 psi
• Temperature Rating: 212 degrees F
• Domestic/Import: Domestic
