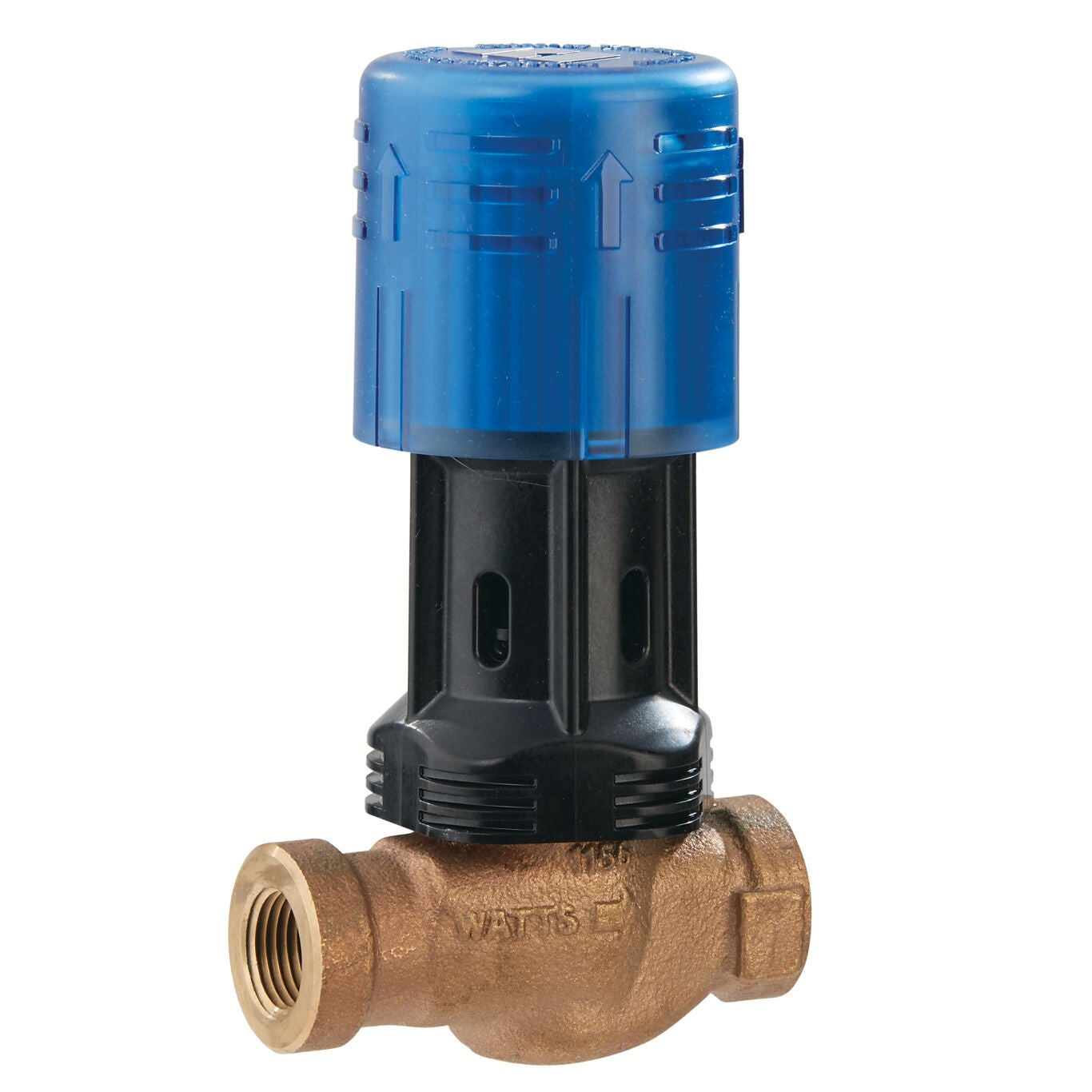

Watts 0386467 Bd1156f 1/2 inches Threaded Bronze Dial Set Feed Water Pressure Regulator

Product Description

The WATTS 0386467 Series BD1156F feed water pressure regulators fill the boiler and system piping with water and maintain water pressure. These valves provide make up water to the system in the event of system leaks. Features a high capacity performance and a unique push-button fast fill engagement with auto-stop.

• Push button fast fill with auto-stop
• Tight seating check valve
• Dial indicator eliminates need for pressure gauge

Product Highlights

This WATTS feed water pressure regulator maintains water pressure, provides make-up water, and prevents over-pressurizing with its auto-stop feature. It has a stainless steel strainer to protect the valve disc.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0386467

Technical Specifications

• Maximum Temperature: 212°F (100°C)
• Maximum Working Pressure: 100psi (6.9 bar)
• Adjustment Range: 8-21psi (55-145 kPa) with 25psi auto-stop fast fill, Dial indicator +/- 2 psi, Factory set at 15psi (103.4 kPa)
• Size: 1/2"
• Material: Bronze
• Application: Heating
• Pressure Range: 10 to 25 psi
• Connection Type: FNPT x FNPT
• Max Inlet Pressure: 100 PSI
• Temperature Range (F): 212°F Max
• Body Material: Cast Bronze
• Body Pattern: Inline
• Brand: Watts
• Flow Rate: High Capacity
• Hydronic Item Type: Boiler Feeder Valve
• Inlet Connection Size: 1/2 IN
• Inlet Connection Size-Metric: Does Not Apply To Product
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Lead Free: No
• Maximum Operating Temperature-Fahrenheit: 212
• Maximum Pressure-PSI: 100
• Maximum Steam Pressure-PSI: 100
• Maximum Temperature-Fahrenheit: 212
• Maximum Water Pressure-PSI: 9999
• Outlet Connection Size: 1/2 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPT
• Part Number: 0386467
• Pressure Steam Discharge Capacity: Does Not Apply To Product
• Series: BD1156F
• Strainer: Yes
• Strainer Material: Stainless Steel
• Vacuum Breaker: No
• Max. Operating Temp.: 212°F
• Max. Pressure: 100 psi
• Max. Steam Pressure: 100 psi
• Max. Temp.: 212°F
• Max. Water Pressure: 9999 psi
• Max. Working Pressure-PSI: 100
