Product Description

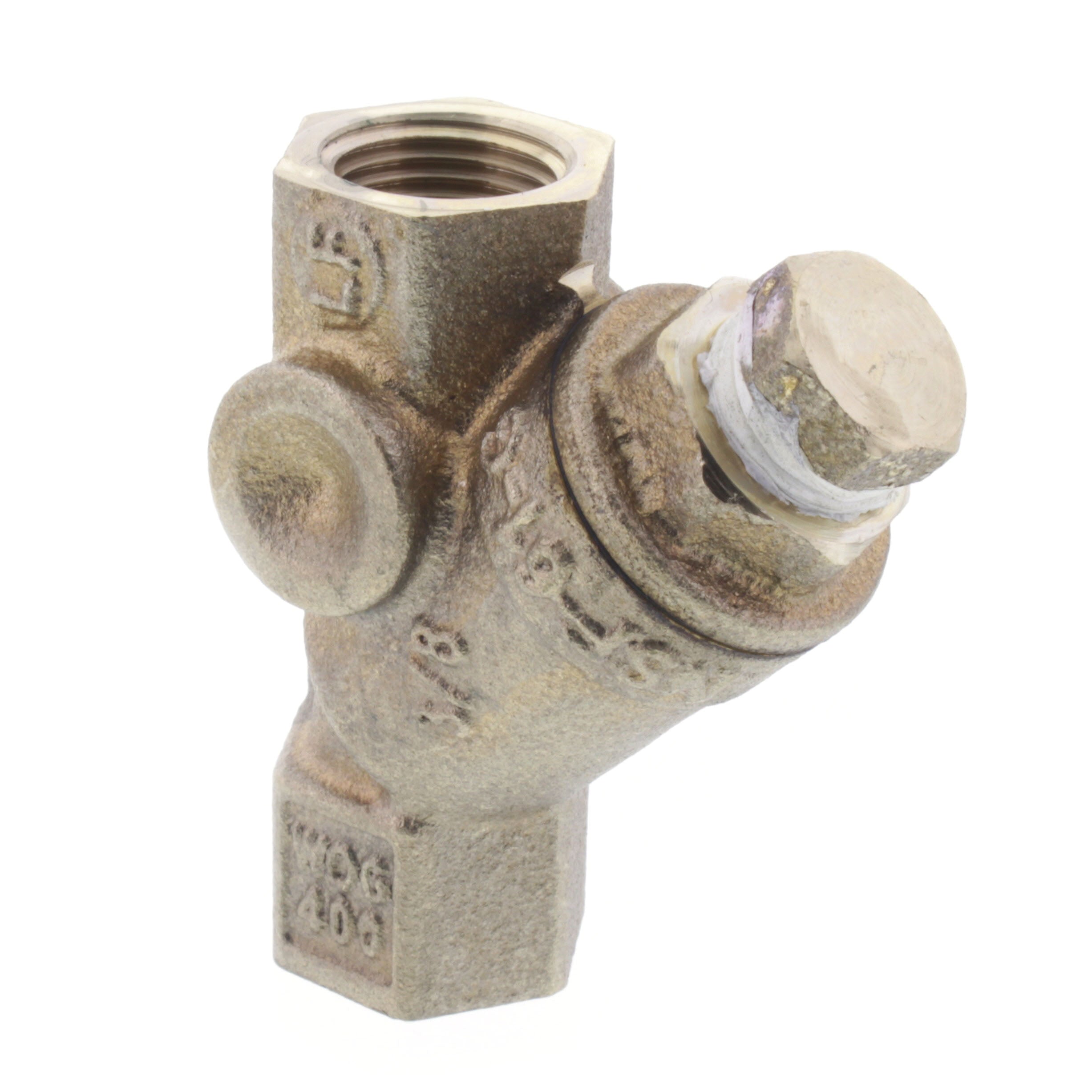

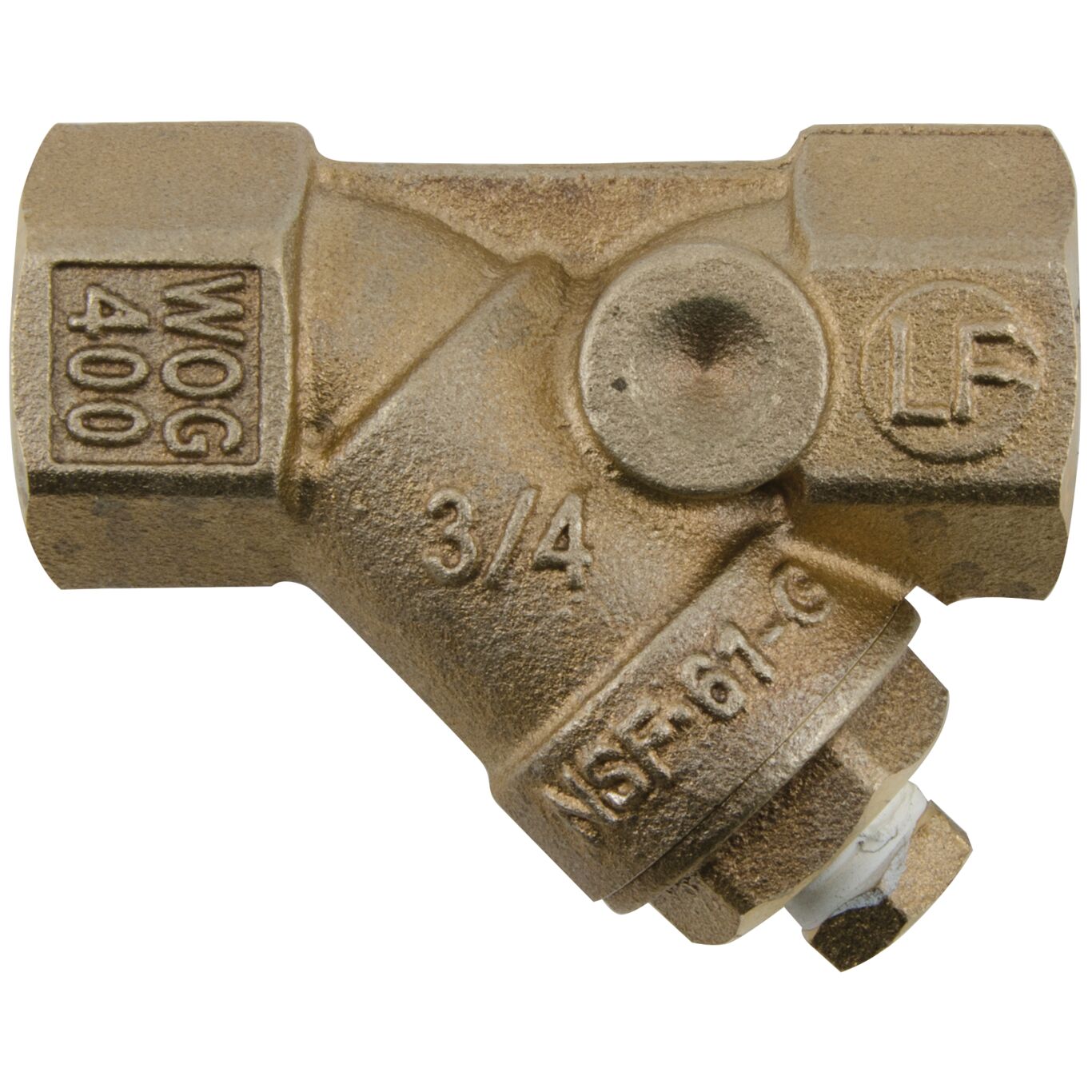

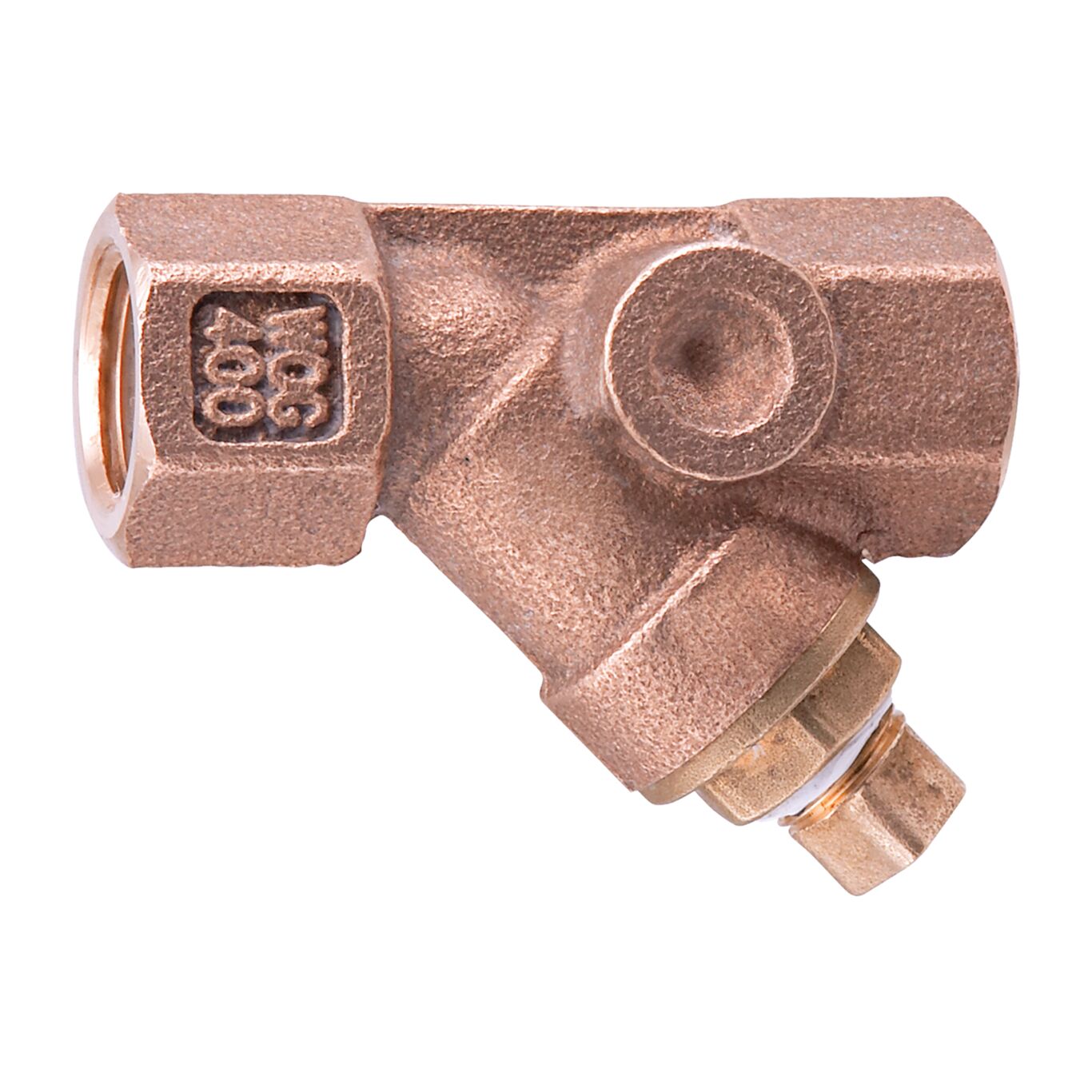

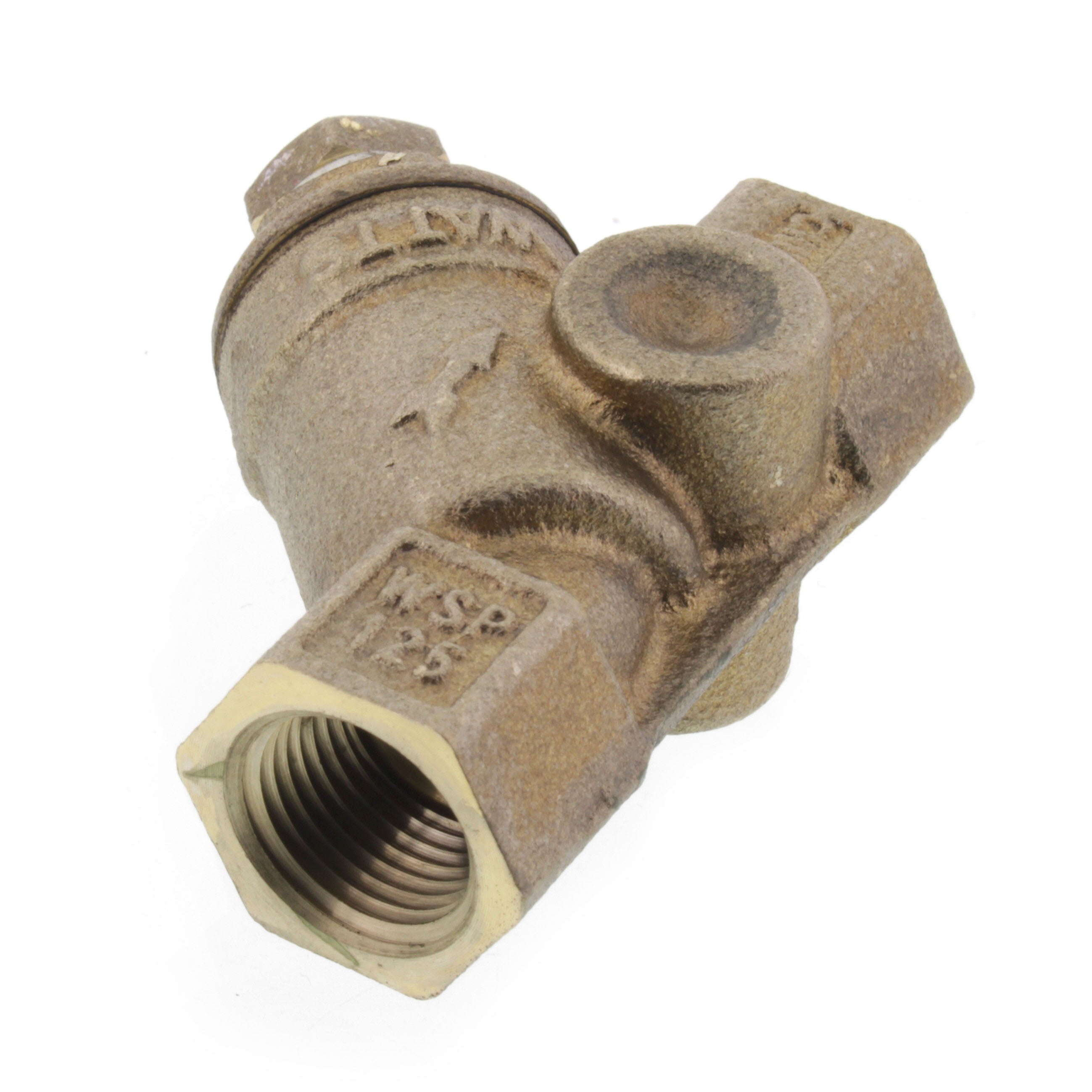

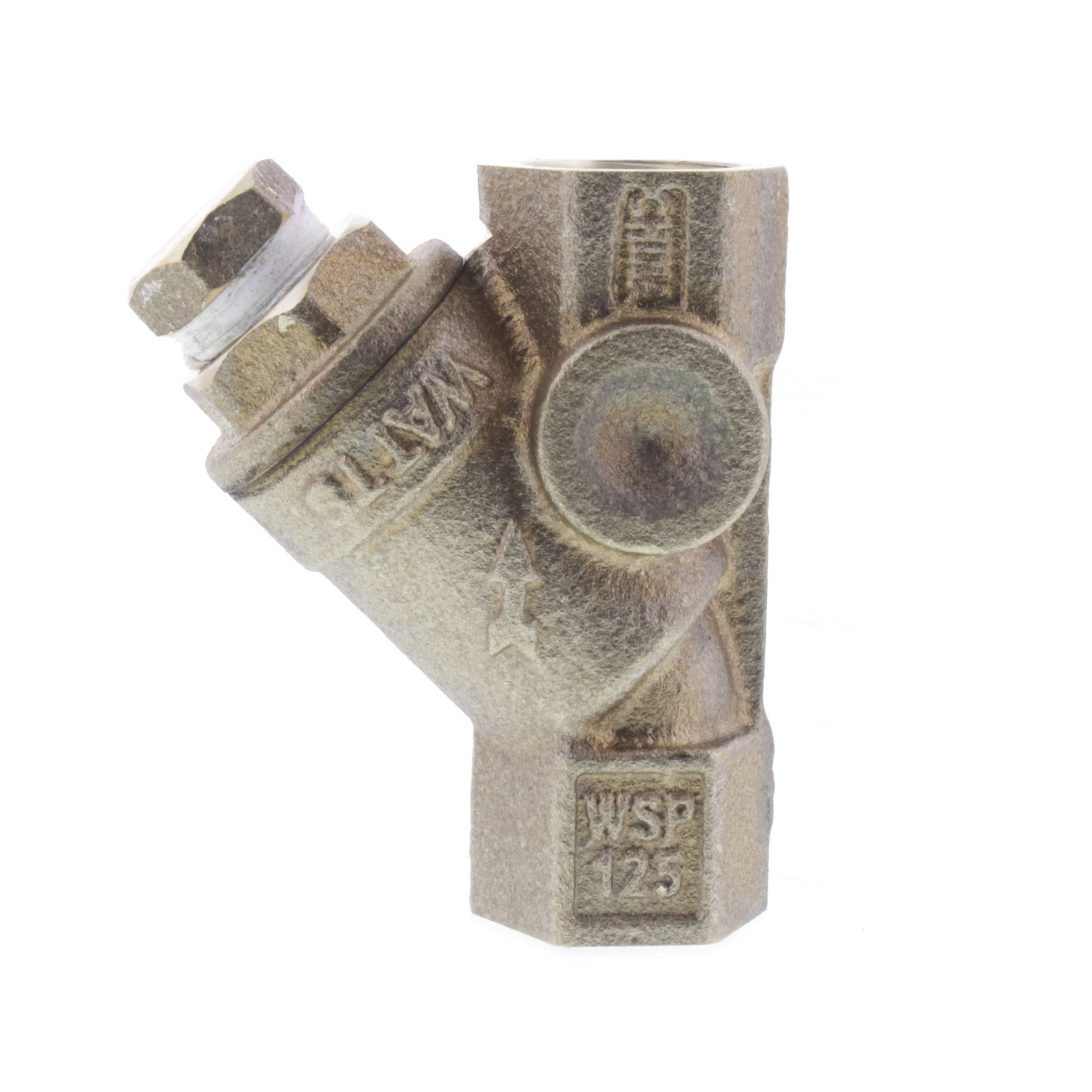

The WATTS 0379110 LF777SI Lead Free Bronze Wye-Pattern Strainer is designed to protect system components from dirt, rust, and other damaging debris in the piping system. It features a wye-pattern, bronze body with a stainless steel screen and a solid tapped retainer cap with an NBR gasket. Comes with threaded connections and is available in 3/8" size.
- Lead Free construction
- Threaded connections
- Wye pattern
Product Highlights
Protects system components from debris. Features a tapped retainer cap for closure plug and lead free construction.
Product Information
Standard Information
-
Brand: WATTS
-
Manufacturer Part Number: 0379110
Technical Specifications
-
Size: 3/8"
-
Material: Bronze
-
Lead Free: Yes
-
Thread Type: Female
-
Connection Type: FNPT x FNPT
-
Pressure Rating: 125 psi (WSP), 400 psi (WOG)
-
Connection Method: Threaded
-
Blowdown Outlet Connection: Female Threaded
-
Blowdown Outlet Size: 1/4 IN
-
Body Material: Bronze
-
Body Pattern: Wye
-
Brand: Watts
-
Gasket Material: NBR
-
Inlet Connection Size: 3/8 IN
-
Inlet Connection Type: Female Threaded
-
Inlet Thread Type: NPT
-
Outlet Connection Size: 3/8 IN
-
Outlet Connection Type: Female Threaded
-
Outlet Thread Type: NPT
-
Part Number: 0379110
-
Plug Material: Brass
-
Retainer Cover Material: Brass
-
Retainer Cover Type: Tapped with Closure Plug
-
Screen Material: Stainless Steel
-
Screen Size: 20 MESH
-
Series: LF777S
-
Strainer Type: Wye
-
WOG Rating: 400 PSI
-
Nominal Size: 3/8 in
-
Overall Length: 2-11/16 in
