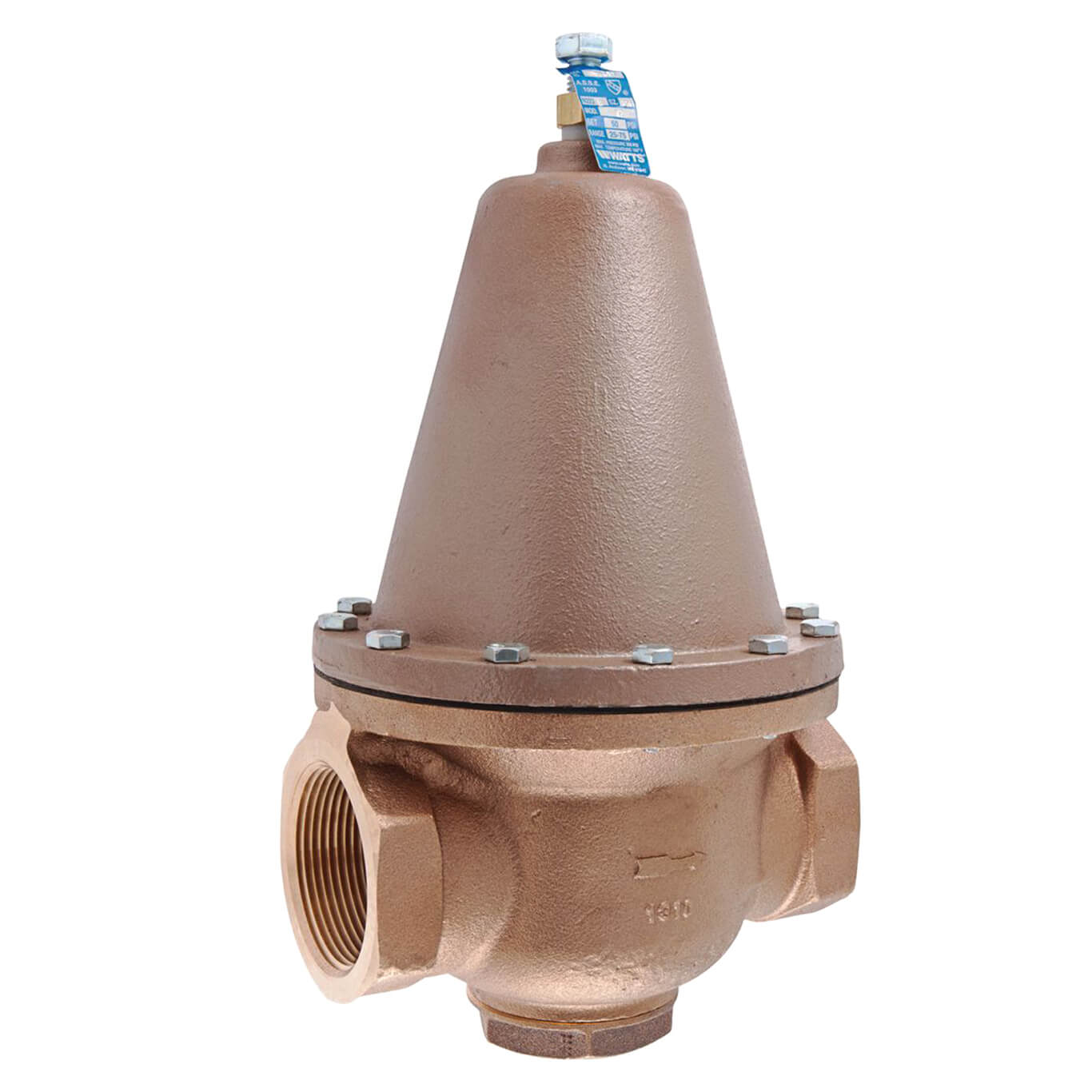

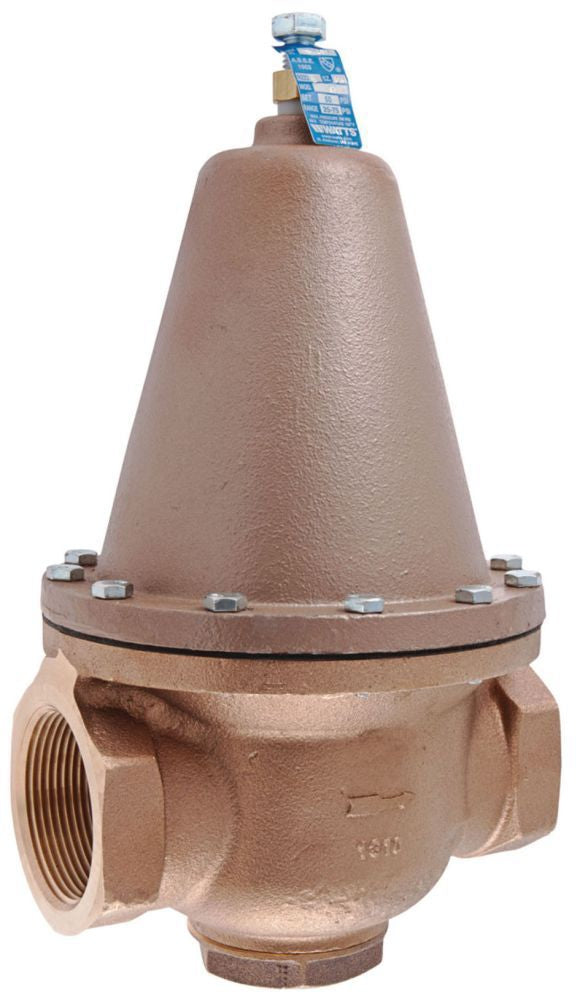

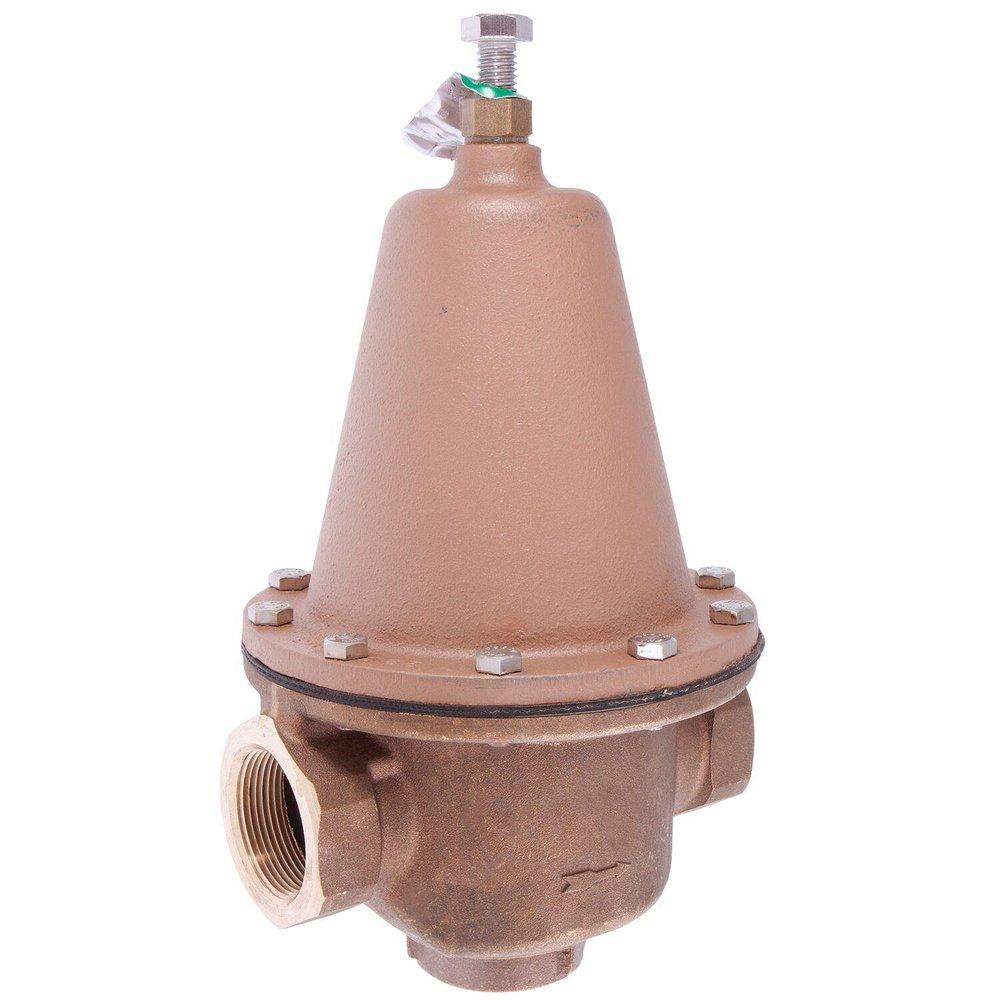

Watts 0298602 Series LF223 2-1/2 in. Pressure Reducing Valve

Product Description

The WATTS 0298602 Series LF223 pressure reducing valve features lead free iron body construction and NPT threaded female inlet by NPT threaded female outlet connections. It has an enlarged diaphragm, spring cage and seat orifice for high capacity performance. The valve has a maximum working pressure of 300 PSI (20.7 BAR).

• Lead free iron body construction
• Enlarged diaphragm, spring cage and seat orifice for high capacity performance
• NPT threaded female inlet by NPT threaded female outlet connections

Product Highlights

This valve offers sensitive spring and large diaphragm for accurate pressure control and a high temperature resisting diaphragm for hot or cold water.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0298602
• Country of Origin: United States

Technical Specifications

• Maximum working pressure: 300 PSI (20.7 BAR)
• Connections: NPT threaded female inlet by NPT threaded female outlet
• Type: Water Pressure Reducing Valve
• Material: Lead Free Cast Copper Silicon Alloy
• Pressure_Range: 25 to 75
• Connection_Size: 2 1/2"
• Connection_Type: Female Threaded
• Disc Material: EPDM
• Item Name: Water Pressure Reducing Valve
• Series: LFN223B
• Temperature Rating: 33 - 160 deg F
• Adjustable Reduced Pressure Range: 25 to 75
• Body Material: Lead Free Cast Copper Silicon Alloy
• Inlet Connection Size: 2 1/2 IN
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Lead Free: YES
• Maximum Operating Temperature-Fahrenheit: 160
• Maximum Working Pressure-PSI: 300
• Minimum Temperature-Fahrenheit: 33
• Outlet Connection Size: 2 1/2 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: NPT
• Part Number: 0298602
• Standard Reduced Pressure Setting-PSI: 50
• Strainer: No
• Thermal Expansion Bypass: Yes
• Valve Style: Standard
• Size: 2-1/2"
• Inlet Type: FNPT
• Application: Heating
• Outlet Type: FNPT
• Pressure Range: 25 to 75 psi
• Max Inlet Pressure: 300 PSI
• Temperature Range (F): 33°F to 160°F
• Seat Material: Replaceable Stainless Steel Alloy
