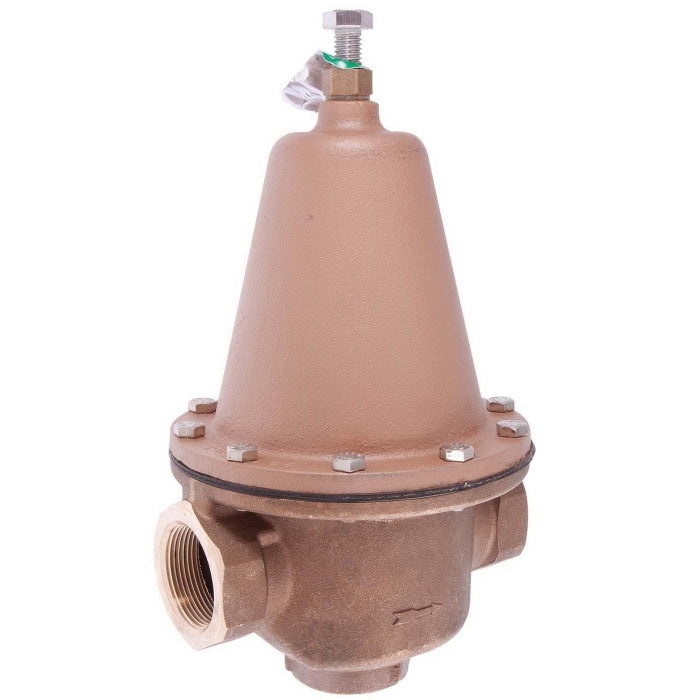

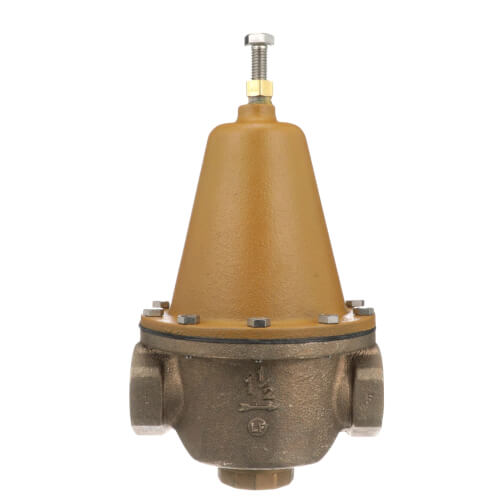

Watts 0298568 Series LF223 Brass FNPT Pressure Reducing Valve

Product Description

The Watts Series LF223 1-1/2 inch Brass FNPT Pressure Reducing Valve, model number 0298568, is engineered to moderate water pressure to safeguard plumbing infrastructure and minimize water consumption. Suitable for commercial, institutional, and industrial settings, this valve supports water supply pressures up to 300 psi and can be adjusted from 25-75 psi.

• Lead-free brass construction ensures compliance with health standards.
• Designed with an enlarged diaphragm and spring cage for high-capacity performance.
• Easily serviceable in-line without removing from the installation setup.

Product Highlights

The valve features a sealed spring cage suitable for both pit and outdoor installations, enhancing its durability and reliability in various environmental conditions. Its sensitive spring and large diaphragm allow for precise pressure control, making it an ideal choice for systems requiring consistent operation.

Product Information

Standard Information

• Brand: Watts
• MPN: 0298568

Technical Specifications

• Connection Size: 1-1/2 inches
• Connection Type: FNPT
• Material: Brass
• Pressure Rating: 25 to 75 psi
• Temperature Rating: 33 to 160 degrees Fahrenheit
• Standards/Certifications: UPC, IAPMO listed, CSA, ASSE, NSF/ANSI 61-G certified
