Watts 0298533 Series LF223 1 Inch Brass FNPT Pressure Reducing Valve

Product Description

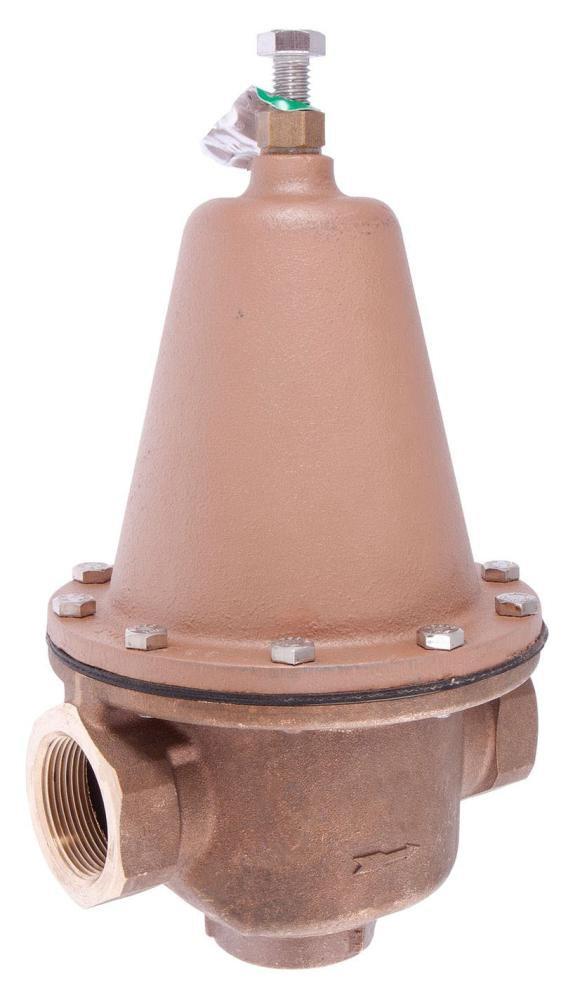

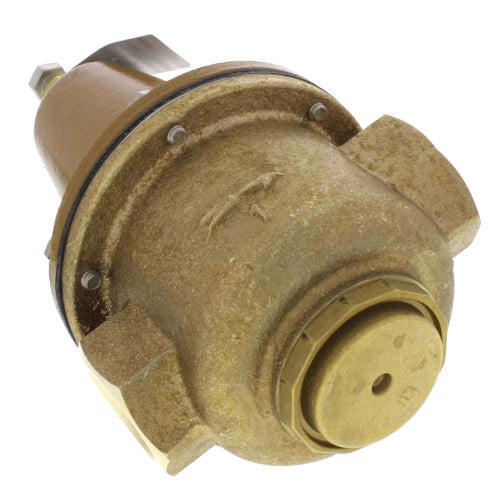

The Watts Series LF223 1 Inch Brass FNPT Pressure Reducing Valve (MPN: 0298533) is designed to reduce incoming water pressure to a manageable level, protecting plumbing systems and reducing water consumption. It features a lead-free brass body and components built for high capacity and performance.

• Lead-free brass construction
• Suitable for pressures up to 300 psi
• Adjustable pressure range from 25 to 75 psi

Product Highlights

This valve includes an enlarged diaphragm, a spring cage, and a seat orifice for high-capacity performance. It's built for easy servicing without removal from the line and features a sealed spring cage for outdoor or pit installations.

Product Information

Standard Information

• Brand: Watts
• MPN: 0298533
• UPC: 098268349702
• Applications: Commercial, institutional, and industrial

Technical Specifications

• Connection Size: 1 inch
• Connection Type: FNPT
• Dimension: 4.75 inches L x 8.625 inches H
• Disc Material: EPDM
• Material: Brass
• Pressure Rating: 25 - 75 psi
• Seat Material: Stainless Steel
• Series: LF223
• Temperature Rating: 33 - 160 degrees F
• Type: High Capacity
• Certifications: UPC, IAPMO listed, CSA, ASSE, NSF/ANSI 61-G certified
