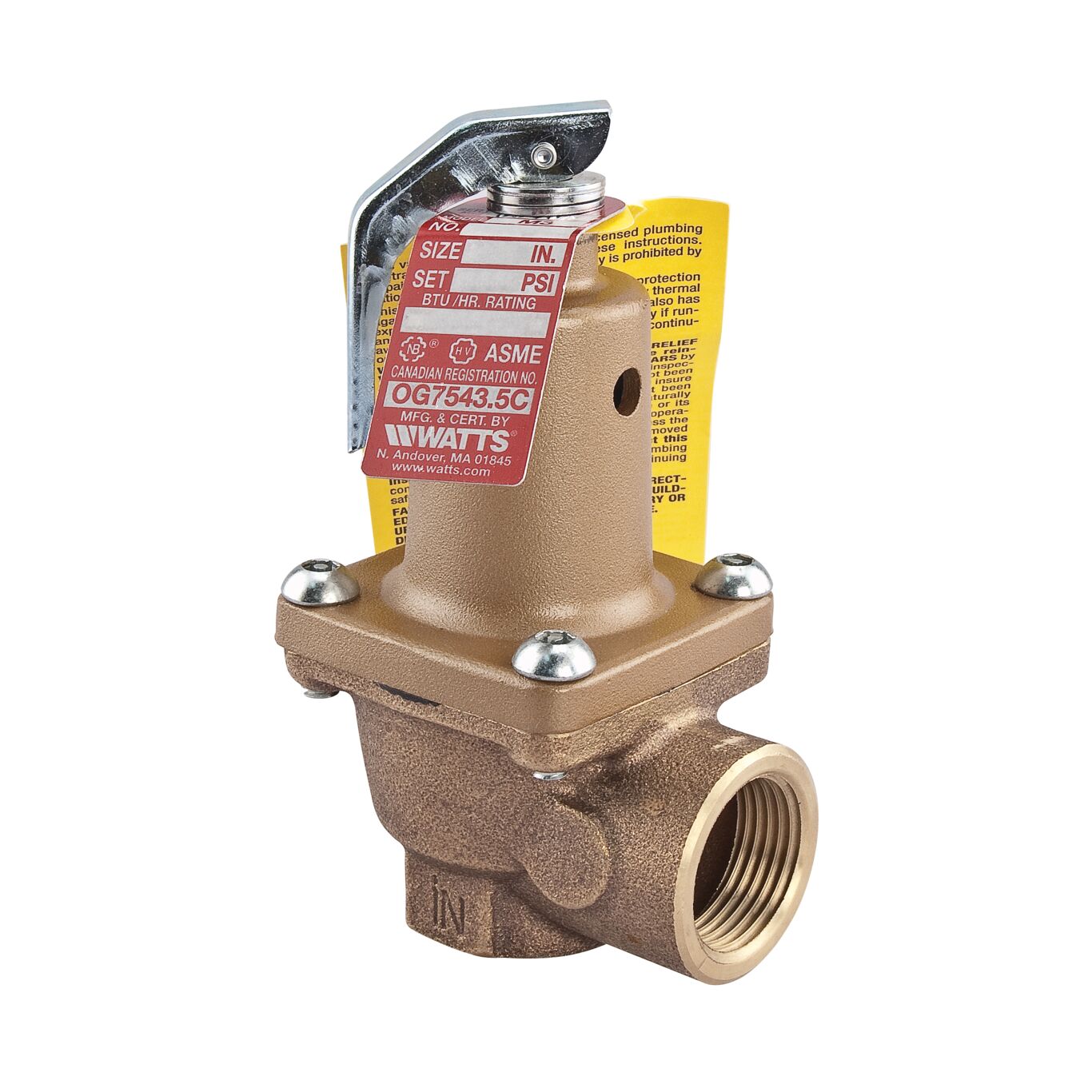

Watts 0275823 1 1/4 174A-055 Pressure Relief Valve

Product Description

The Watts Regulator Company 0275823 is a pressure relief valve designed for emergency safety relief. It features a nominal size of one and one-quarter inches with FNPT end style. This valve operates at a pressure rating of five psi and a temperature rating of two hundred fifty degrees Fahrenheit. It is suitable for water media and features a bronze body for durability.

• Automatic reseating mechanism
• Non-mechanical seat-to-disc alignment
• Soft seated to enhance functionality

Product Highlights

This valve is essential for pressure protection of hot water heating boilers. Its design allows for reliable operation in demanding environments.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• UPC: 098268013641

Technical Specifications

• Body Material: Bronze
• Dimensions: Four and one-quarter inches length x eight and one-half inches height
• Domestic/Import: Domestic
• End Style: FNPT
• Media: Water
• Nominal Size: One and one-quarter inches
• Pressure Rating: Five psi
• Series: 174A
• Temperature Rating: Two hundred fifty degrees Fahrenheit
