Watts 0275617 1 1/4 174A-045 Pressure Relief Valve

Product Description

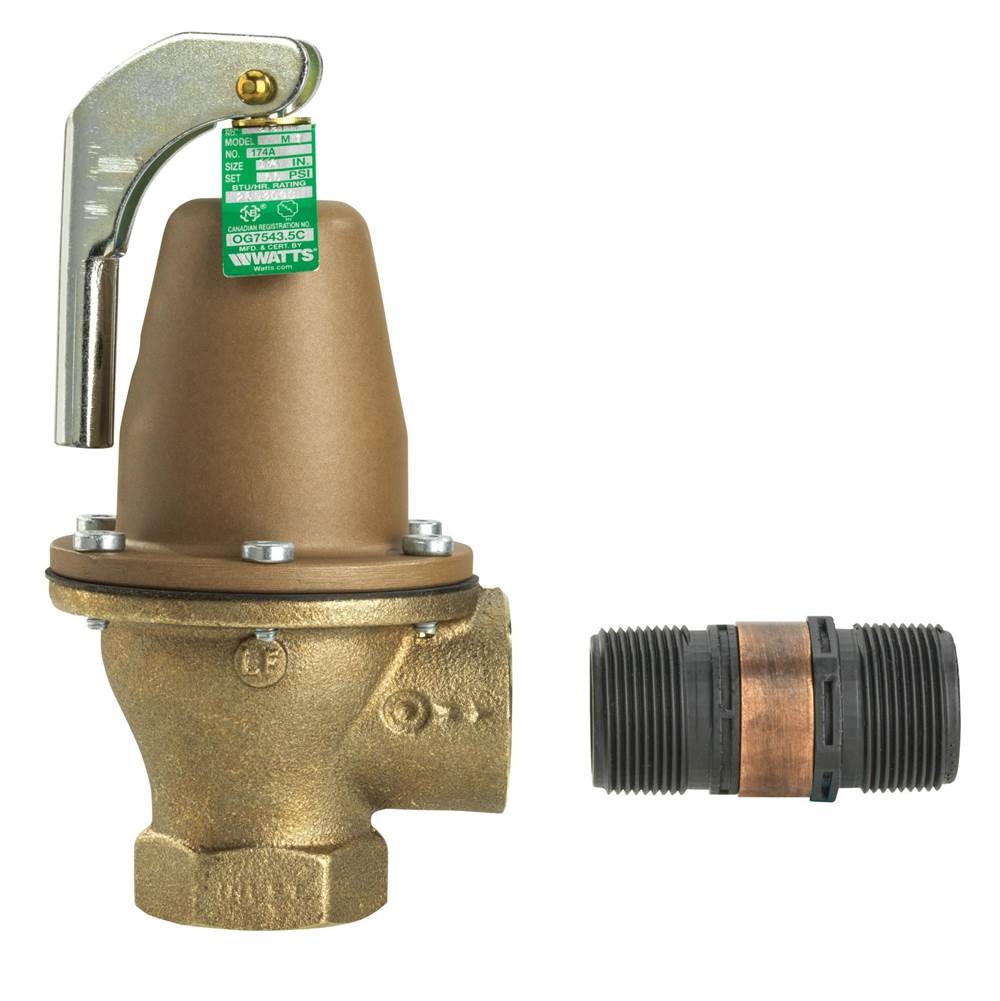

Watts Regulator Company offers the model 0275617, which is a pressure relief valve designed for hot water heating systems. It features a nominal size of one and one-quarter inches with a female NPT end style. This valve operates at a pressure rating of forty-five psi and can withstand temperatures up to two hundred fifty degrees Fahrenheit.

• Constructed from durable bronze material.
• Suitable for water media in safety relief applications.
• Designed to protect hot water heating equipment from excess pressure.

Product Highlights

This pressure relief valve ensures safe operation and efficient protection of heating systems.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• UPC: 098268013627

Technical Specifications

• Body Material: Bronze
• Dimensions: 4-1/4 inches length x 8-1/2 inches height
• Domestic/Import: Domestic
• End Style: FNPT
• Media: Water
• Nominal Size: 1-1/4 inches
• Pressure Rating: 45 psi
• Series: 174A
• Temperature Rating: 250 degrees Fahrenheit
