Watts 0275264 174A Bronze Water Pressure Relief Valve 1 in FNPT 100 psi

Product Description

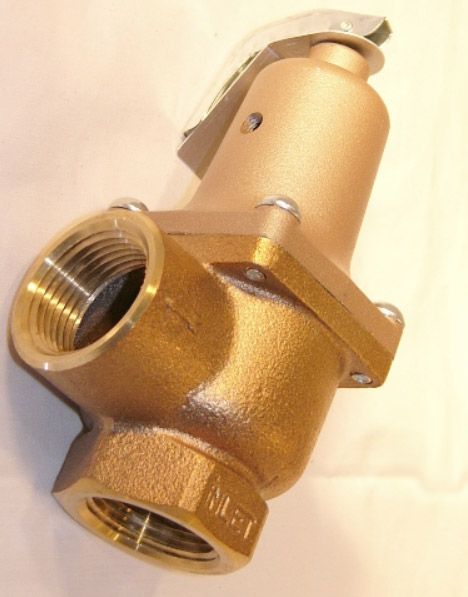

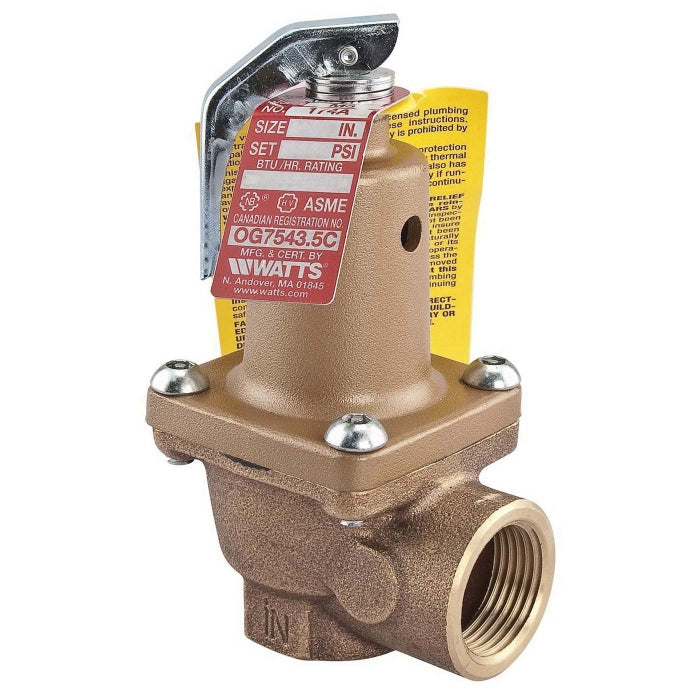

The Watts 0275264 174A Bronze Water Pressure Relief Valve is designed for hot water heating and domestic supply boiler applications to safeguard against excessive pressure. This valve features a bronze body with NPT threaded female inlet and outlet (drain) connections, a non-metallic disc-to-metal seating, a stainless steel spring, and a test lever. It is built to resist corrosive water conditions, sticking, and freezing while preventing water and sediment from trapping in the seat. The pressure relief setting is at 100 psi, with a high-pressure rating of up to 2,635,000 Btu/hr. This valve is for emergency safety relief and not an operating control.

• Automatic reseating
• Spring-loaded mechanism
• Non-mechanical seat alignment to prevent sticking and freezing

Product Highlights

Ideal for hot water boiler applications, this valve ensures safety with its durable construction and efficient relief mechanism.

Product Information

Standard Information

• Brand: Watts
• MPN: 0275264
• UPC: 098268013474

Technical Specifications

• Capacity: 2,635,000 Btu/hr
• Connection Size: 1 in
• Connection Type: FNPT
• Dimension: 3 in L x 5.75 in H
• Item Name: Water Pressure Relief Valve
• Material: Bronze
• Operator Type: Lever Handle
• Pressure Rating: 100 psi
• Series: 174A
• Temperature Rating: 250 deg F
• Standards/Certifications: ASME section IV, HV, NB, ISO 9001 standard
