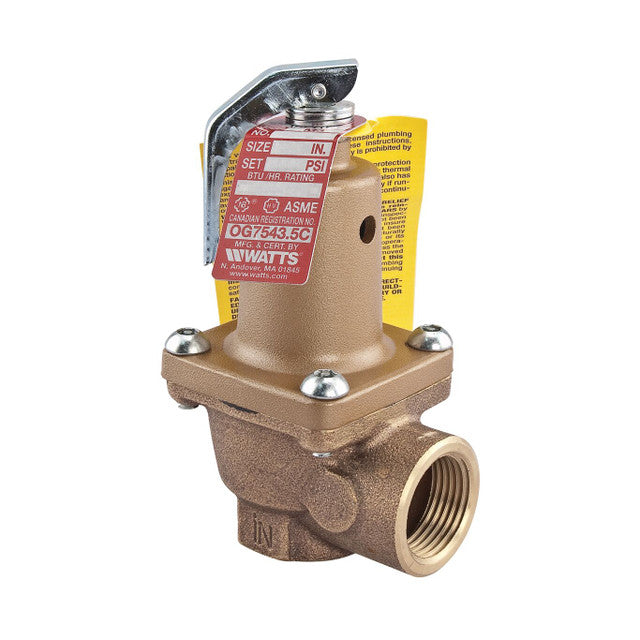

Watts 0275176 1 174A-080 Pressure Relief Valve 80 psi

Product Description

The Watts Regulator Company 0275176 is a pressure relief valve in the 174A series. This valve is designed to provide safety relief for hot water heating boilers. With an FNPT end style and a nominal size of one inch, it handles a pressure rating of eighty psi and a temperature rating of two hundred fifty degrees Fahrenheit. The valve has a bronze body and measures three inches in length by five and three-quarters inches in height.

• Soft seated design for reliable operation.
• Automatic reseating feature.
• Non-mechanical seat-to-disc alignment prevents sticking or freezing.

Product Highlights

This pressure relief valve is essential for safety and protection of hot water systems.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• UPC: 098268013429

Technical Specifications

• Body Material: Bronze
• Dimensions: 3 inches L x 5.75 inches H
• Domestic/Import: Domestic
• End Style: FNPT
• Media: Water
• Nominal Size: 1 inch
• Pressure Rating: 80 psi
• Series: 174A
• Temperature Rating: 250 degrees F
