Watts 0235098 HP-30PRO-P100 Hydronic Package Kit 1 in

Product Description

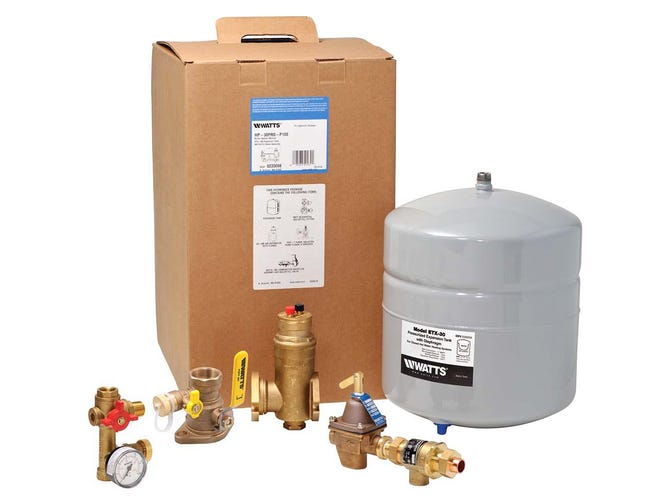

Watts 0235098 is the HP-30PRO-P100 hydronic package kit for 1 in closed-loop hydronic heating systems. The pre-assembled boiler trim combines an HP-BHM boiler header module, ETX-30 4.4-gallon diaphragm expansion tank, and B911S-M3 fill valve assembly to provide pressure regulation, expansion control, air elimination, and controlled boiler filling. Components are brass, steel, and composite and are rated for typical working pressures up to 100 psi and temperatures up to 240°F (115°C).

• Micro-bubble air separator and integrated vent for air elimination
• Includes ETX-30 4.4-gallon expansion tank and B911S-M3 fill valve with backflow prevention
• Pre-assembled HP-BHM boiler header module with 1 in NPT/IPS connections; rated to 100 psi and 240°F (115°C)

Product Highlights

Factory-matched boiler trim package with integrated air separation, expansion tank, and automatic fill for 1 in closed-loop hydronic systems

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0235098

Technical Specifications

• Brand: Watts
• Manufacturer: Watts Water Technologies, Inc.
• Manufacturer Part Number (MPN): 0235098
• Model/Series: HP-30PRO / HP-30PRO-P100
• Product Name: HP-30PRO-P100 Hydronic Package Kit
• Product Type: Pre-assembled hydronic boiler trim package
• Connection Size: 1 in
• Included Components: HP-BHM boiler header module; ETX-30 expansion tank (4.4-gallon diaphragm); B911S-M3 fill valve assembly (pressure reducing valve with backflow prevention); micro-bubble air separator; system purge valve with swivel flange; boiler fill fitting
• Expansion Tank Model/Capacity: ETX-30 (4.4-gallon diaphragm)
• Working Pressure: Typically up to 100 psi
• Maximum Temperature: Up to 240°F (115°C)
• Materials: Brass, steel, and composite components
• Connection Type: NPT threaded connections / IPS
• Mounting Configuration: Wall or near-boiler installation
• System Type: Closed-loop hydronic heating systems
• Air Elimination: Integrated micro-bubble air separator and vent within HP-BHM module
• Certifications: NSF/ANSI 61 certified components where applicable
• Weight: 21.56 lbs
• Series: HP-30PRO
• EAN/UPC: 098268524321
• Item Type: Boiler parts
