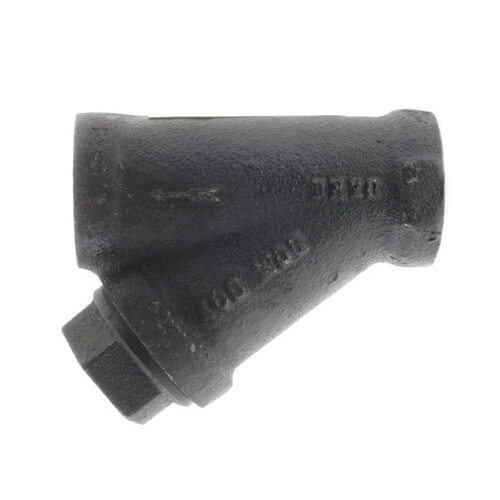

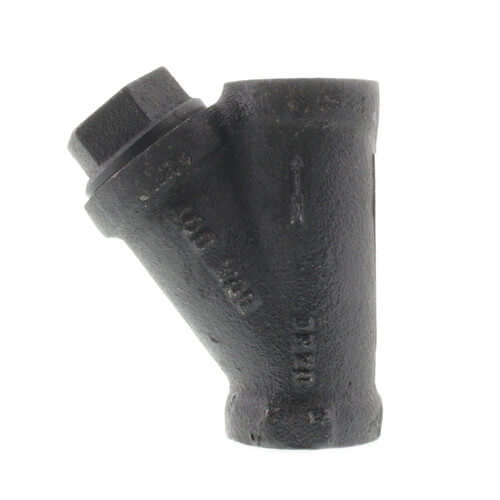

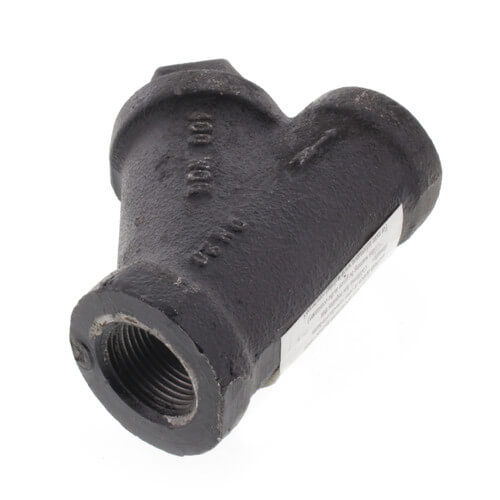

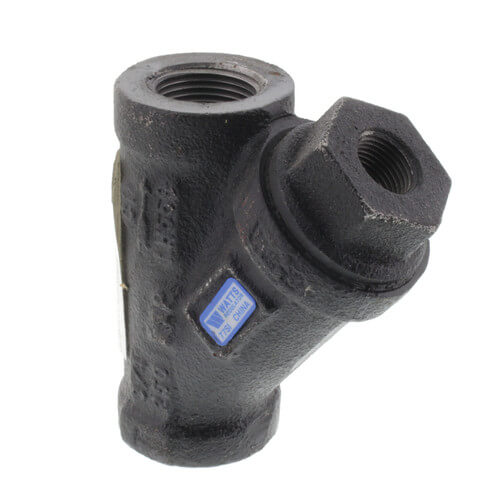

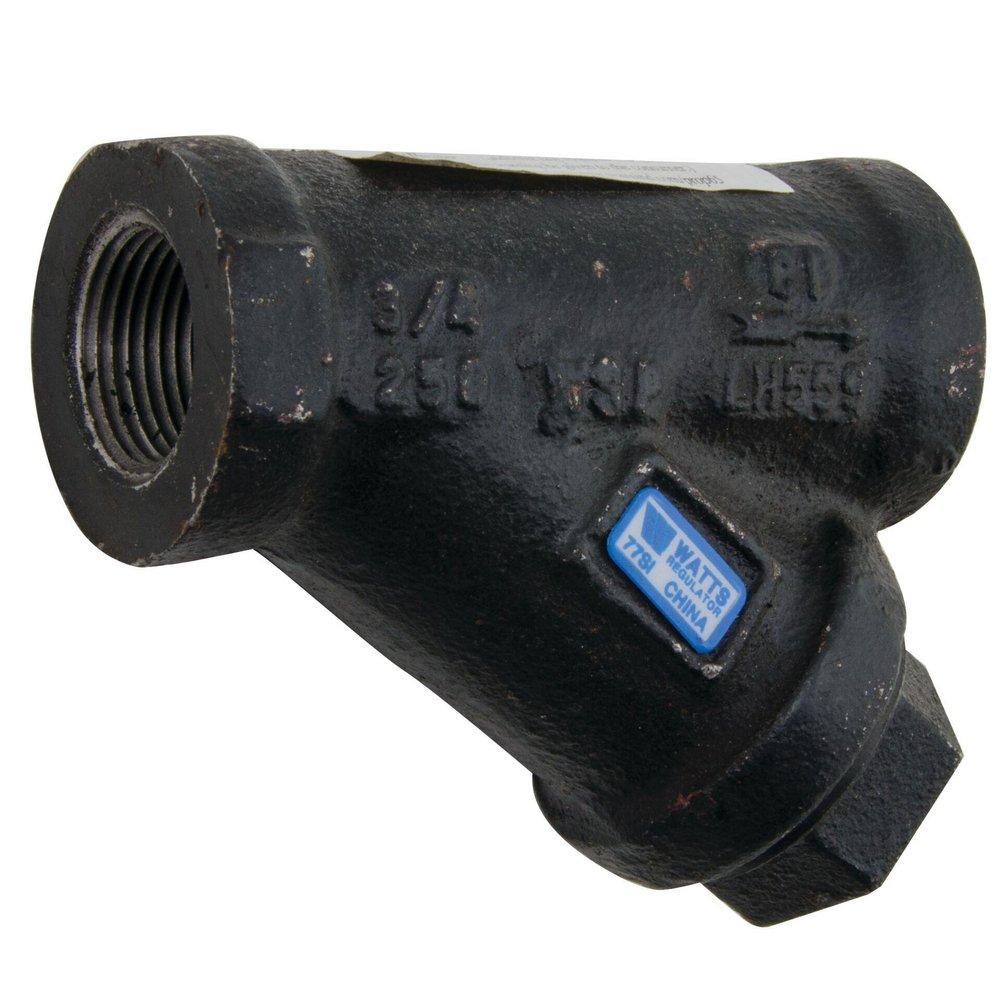

Watts 0220073 Series 77SI 250# Cast Iron IPS Wye Strainer

Product Description

The Watts 0220073 is a Series 77SI 250# Cast Iron IPS Wye Strainer designed for various plumbing applications. This strainer features a cast iron body with FNPT threaded connections, ensuring durability and strength. It is suitable for non-potable water applications only.

• Cast iron body construction
• Wye pattern design
• Threaded end connections for easy installation

Product Highlights

This strainer is equipped with a stainless steel screen and a tapped retainer cap, which includes a non-asbestos gasket and a blow-down connection. The machined seat allows for a self-aligning screen that ensures a perfect fit.

Product Information

Standard Information

• Manufacturer: Watts
• Part Number: 0220073

Technical Specifications

• Body Material: Cast Iron
• Connection Type: FNPT
• Nominal Size: 3/4 inches
• Blow-Off Size: 3/8 inches NPT
• Overall Length: 3-3/4 inches
• Maximum Pressure: 400 psi at 150°F, 250 psi at 406°F
• Application: Commercial and Industrial Steam and Liquid
• Standards: ASSE Listed, FM Approved, UL Listed, ULC Listed, USC Certified
• Warranty: 1 Year Limited
