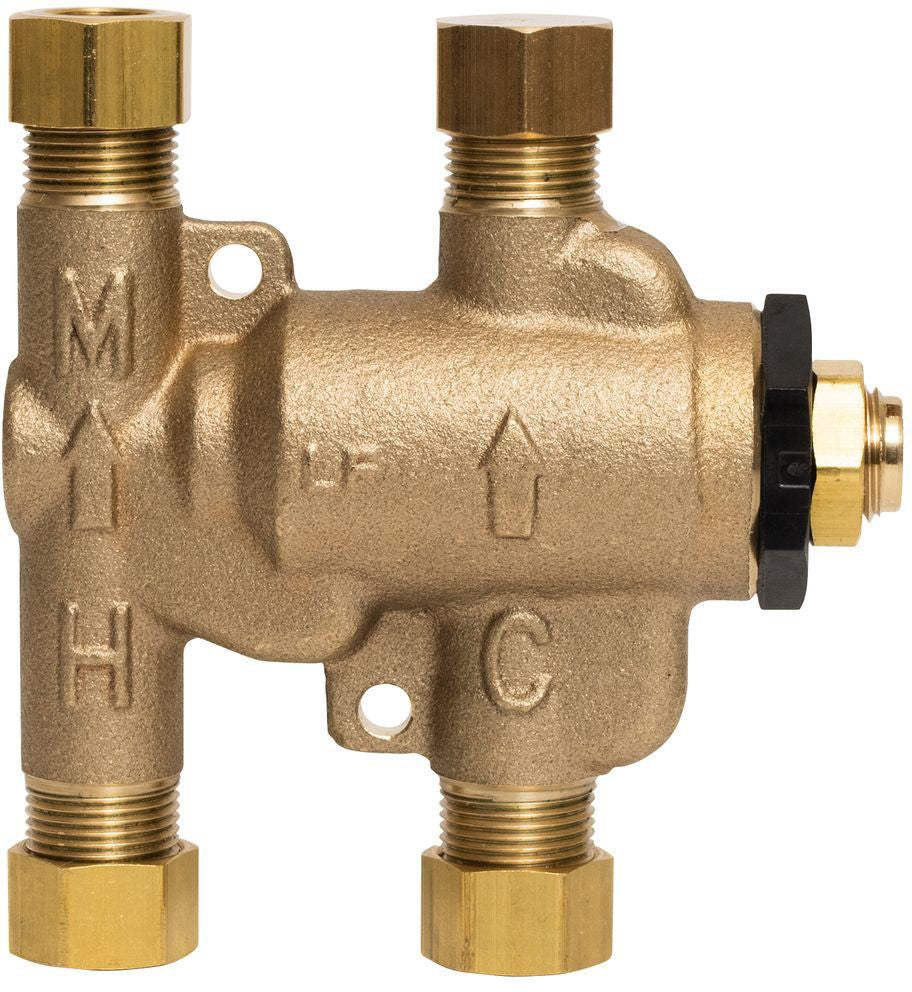

Watts 0204143 Under Sink Guardian Thermostatic Mixing Valve 3/8 Inch

Product Description

The Watts Under Sink Guardian Thermostatic Mixing Valve, MPN 0204143, is designed to regulate water temperature in residential and commercial applications. This valve connects to faucets and ensures safe water temperatures, preventing scalds while delivering consistent hot and cold water mixtures.

• Series USG-B-M2 valve is suitable for various faucet installations.
• Simple installation between stop valves and faucet.
• Lead-free construction meets regulatory standards.

Product Highlights

The thermostatic mixing valve is easy to use and allows precise temperature control.

Product Information

Standard Information

• Manufacturer: Watts
• Model: 0204143

Technical Specifications

• Type: Thermostatic Mixing Valve
• Nominal Size: 3/8 Inch x 3/8 Inch
• End Connection: Compression x Compression
• Body Material: Brass
• Disc Material: Buna-N
• Flow Rate: 0.25 to 2.25 GPM
• Set Temperature Range: 105 Deg F
• Temperature Rating: 39 to 85 Deg F (Cold), 120 to 180 Deg F (Hot)
• Pressure Rating: 150 PSI
• Application: Suitable for both Residential and Commercial use
• Applicable Standards: ASSE 1070, NSF/ANSI/CAN 61G, CUPC
• Lead-Free: Yes
