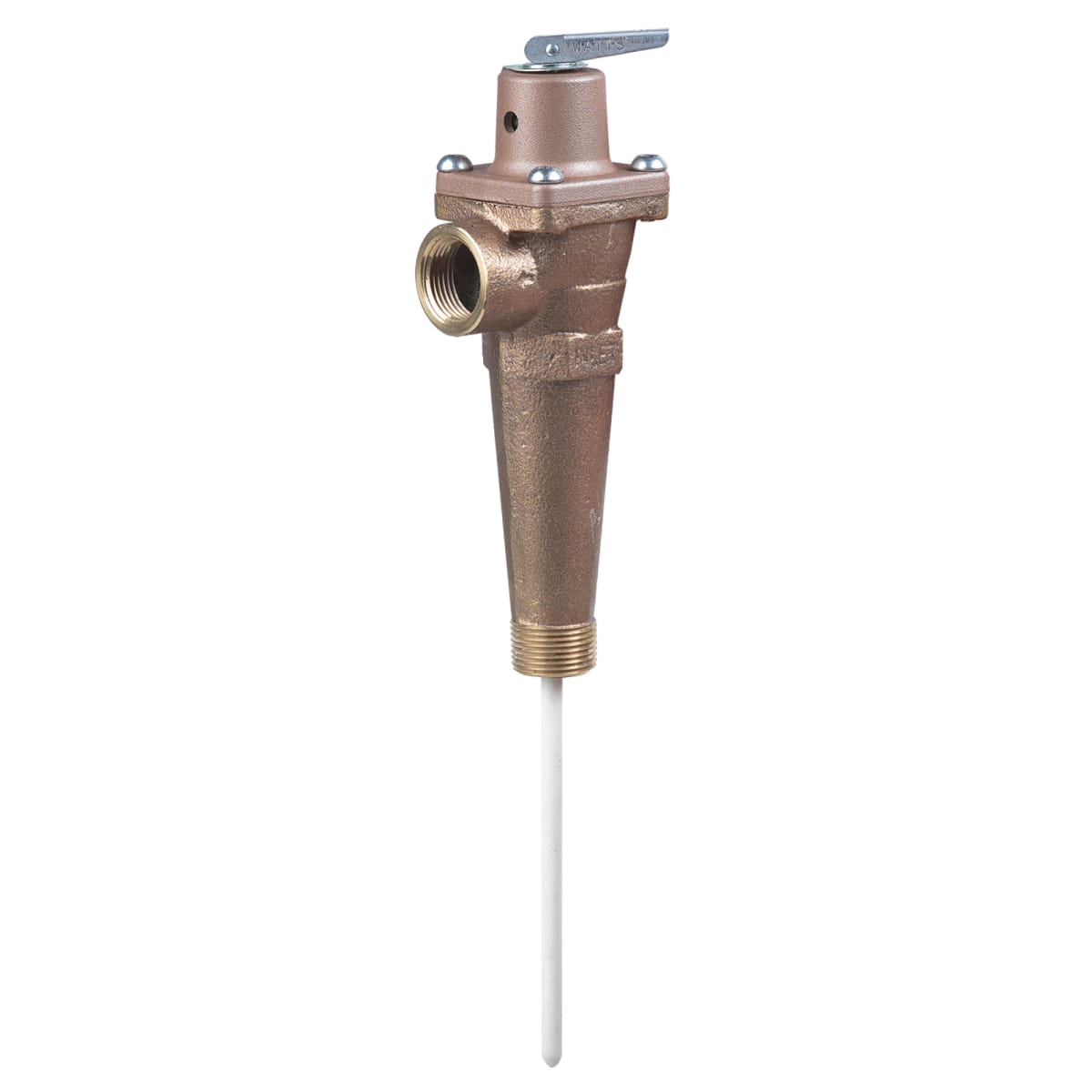

Watts 0163801 3/4 Bronze Automatic Reseating Temp/Pressure Relief Valve 150 psi 210 F

Product Description

The Watts 0163801 is a three-quarter inch bronze automatic reseating temperature and pressure relief valve designed for commercial applications. This valve is installed directly in tank tappings, providing essential temperature and pressure protection for hot water supply tanks and heaters. It operates under a maximum relief pressure of 150 psi and a temperature relief of two hundred ten degrees Fahrenheit.

• Bronze body with NPT male inlet and female outlet connections
• Test lever for manual operation and testing
• Thermo-bonded coated thermostat for reliable temperature management

Product Highlights

This valve features an extended shank of one and twenty-one thirty-seconds inches and includes tamper-resistant bonnet screws to enhance security.

Product Information

Standard Information

• Product ID: 6cbf204f-fef9-407f-9d69-b026011b1dc2
• Brand: Watts

Technical Specifications

• Type: Temperature Pressure Relief Valve
• Material: Bronze
• Pressure Range: 75 to 150 PSI
• Connection Size: 3/4 inch
• Connection Type: Male Threaded
• Thermostat Length: 3 1/2 inches
