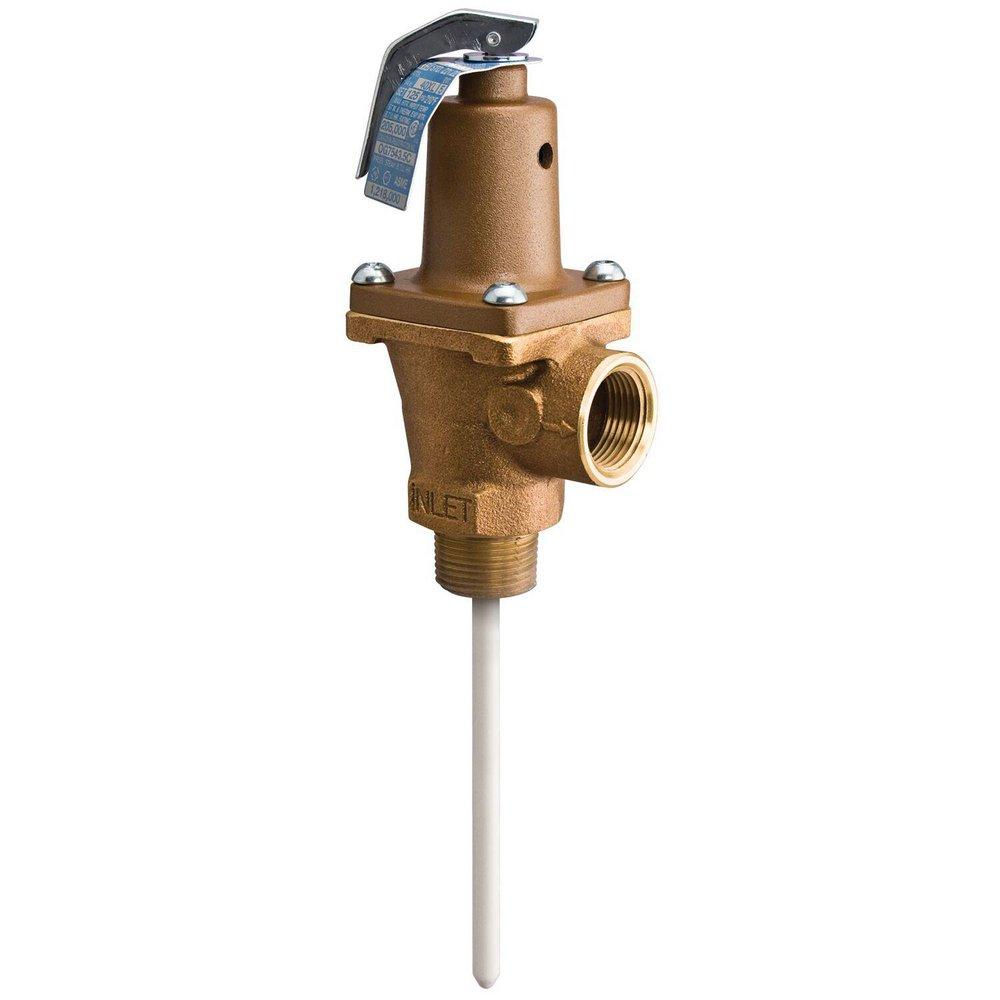

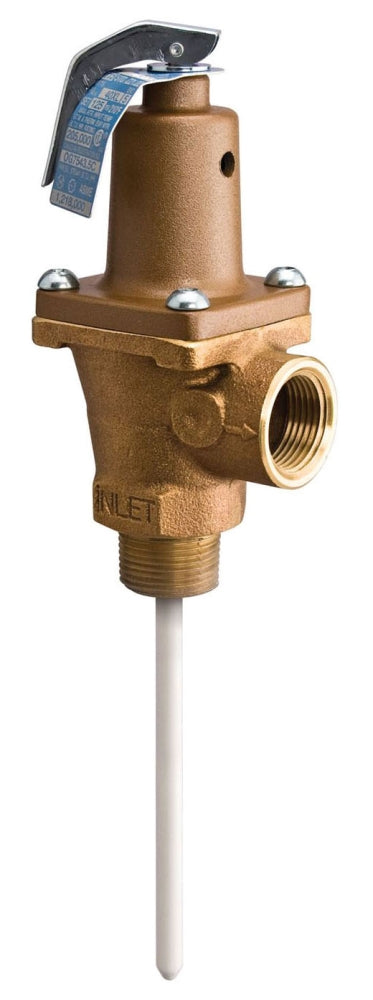

Watts 0163765 Temperature and Pressure Relief Valve 1 Inch Bronze 75 to 150 PSI

Product Description

The Watts 0163765 Temperature and Pressure Relief Valve is designed for commercial water heater applications, ensuring safety by managing both temperature and pressure. This bronze valve, compatible with both male threaded and female threaded connections, operates automatically.

• Equipped with a non-mechanical seat to disc alignment for robust performance.
• Features an extended copper thermostat with a test lever for easy operation.
• Includes tamper-resistant bonnet screws for added security.

Product Highlights

Constructed from high-quality bronze for durability and reliability in various commercial settings. Its thermostat is accurate and proven, supporting a temperature capacity up to 210 degrees Fahrenheit and a pressure range from 75 to 150 PSI.

Technical Specifications

• Inlet Size: 1 Inch
• Outlet Size: 1 Inch
• Pressure Rating: 75 to 150 PSI
• Temperature Rating: 210 Deg F
• Thermostat Probe Length: 7 Inch
• Body Material: Bronze
• End Connections: Male Threaded x Female Threaded
• Standards/Certifications: ANSI Z21.22, CSA, MIL-V-136-12D, NB, HV
