Watts 0125563 Series LFBRVM1 3/4 in Relief Valve

Product Description

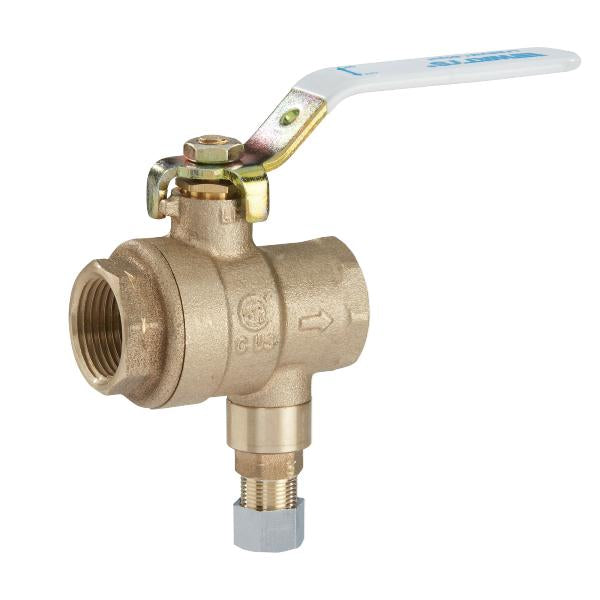

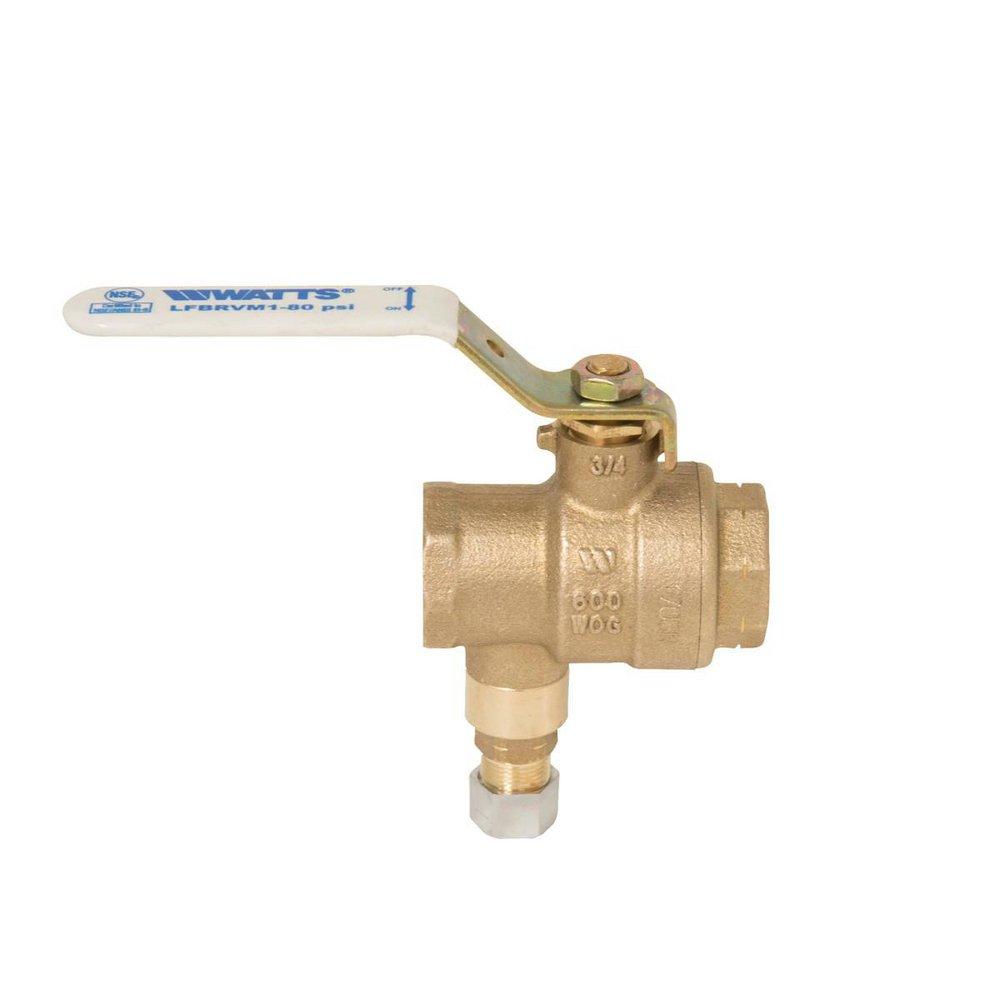

The Watts 0125563 is a combination ball valve and relief valve designed for water heater applications. This device offers a reliable solution to manage water supply and protect against excess pressure due to thermal expansion.

• Low profile design for easy installation
• Full port ball valve with lead-free construction
• Blowout-proof stem for enhanced safety

Product Highlights

The Watts LFBRVM1 series functions efficiently in residential and commercial setups. It meets lead-free standards, ensuring safety for drinking water applications.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Model: LFBRVM1

Technical Specifications

• Nominal Size: 3/4 inches
• Inlet to Outlet Length: 2-5/8 inches
• Pressure Rating: 125 psi relief valve / 400 psi ball valve
• Temperature Rating: 40 to 180 degrees Fahrenheit
• Media: Water
• Body Material: Bronze
• Ball Material: Chrome plated brass
• End Style: FNPT x Compression
