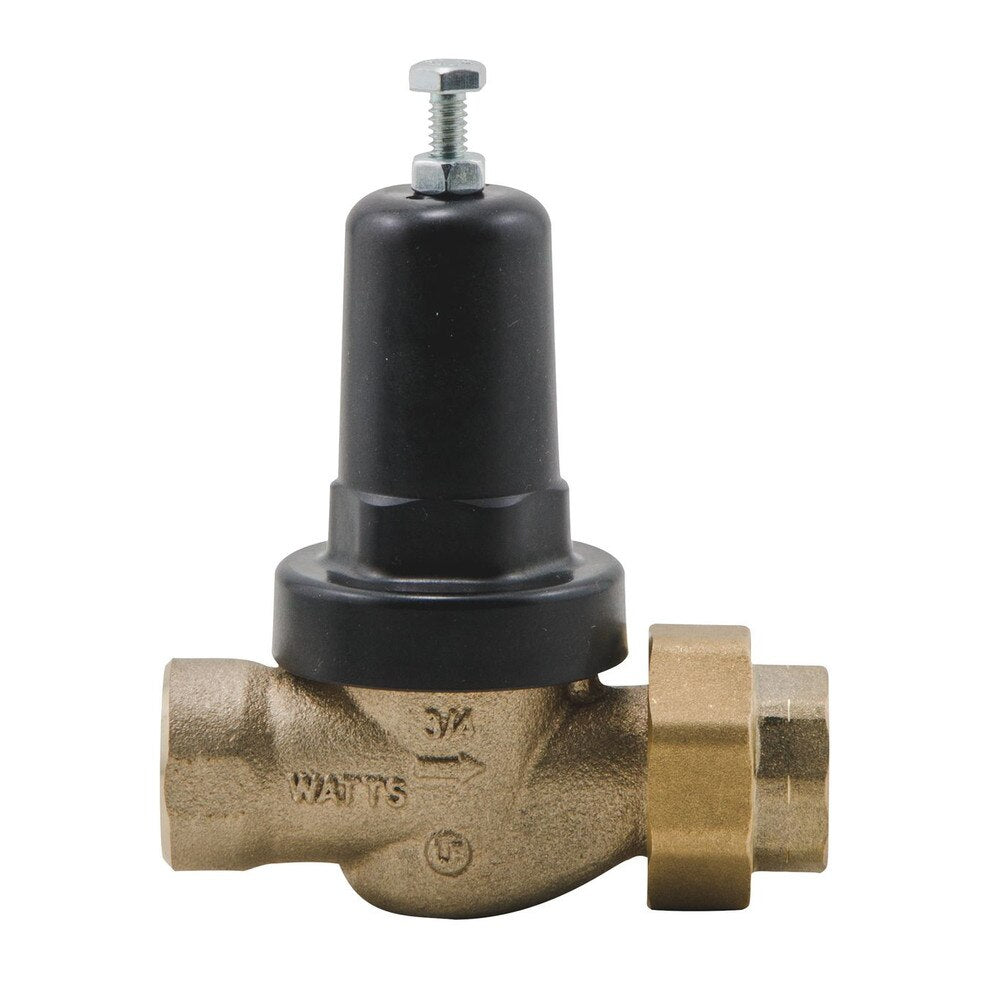

Watts 0125561 3/4 LFRC105-THDxUT Pressure Reducing Valve

Product Description

Watts 0125561 is a pressure reducing valve designed to regulate incoming water pressure. This valve features a three-fourth inch size with NPT inlet and FNPT union outlet connections. It operates efficiently within a pressure range of twenty-five to seventy-five psi and can withstand temperatures from thirty-three to one hundred eighty degrees Fahrenheit. The valve body is constructed from lead-free copper silicon alloy, ensuring safety and compliance.

• Adjustable pressure range from twenty-five to seventy-five psi
• Compact and easy-to-maintain design
• Bypass feature to control thermal expansion pressure

Product Highlights

This valve is ideal for both commercial and residential plumbing applications. Its compact design allows for easy installation and servicing.

Product Information

Standard Information

• Body Material: Copper Silicon Alloy
• Domestic/Import: Import

Technical Specifications

• Nominal Size: 3/4 in
• Pressure Range: 25 to 75 psi
• Temperature Rating: 33 to 180 deg F
• Inlet to Outlet Length: 3-15/16 in
• Top to Inlet Center: 4-3/4 in
• Softgoods Material: Reinforced EPDM Diaphragm
• Series: LFRC105
