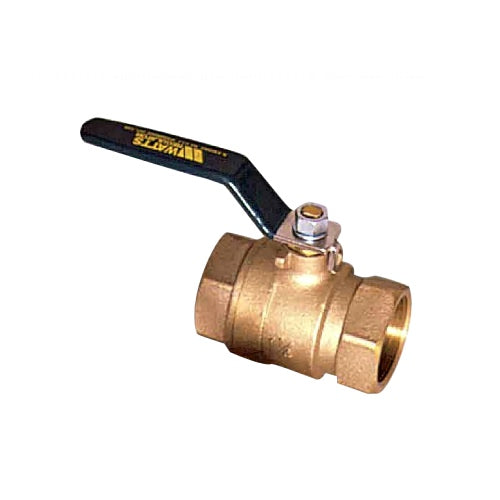

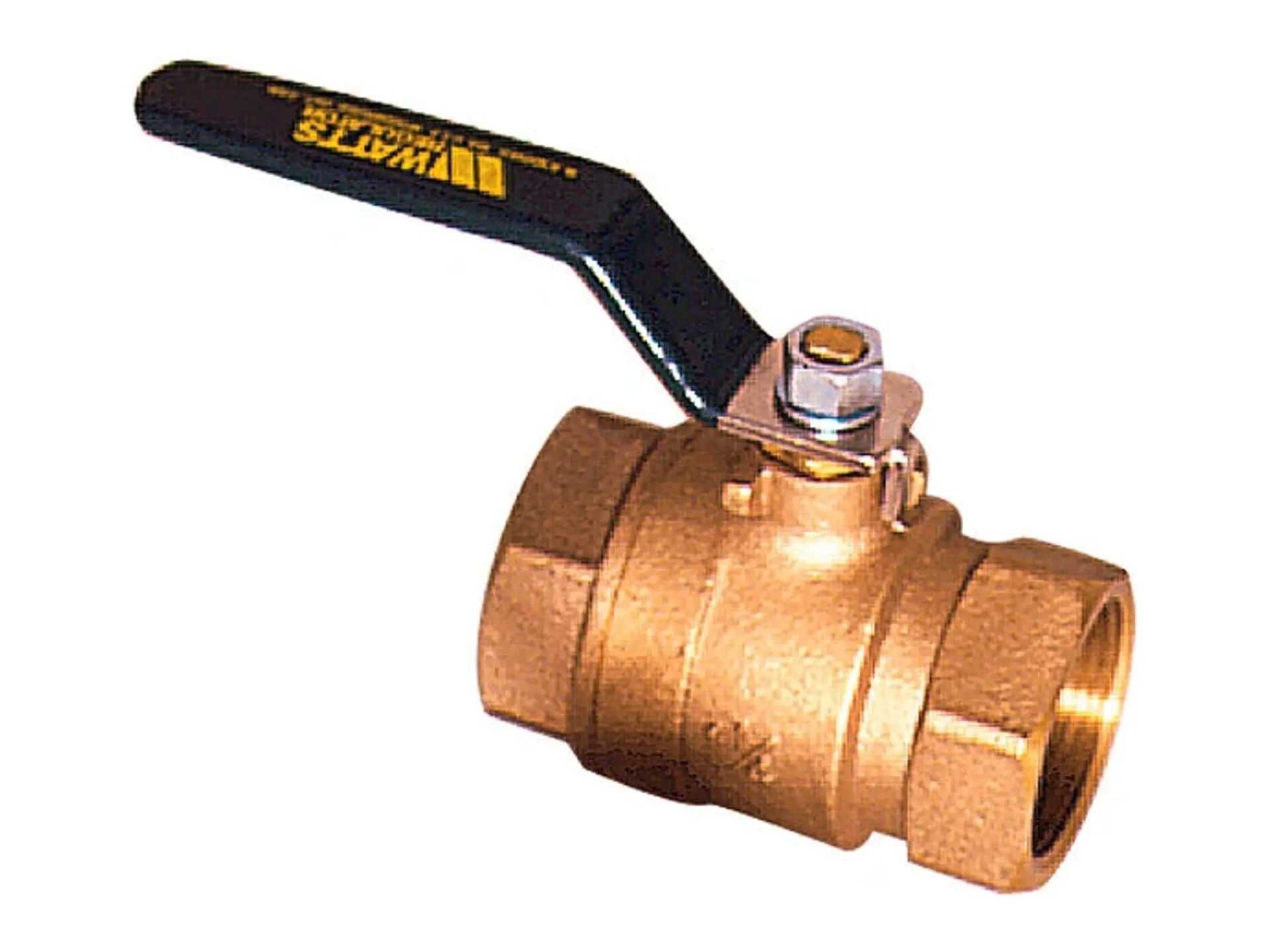

Watts 0125027 Lead Free Bronze 2-Piece Full Port Ball Valve 3/4 In

Product Description

The WATTS 0125027 is a 3/4 inch 2-piece full port lead free ball valve used in commercial and industrial applications for pipe lines utilizing a full range of liquids and gases. This valve complies with MSS-SP-110 and features a lead free body, with threaded end connections, bottom-loaded blowout proof stem and virgin PTFE seat. The full port design ensures maximum flow capacity and minimal pressure drop.

• Lead free construction
• Virgin PTFE seat
• Bottom loaded blowout proof stem

Product Highlights

This ball valve features threaded end connections and a full port design for maximum flow capacity. Suitable for a full range of liquids and gases.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0125027

Technical Specifications

• Ball Material: Chrome Plated Brass
• Body Finish: Bronze
• Body Material: Bronze
• Brand: Watts
• Buy American Act Compliant: NO
• Control Type: Tee Handle
• CV Rating: 30 GPM
• Inlet Connection Size: 3/4 IN
• Inlet Connection Size-Metric: 20 MM
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Lead Free: YES
• Maximum Temperature-Fahrenheit: 350
• Minimum Temperature - Celsius: -18.00
• Minimum Temperature-Fahrenheit: 0
• Outlet Connection Size: 3/4 IN
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: FPT
• Part Number: 0125027
• Port Type: Full
• Seat Material: Virgin PTFE
• Series: LFFBV
• Stem Packing Material: Virgin PTFE
• Stem Shaft Material: Brass
• Stem Type: Bottom Loaded Blowout Proof
• Thrust Washer Material: Virgin PTFE
• Valve Style: 2-piece
• WOG Rating: 600 PSI
• Temperature Range: 0°F – 350°F ( -18°C – 177°C) @ 50psi (3.4 bar)
• Maximum Working Pressure: 600psi (41 bar) WOG non-shock @ 100°F (38°C) and 125psi (8.6 bar) WSP
• Valve Design: Two Piece
• Washer Material: Virgin PTFE
• Wog (psi): 600 psi
• Manufacturer: Watts
• UPC: 098268846430
• Model: LFFBV 3/4
• Serie: LFFBV
• CA Prop 65 In Scope: Yes
