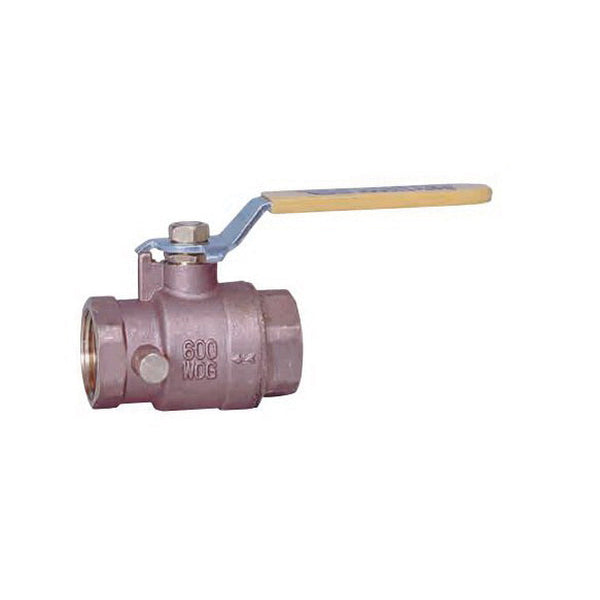

Watts 0123625 1/2 LFIT6300 Ball Valve NPT End Style

Product Description

The Watts Regulator Company 0123625 is a ball valve designed for fluid control in plumbing systems. It features a two-piece construction and is rated for up to 600 psi pressure. This valve is suitable for gas and liquid media, making it versatile for various applications.

• Lead-free brass construction
• Full port design for maximum flow
• Temperature range from 0 to 350 degrees Fahrenheit

Product Highlights

This ball valve is ideal for commercial and industrial use. The quick quarter-turn operation ensures efficient fluid control. The valve includes a drain port for easy maintenance.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Series: LFIT6300

Technical Specifications

• Ball Material: Copper Silicon Alloy
• Body Material: Brass
• End Style: NPT
• Inlet to Outlet Length: 2 inches
• Nominal Size: 1/2 inches
• Port Type: Full
• Pressure Rating: 600 psi
• Softgoods Material: PTFE/NBR
• Temperature Rating: 0 to 350 degrees Fahrenheit
• Top to Inlet Center: 1-9/16 inches
• Trim Material: Brass Stem
• Type: 2-Piece
