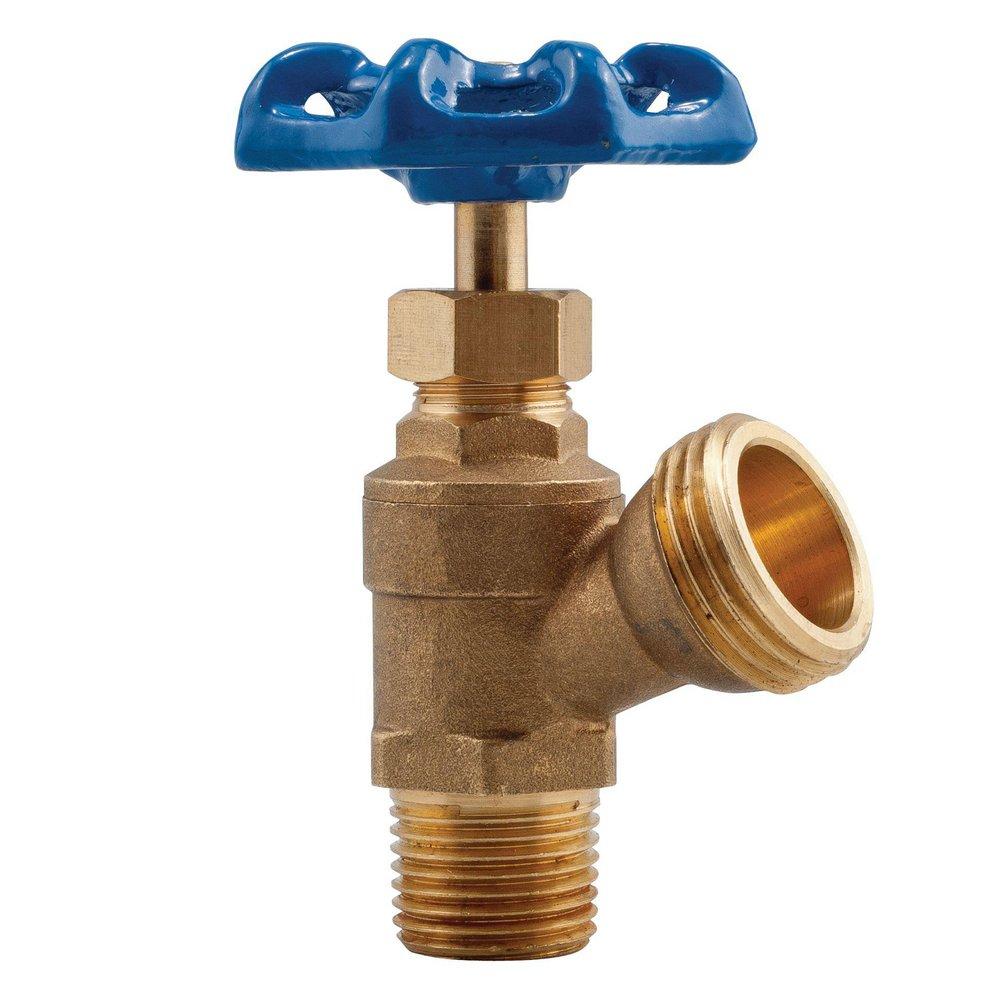

Watts 0123618 Series LFBD 1/2 in. Male Threaded x GHT Boiler Drain Valve

Product Description

The Watts 0123618 Series LFBD is a 1/2 inch angle pattern boiler drain valve. This valve is designed for both commercial and residential hydronic heating systems. Its construction features a lead-free body suitable for water service use.

• Lead-free construction
• Dual inlet connections: male IPS or solder inlet
• Hose thread outlet

Product Highlights

This boiler drain valve provides positive shutoff for boiler drain applications. It consists of a brass body, PTFE soft goods, and operates under a maximum pressure of 200 psi. The valve is equipped with a cast iron handwheel for easy operation.

Product Information

Standard Information

• Brand: Watts
• MPN: 0123618

Technical Specifications

• Actuator Type: Handwheel
• Application: Commercial and Residential
• Body Material: Brass
• Domestic/Import: Import
• End Style: Male IPS/Solder x Hose
• Inlet to Outlet Length: 1-1/3 inches
• Pressure Rating: 200 psi
• Series: LFBD Series
• Softgoods Material: PTFE
• Temperature Rating: 180 degrees Fahrenheit
• Top to Inlet Center: 3-1/2 inches
