Watts 0123135 1 1/4 LFS777SM1-20

Product Description

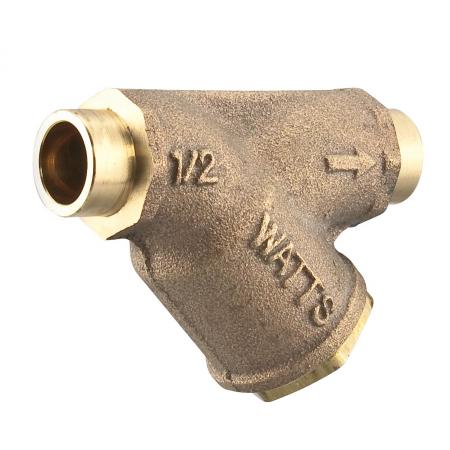

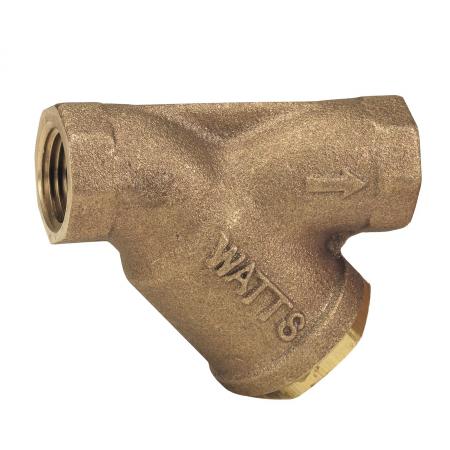

The Watts Regulator Company 0123135 is a reliable wye strainer from the LFS777 series. It features a nominal size of one and one-quarter inches and an overall length of five and five-eighths inches. The strainer utilizes a solder connection and includes EPDM softgoods. The body is made from cast copper silicon alloy.

• Features a retainer cap tapped for closure plug
• Constructed with a solid retainer cap including a gasket
• Product is compliant with the Buy American Act

Product Highlights

This wye strainer is ideal for both liquid and steam service applications. It has a lead content below 0.25% by weight in accordance with safety standards, ensuring safe use.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• UPC: 098268664669

Technical Specifications

• Body Material: Cast Copper Silicon Alloy
• Connection Type: Solder
• Nominal Size: 1-1/4 inches
• Overall Length: 5-5/8 inches
• Series: LFS777
• Softgoods Material: EPDM
• Pressure Rating: 400 psi WOG non-shock at -20 to 100 degrees Fahrenheit
• WSP Rating: 125 psi at 353 degrees Fahrenheit
