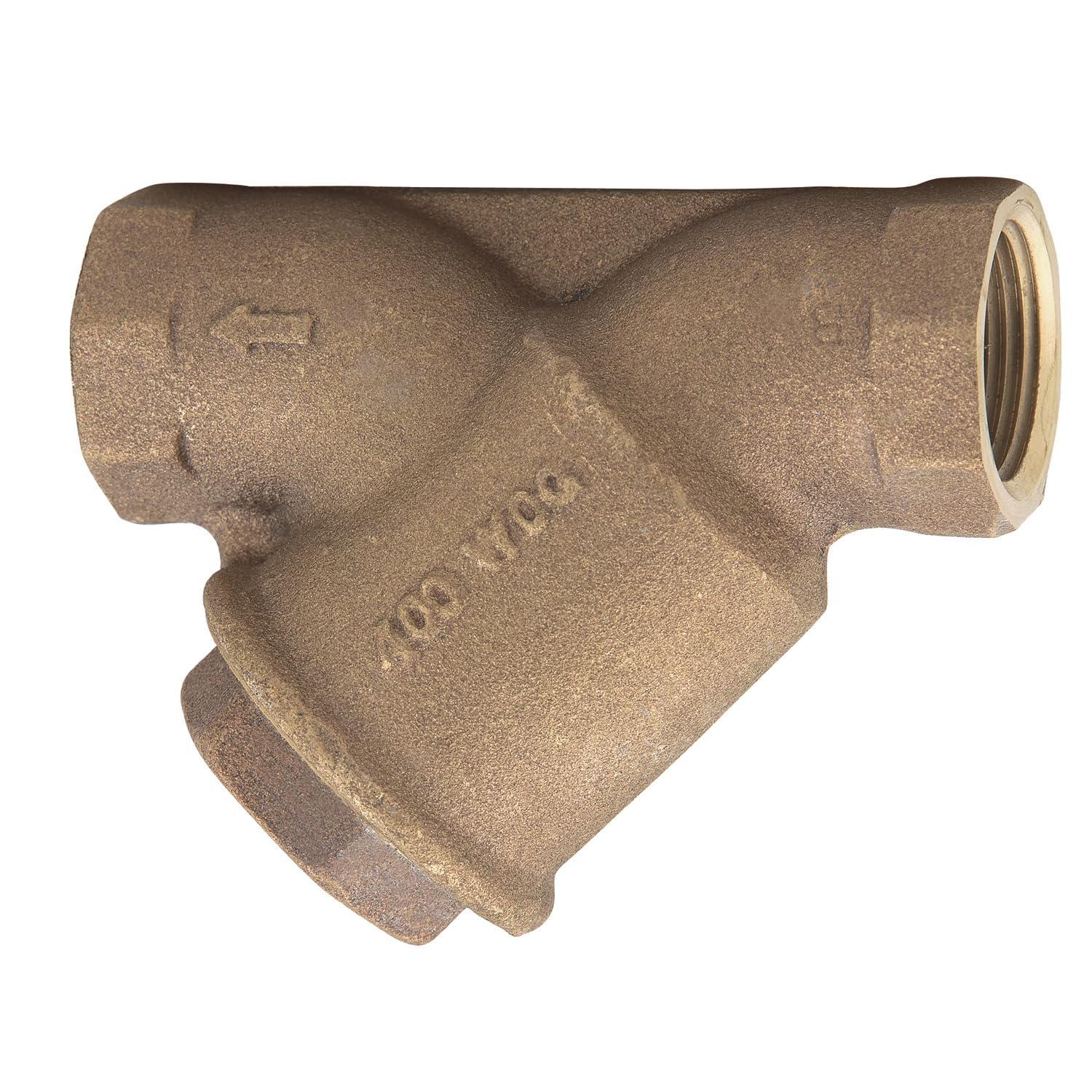

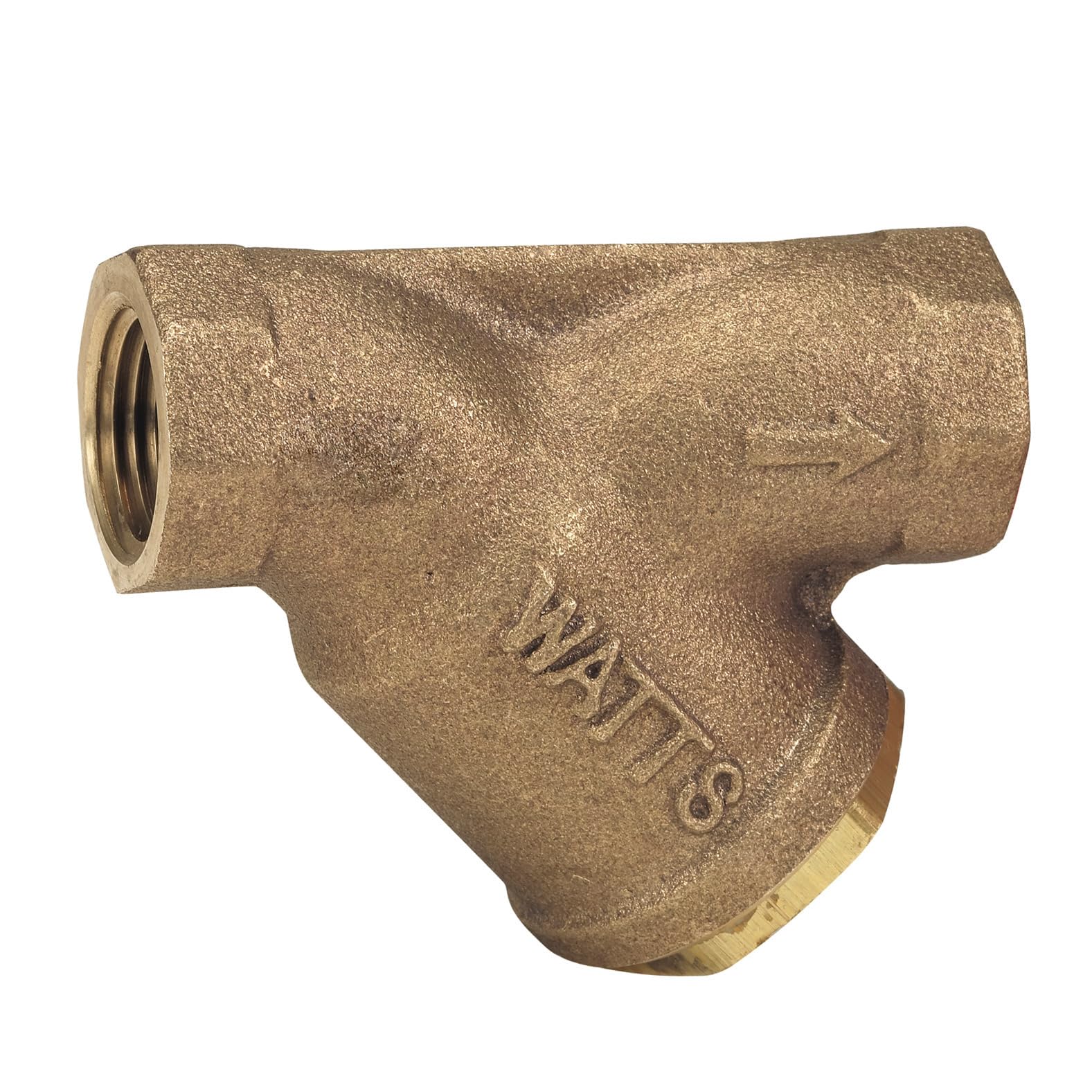

Watts 0123080 lf777m1-20 lead free wye pattern strainer 1/2 inch

Product Description

The Watts 0123080 LF777 Series wye pattern strainer protects system components from dirt, rust, and debris. It features a 20-mesh stainless steel screen, ideal for water, oil, and gas systems. This lead-free strainer has 1/2 inch NPT female threaded inlet and FPT female threaded outlet connections, plus a female threaded blowdown outlet and a solid retainer cap with gasket. Constructed from lead-free cast copper silicon alloy, it is pressure rated to 400 psi WOG at 210 F and 125 psi WSP at 353 F.

• Protects system components from dirt, rust, and debris.
• Features a 20-mesh stainless steel screen for effective filtration.
• Lead-free design with 1/2 inch NPT female inlet, FPT female outlet, and blowdown connection.

Product Highlights

Pressure rated to 400 psi WOG at 210 F and 125 psi WSP at 353 F, constructed from lead-free cast copper silicon alloy.

Product Information

Standard Information

• Brand: WATTS
• Manufacturer Part Number: 0123080

Technical Specifications

• Brand: Watts
• MPN: 0123080
• Product Type: Strainer
• Model: LF777M1-20
• Series: LF777
• Body Material: Lead Free Cast Copper Silicon Alloy
• Body Pattern: Wye
• Strainer Type: Wye
• Lead Free: Yes
• Inlet Connection Size: 1/2 inch
• Inlet Connection Type: Female Threaded
• Inlet Thread Type: NPT
• Outlet Connection Size: 1/2 inch
• Outlet Connection Type: Female Threaded
• Outlet Thread Type: FPT
• Blowdown Outlet Connection: Female Threaded
• Screen Material: Stainless Steel
• Screen Size: 20 Mesh
• Retainer Cover Type: Gasketed Cap
• Cover Material: Lead Free Copper Silicon Alloy
• Gasket Material: Garlock
• Pressure Rating WOG: 400 psi (28 bar) at 210 F (99 C)
• Pressure Rating WSP: 125 psi (8.6 bar) at 353 F (178 C)
