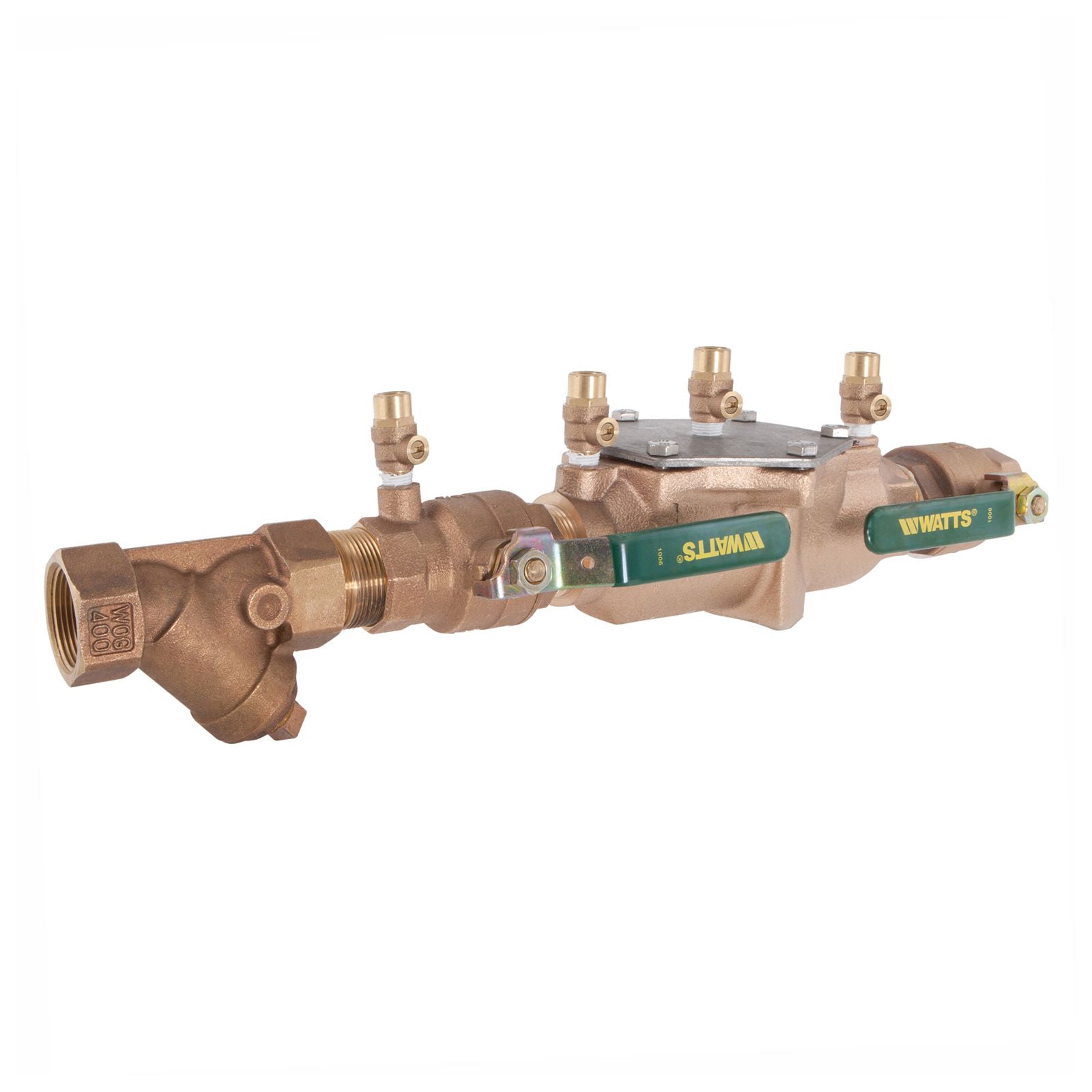

Watts 0122619 1 1/2 LF007M2-QT-S Double Check Valve Assembly

Product Description

The Watts brand, MPN 0122619, represents a double check valve assembly designed for applications in plumbing systems. This product is suitable for installations where backflow prevention is necessary. The valve prevents the backflow of contaminated water into the potable supply. It adheres to plumbing codes and standards for safety.

• Lead free construction
• Modular design for easy maintenance
• Replaceable seats and discs

Product Highlights

This assembly includes a quarter-turn ball valve for shutting off flow and is ideal for use in non-health hazard cross-connections.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Product Name: 1 1/2 LF007M2-QT-S

Technical Specifications

• Ball Valve Type: Quarter-Turn Ball Valve
• Body Material: Cast Copper Silicon Alloy
• Dimensions: 25-1/16 in L
• Domestic/Import: Domestic
• Finish: Fused Epoxy Coated
• Nominal Size: 1-1/2 in
• Pressure Rating: 175 psi
• Series: LF007
• Temperature Rating: 33 to 180 deg F
