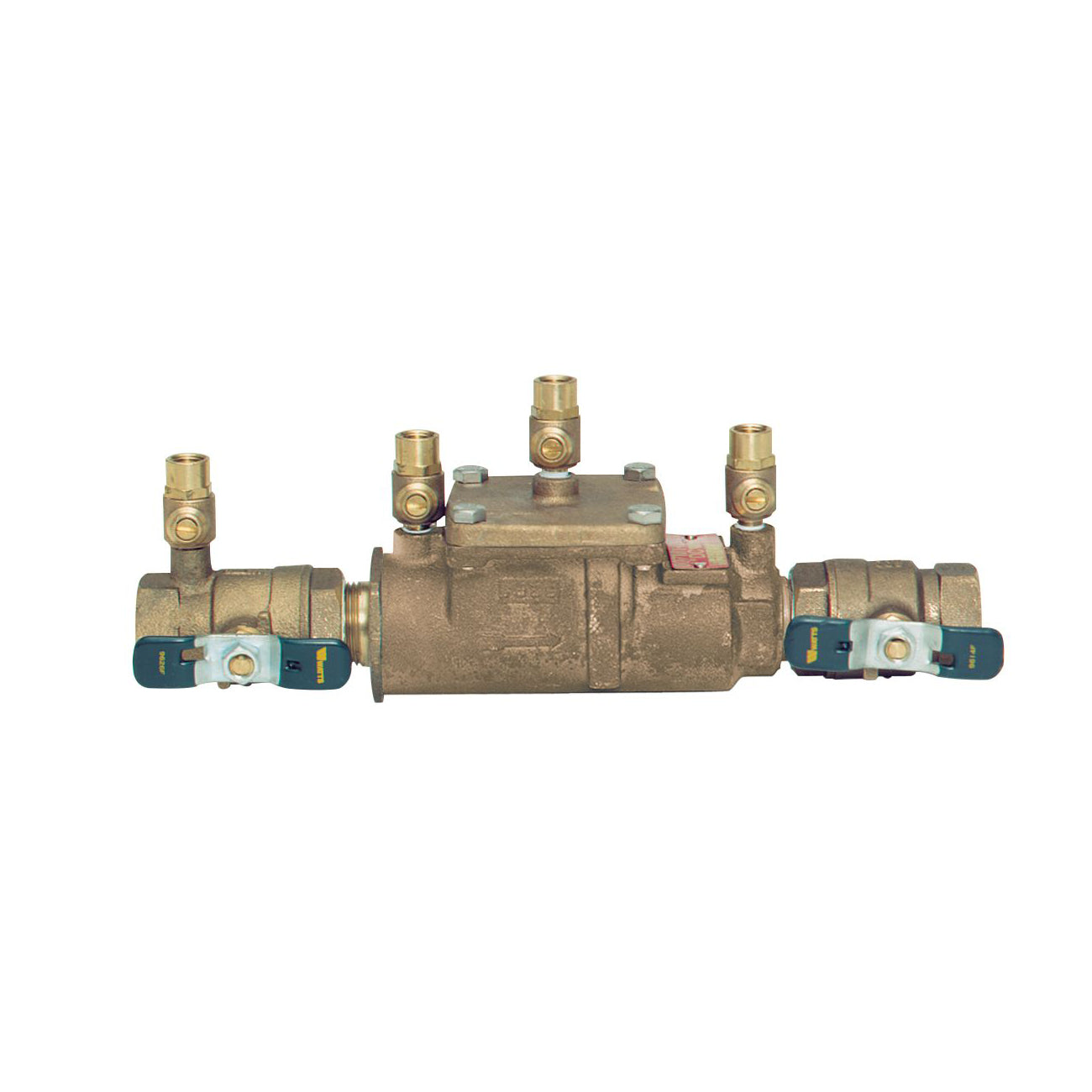

Watts 0122617 2 LF007M1-QT-S Double Check Valve Assembly

Product Description

The Watts Regulator Company 0122617 is a double check valve assembly designed to prevent backflow of contaminated water into the potable water supply. It meets national plumbing codes and authority requirements. This model, part of the LF007 series, features a 2-inch nominal size, operates under a pressure rating of 175 psi, and functions effectively in temperatures ranging from thirty-three to one hundred eighty degrees Fahrenheit.

• Lead-free construction for safe drinking water
• Modular design for easy maintenance
• Built-in strainer to enhance performance

Product Highlights

This assembly is ideal for continuous pressure piping applications. It is suitable for non-health hazards at service line entrances and cross-connections. Features such as the quarter-turn ball valve provide reliable operation.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Series: LF007

Technical Specifications

• Nominal Size: 2 in
• Pressure Rating: 175 psi
• Body Material: Cast Copper Silicon Alloy
• Finish: Fused Epoxy Coated
• Dimensions: 27-1/4 in L
• Temperature Rating: 33 to 180 deg F
• Valve Type: Quarter-Turn Ball Valve
• Domestic/Import: Domestic
