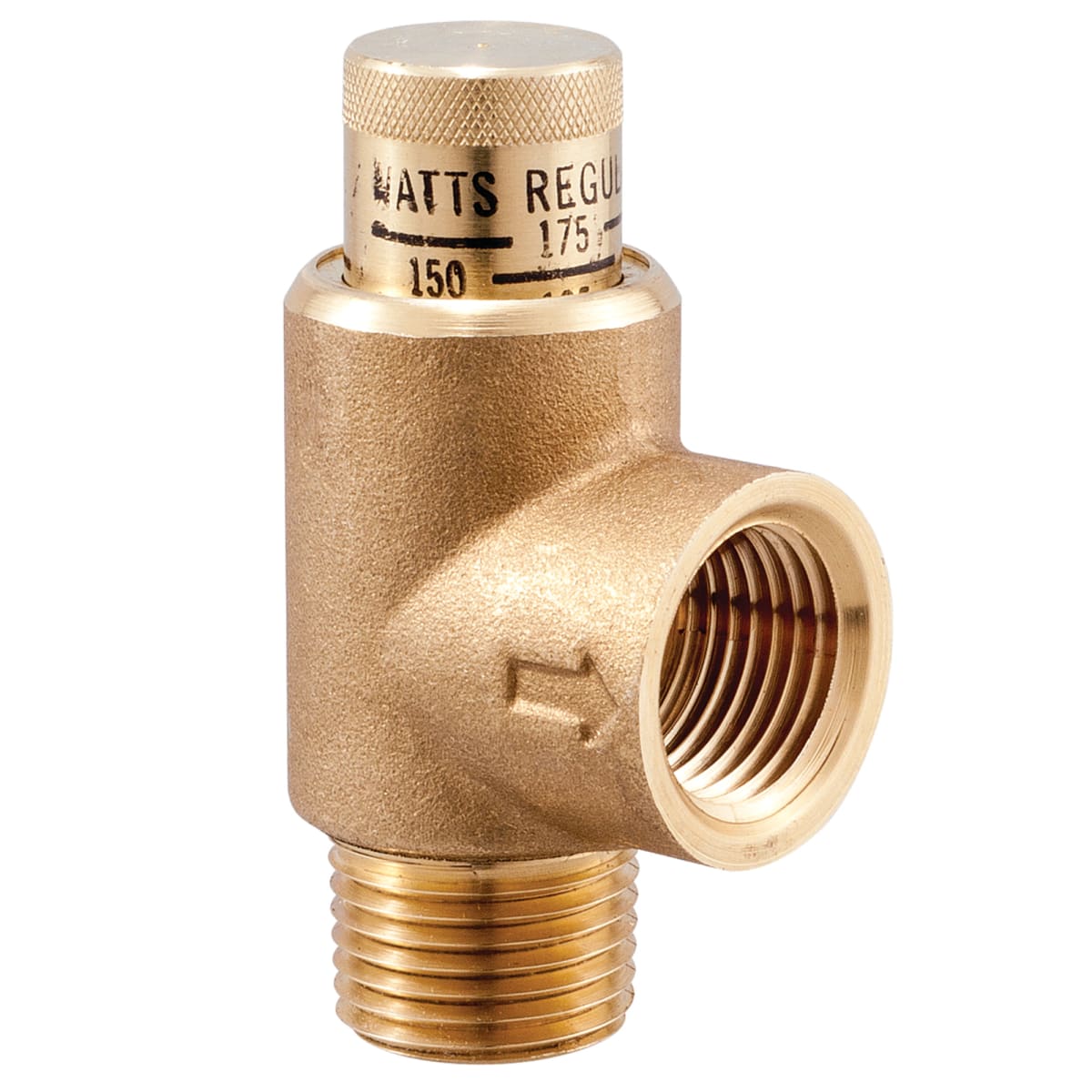

Watts 0121626 3/4 LF530-C100-300 Pressure Relief Valve Replacement MPN

Product Description

The Watts 0121626 is a pressure relief valve designed to protect against excessive pressure in various systems. This valve features a calibrated adjustment for setting pressure levels between 100 and 300 psi. It is suitable for both residential and commercial use and can handle temperatures up to 180 degrees Fahrenheit. The valve is constructed from lead-free brass and includes a Buna-N trim for durability.

• Pressure range adjustable from 100 to 300 psi
• Buna-N trim and brass body
• Ideal for water, oil, and air systems

Product Highlights

This product provides reliable performance in managing pressure in piping systems.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• Model Number: 0121626

Technical Specifications

• Connection Type: MNPT x FNPT
• Nominal Size: 3/4 in
• Pressure Rating: 100-300 psi
• Temperature Rating: 180 deg F
• Body Material: Brass
• Actuator Type: Spring-Loaded Latch-Lock Handle
• Dimensions: 1-5/8 in W x 3 in H
• Trim Material: Buna-N
