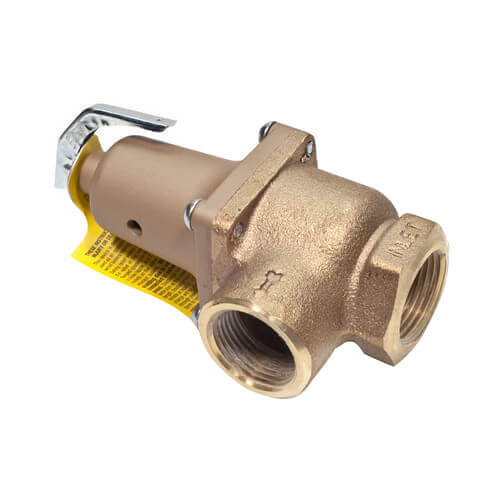

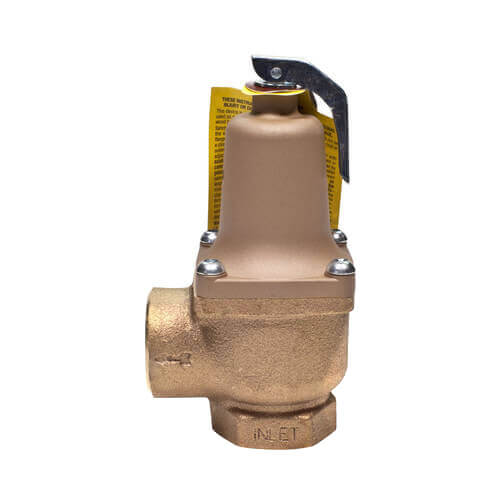

Watts 0121524 1 1/4 LF174A-125 Pressure Relief Valve

Product Description

The Watts Regulator Company 0121524 is a pressure relief valve designed for use in hot water heating systems. This valve helps protect against excessive pressure and is ideal for all types of hot water heating applications. Constructed with a robust cast copper silicon alloy body, it features a nominal size of one and one-quarter inches and is rated for a pressure of 125 psi.

• Automatic reseating feature
• Non-mechanical seat-to-disc alignment to prevent sticking
• Meets ASME Section IV standards

Product Highlights

This valve offers effective thermal expansion control in hot water systems, discharging water safely when pressure exceeds limits.

Product Information

Standard Information

• Manufacturer: Watts Regulator Company
• UPC: 098268586268

Technical Specifications

• Body Material: Cast Copper Silicon Alloy
• Dimensions: 4-1/4 inches L x 8-1/2 inches H
• Media: Water
• Nominal Size: 1-1/4 inches
• Pressure Rating: 125 psi
• Temperature Rating: 250 degrees F
• Series: LF174A
• Domestic/Import: Domestic
