Watts 0121346 Series LF100XL 3/4 in. Copper Silicon Alloy MNPT x FNPT 125# 210 Relief Valve

Product Description

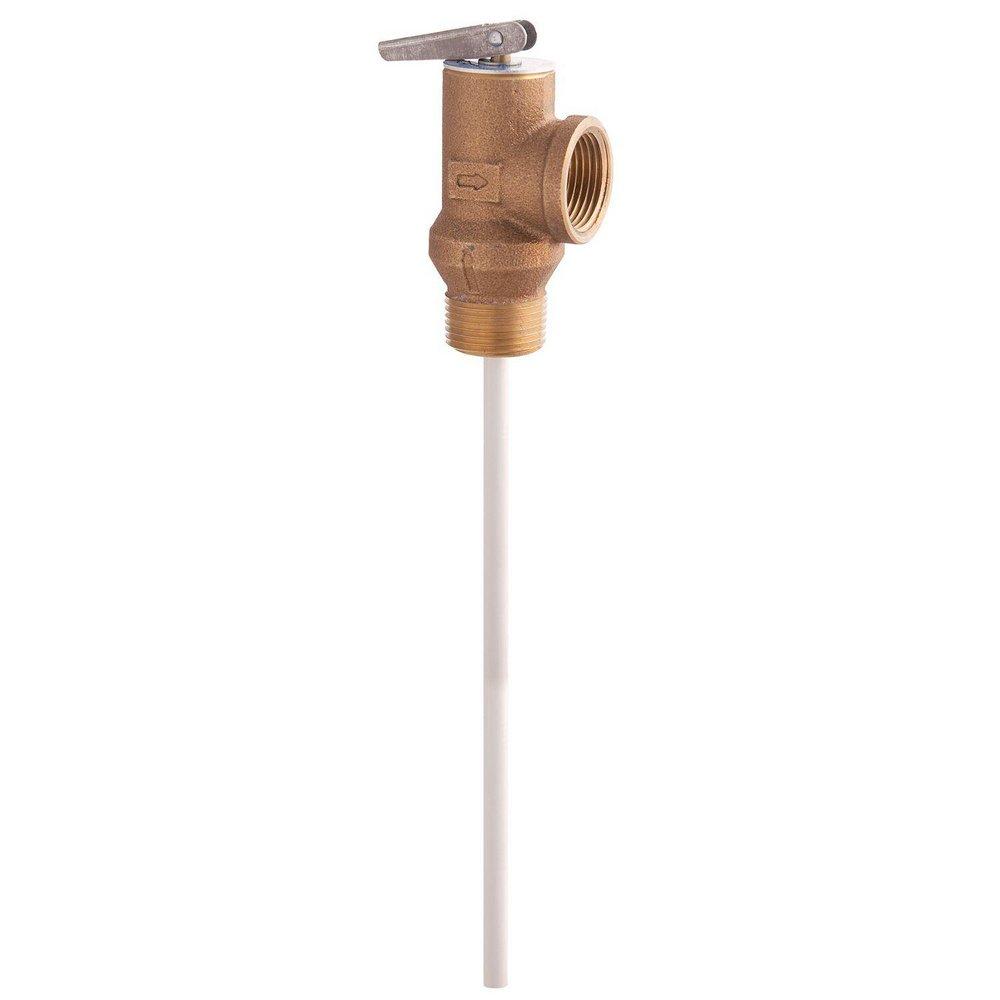

The Watts 0121346 Series LF100XL Relief Valve offers top-grade protection for hot water supply systems. This 3/4 inch relief valve is designed to address both temperature and pressure concerns in water heaters and tanks. It features a lead-free copper alloy body, male NPT inlet, and female NPT outlet connections. The valve ensures safety by activating when the temperature reaches 210 degrees Fahrenheit or the pressure exceeds 125 psi.

• 8 inch thermostat with special thermo-bonded coating
• Lead-free copper alloy body
• ASME rated and CSA listed

Product Highlights

This two-in-one relief valve is suitable for hot water heaters and supply tanks. It provides a reliable safety mechanism by triggering under excessive temperature or pressure conditions. With a special 8 inch thermo-bonded coated thermostat and easy-to-use test lever, this valve guarantees optimal functionality.

Product Information

Standard Information

• Brand: Watts
• Model: Series LF100XL
• MPN: 0121346

Technical Specifications

• Size: 3/4 inches
• Material: Lead-Free Copper Alloy
• Inlet Type: MNPT
• Outlet Type: FNPT
• Pressure Set Point: 125 psi
• Temperature Limit: 210 degrees Fahrenheit
• Thermostat Length: 8 inches
• Weight: 0.666 pounds
